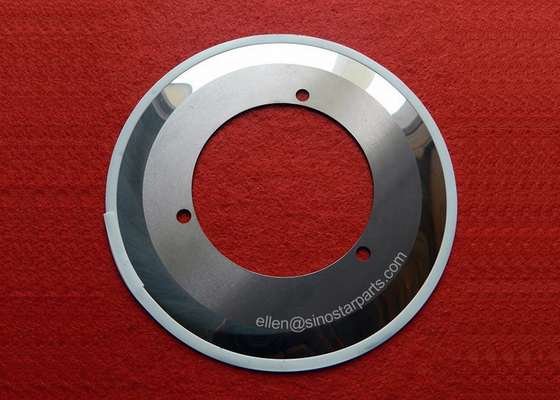

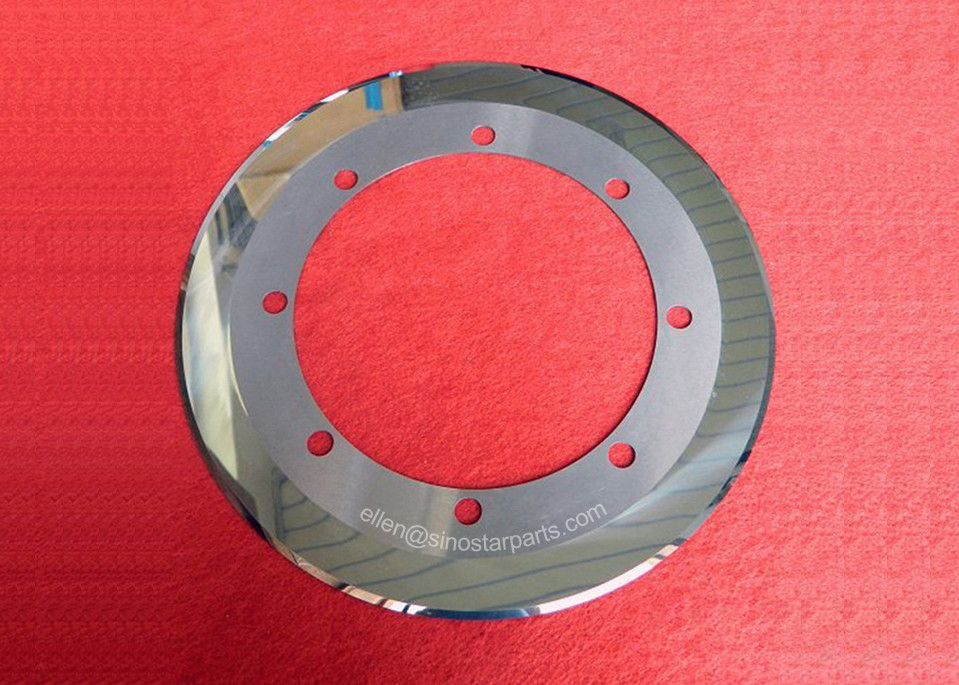

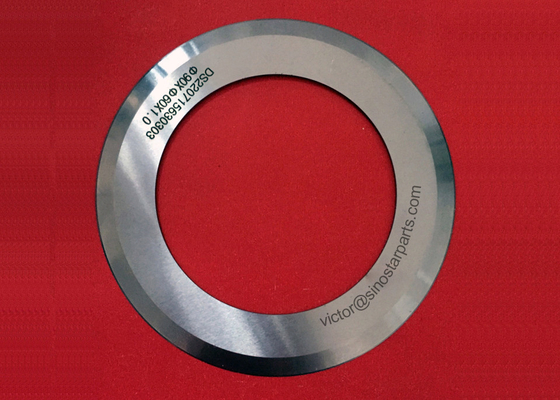

corrugated cardboard cutting tungsten carbide round slitter knife

corrugated cardboard cutting tungsten carbide round slitter knife

    • corrugated cardboard cutting tungsten carbide round slitter knife
    • corrugated cardboard cutting tungsten carbide round slitter knife
    • corrugated cardboard cutting tungsten carbide round slitter knife
  • corrugated cardboard cutting tungsten carbide round slitter knife

    Product Details:

    Place of Origin: Anhui,China
    Brand Name: Sinostar
    Certification: ISO9001:2000
    Model Number: slitter knife

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: $ 45-135 /piece
    Packaging Details: Standard export packing with wooden case
    Delivery Time: Whithin 20 days
    Payment Terms: T/T,L/C,Western Union
    Supply Ability: 20000 pcs per month
    Contact Now
    Detailed Product Description
    Material: M2 (HSS), D2, TCT,etc. Dimension: Custom
    Edge Trimming: Numerical Control Grinding Precision: ±0.003mm
    Hardness: HRC 40~68 Sharpness: 18N~30N
    Application: Corrugated Carton Circular Slitting Machine

    Corrugated cardboard cutting tungsten carbide round slitter knife

    corrugated cardboard cutting tungsten carbide round slitter knife

    corrugated cardboard cutting tungsten carbide round slitter knife

    corrugated cardboard cutting tungsten carbide round slitter knife

    Parameters of slitter knife

    Material M2 (HSS)
    Design Solid carbide,single edge carbide tipped.
    Shape Circular (Round).
    Dimension OD: 100mm, ID:22mm, Thickness:0.6mm.
    OD tolerance ± 0.01 mm.
    ID tolerance ± 0.03 mm.
    Free Sample According to the different type.
    Develivery time Within 5-10 days for sample
    OEM & ODM service Acceptable.



    Corrugated Cardboard Thin Blades Specifications
    Specification(mm) Out diameter Inner diameter Thickness
    φ200*φ122*1.3 200 122 1.3
    φ210*φ122*1.3 210 122 1.3
    φ230*φ110*1.3 230 110 1.3
    φ230*φ130*1.3 230 130 1.3
    φ240*φ32*1.2 240 32 1.2
    φ240*φ32*1.2 240 32 1.2
    φ250*φ105*1.35 250 105 1.35
    φ250*φ130*1.35 250 130 1.35
    φ260*φ112*1.4 260 112 1.4
    φ260*φ114*1.35 260 114 1.35
    φ260*φ158*1.35(hole) 260 158 1.35
    φ260*φ158*1.35(non-hole) 260 158 1.35
    φ260*φ168.3*1.5 260 168.3 1.5
    φ270*φ168.3*1.5 270 168.3 1.5
    φ280*φ168*1.4 280 168 1.4
    φ280*φ202*1.4 280 202 1.4
    φ300*φ112*1.35 300 112 1.35



    Features & Benefits

    • 10 production processes to go through for every individual knife.
    • Assuring the ultimate in life time.
    • Lower yearly knife consumption costs.
    • Triple tempered to retain the hardness while toughness kept.
    • Strictly quality control for excellent valve.
    • High precision, high intensity, excellent hardness,small thermal deformation.
    • Matched to their applications.
    • Intregrated output increase.
    • Reduce unsurpassed edge quality.
    • Reward customers with high Productivity.

    Applications of our blades and knives
    • Paper industry.
    • Wood industry.
    • Metal industry.
    • Plastic,rubber,film,foil,fiber glass cutting.

    Product introduction of slitter knife

    Slitter knives are made of ultra fine grained microstructure for the keenest edge. Even at high speed operation, high shear

    strength and dimensionally accurate bevels enable excellent cut and burrfree razor sharp edges.We use only high quality

    solid steel and high speed steel in the manufacturing of our slitter knives to accrue greater consistency and stable cutting.

    To meet your demand of wide variety material cutting, we offer large variety of material.Ensure longer lifespan of the knives,

    they are made from precision grade materials, such as high speed steel and metal alloys.For greater consistency and stable cutting, they are optimally heat treated and precision grounded. Increase your machines' performance.
