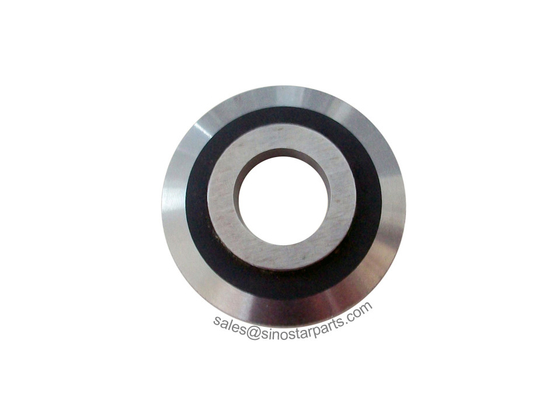

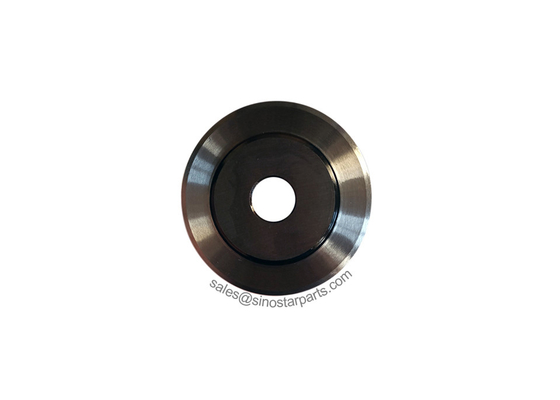

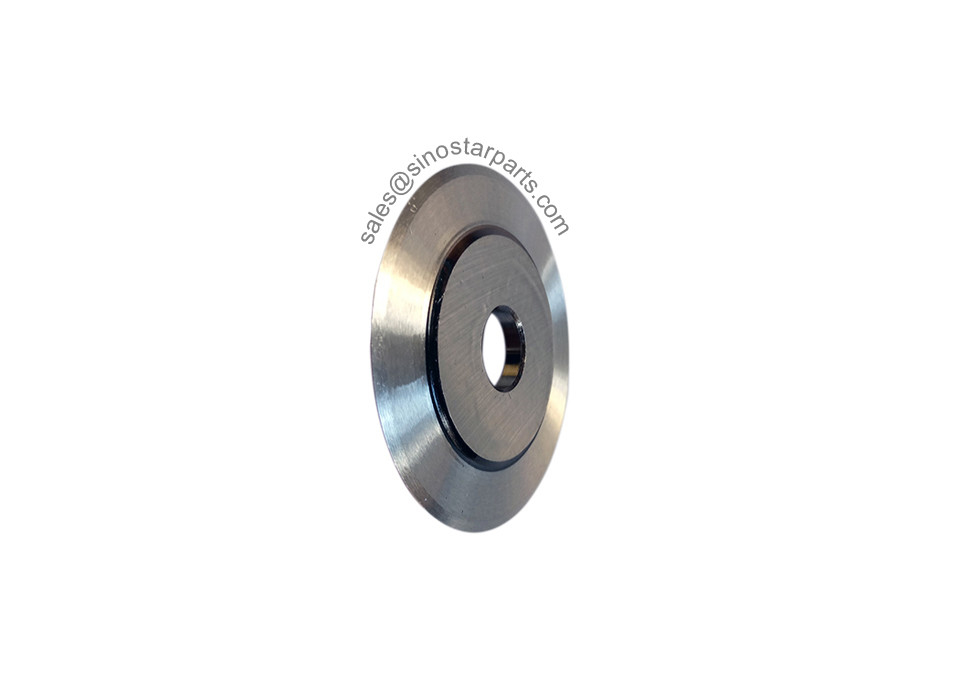

paper pipe cutting slitting machine round pneumatic slitter knife

paper pipe cutting slitting machine round pneumatic slitter knife

    • paper pipe cutting slitting machine round pneumatic slitter knife
    • paper pipe cutting slitting machine round pneumatic slitter knife
    • paper pipe cutting slitting machine round pneumatic slitter knife
  • paper pipe cutting slitting machine round pneumatic slitter knife

    Product Details:

    Place of Origin: Anhui, Maanshan, China.
    Brand Name: Sinostar
    Certification: ISO9001
    Model Number: pneumatic slitter knife

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs.
    Price: USD 9.5-25 per piece.
    Packaging Details: Standard packing with anti-rust oil ,plastic bag, packed in wooden case.
    Delivery Time: 5-8 work days after payment.
    Payment Terms: L/C, T/T, Western Union, MoneyGram.
    Supply Ability: 20000pcs per month.
    Contact Now
    Detailed Product Description
    Features: High Toughness, High Wear Resistance. Material: Tungsten Carbide, High Alloy Stee , D2, H13, Etc.
    Size: As Per Confirmed Drawing. Application: Paper Pipe Score Cutting.

    Paper pipe cutting slitting machine round pneumatic slitter knife

    paper pipe cutting slitting machine round pneumatic slitter knife

    paper pipe cutting slitting machine round pneumatic slitter knife

    paper pipe cutting slitting machine round pneumatic slitter knife

    The score cut slitter knife is a commonly used for crush cutting paper, film and foil products as well as non-woven products. These knives are manufactured from many steel types. We manufacture custom blades and related tooling for the above and many other industries. We can support your cutting or converting application with the highest quality,China made products delivered in a timely manner.



    Material optional
    1.High Carbon stee

    2.High speed steel

    3.Special alloy
    4.Diamond
    5.Stainless steel
    6.Tool steel
    7.Tungsten Carbide
    8.SKD11,Cr12Mov, etc.



    Pneumatic slitter knife parameter sheet

    score slitter knife
    Specifications
    (mm)
    OD
    (mm)
    ID
    (mm)
    Thickness
    (mm)
    75 x 19 x 2/6 75 19 2/6
    76 x 17 x 2/5 76 17 2/5
    76 x 19 x 3/6 76 19 3/6
    76 x 22 x 3/6 76 22 3/6
    76 x 25.4 x 1.2 76 25.4 1.2
    76 x 26 x 2 76 26 2
    95 x 55 x 2 95 55 2
    92 x 25 x 4 92 25 4
    108 x32 x 2 108 32 2



    Features and Benefits

    • 10 production processes to go through for every individual knife.
    • Assuring the ultimate in life time.
    • Lower yearly knife consumption costs.
    • Triple tempered to retain the hardness while toughness kept.
    • Strictly quality control for excellent valve.
    • High precision, high intensity, excellent hardness,small thermal deformation.
    • Matched to their applications.
    • Intregrated output increase.
    • Reduce unsurpassed edge quality.
    • Reward customers with high Productivity.

    Main applications of our blades and knives

    • Paper industry
    • Printing industry
    • Wood industry
    • Metal industry
    • Textile industry
    • Plastic,rubber,film,foil,fiber glass cutting.

    Our service

    • Individual design of tooling system with harsle optional solutions for special slitter-tooling, designed for your applications.
    • Analysis and solutions for shear problem. For example, burr and crack. We know the real problem and how to solve it.
    • Inspection for machines.We can provide technical service from our engineer to assist you in realizing a high quality output.
    • We can make the drawing for you according to your description.
    • We can recommend the best material and hardness according to your application.
    • Samples accepted.
    • If any failure caused by us, we will reproduce new blades for you for free.

    About us

    Maanshan Sinostar Industrial Co.,Ltd specialized in all kinds of blades and knives, especially for slitter knives, paper cutting knives, shear knife, special-shaped knife, alloy blade, paper-knife, circular knife, cutting knife, cut-off knife, crushing knife, serrated knife, rotary cutting knife, sealing cutting knife, packaging machine blades, printing machine doctor blades, etc.
