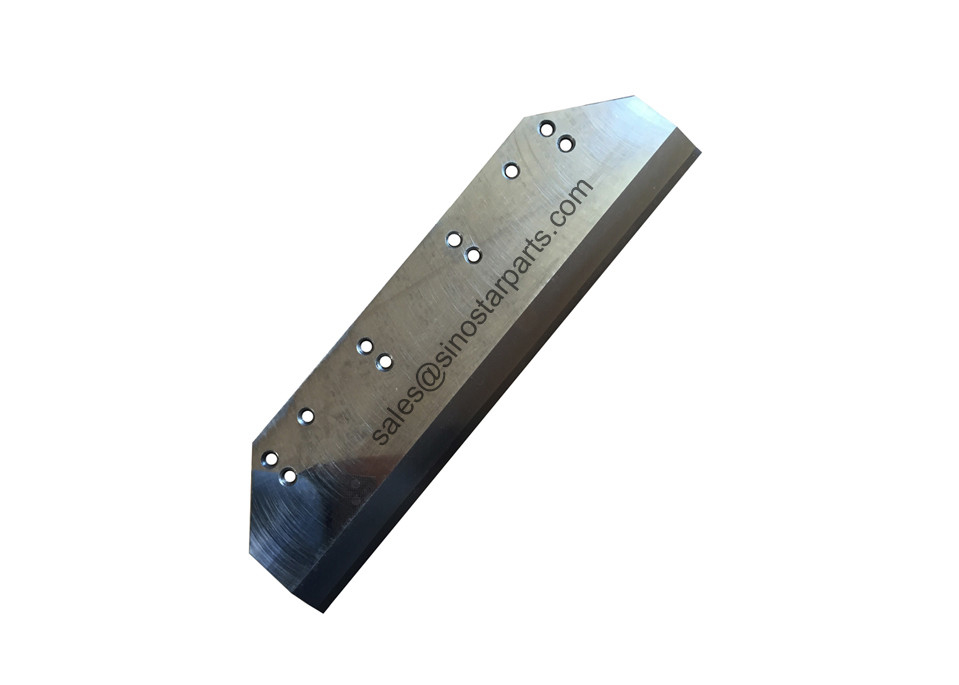

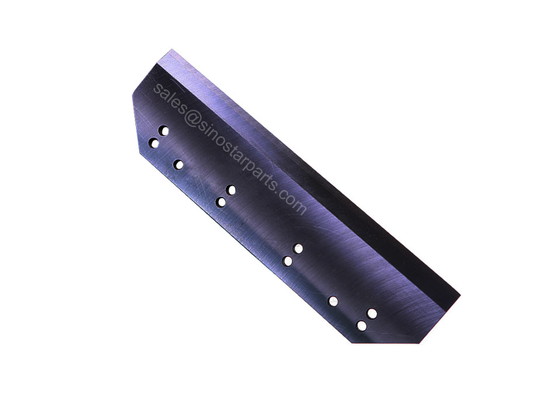

paper cutting tungsten carbide burr free three side trimmer knife

paper cutting tungsten carbide burr free three side trimmer knife

    • paper cutting tungsten carbide burr free three side trimmer knife
    • paper cutting tungsten carbide burr free three side trimmer knife
    • paper cutting tungsten carbide burr free three side trimmer knife
  • paper cutting tungsten carbide burr free three side trimmer knife

    Product Details:

    Place of Origin: Maanshan,China.
    Brand Name: Sinostar
    Certification: ISO9001:2000
    Model Number: three side trimmer knife

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: $ 45-150 /piece
    Packaging Details: Export standard packing with wooden case
    Delivery Time: 25-30 days
    Payment Terms: T/T, L/C, or Paypal
    Supply Ability: 1000 pcs per month
    Contact Now
    Detailed Product Description
    Material: HSS, SKD11, Tungsten Carbide, Etc. Dimension: 500x115x10mm
    Parallelism Tolerances: Within 0.003mm Hardness: HRC40~68 Degree
    Merits: High Precession,Good Wear-resistance Application: Paper Cutting.

    Paper cutting tungsten carbide burr free three side trimmer knife

    paper cutting tungsten carbide burr free three side trimmer knife

    paper cutting tungsten carbide burr free three side trimmer knife

    paper cutting tungsten carbide burr free three side trimmer knife

    paper cutting tungsten carbide burr free three side trimmer knife



    Three side trimmer knife parameter

    Dimention(mm) Length(mm) Width(mm) Thickness(mm)
    80 x 32 x 15 80 32 15
    405 x 110 x 10 405 110 10
    500 x 115 x 10 500 115 10
    550 x 95/65 x 8 500 95/65 8
    (Note:other special size and shape can be customized,please provide drawing. )

    Advantage of three side trimmer knife

    1. High tolerance finishing, super finished bevels.( Hardness: 60-65HRC.)

    2. Burr-free, mirrored surface, high quality guaranteed.

    3.Heat treatment ensure the excellent cutting longevity,high cutting speed.

    4. Manufacturing design with factory price.

    5.Good packing,short delivery time.



    Application of trhree side trimmer knife

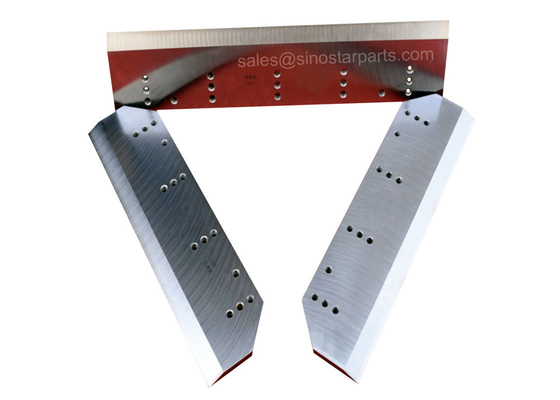

    Three-side trimming knives are used to cut the three side of printed books according to the book size.That's say, it's three knives.the front knife are fixed,but the two side knives can be adjusted .



    Product introduction for three side trimmer knife

    Trimmerknives are employed in book binding and publishing industries. We only use high quality

    steels from Europe. With our higher precision cutting without time consuming adjustments, it cuts

    material highly efficient even when working with large quantites. Our trimmer knives are the key to

    reducing drag, draw and dust in your printing equipments.



    Paper cutter blade is one of the important components of paper cutter, manual paper cutter, electric paper cutter, automatic paper cutter, CNC cutter blade, toilet paperand household paper cutter blade are widely used in papermaking and printing industry.Paper cutter blade used in papermaking, printing and other industries, the blade sharpness and work life, greatly affect the working efficiency of the cutter.



    Announcements:

    1:The material

    Many designs available,and different materials selected.

    Normal material will use:01 SKS31, W18cRv, SKH2, 6CrW2Si,9Cr Si,H13,Cr12MoV,SLD(7 Cr7Mo3V2Si),etc.Single piece of paper cutter blade is the blade and blade welding on high temperature and be become, the blade material for high speed steel, the blade is made of low carbon steel.The hardness of the blade of the cutter blade determines the durability, high quality paper cutter blade, hardness HRC58 ~ 60 after heat treatment.



    2: The angle of the grinding

    One-side paper cutter blade is single blade blade, blade grinding blade Angle in < 19 ° ~ 23 °.The shape of grinding blade makes the blade used in cutting bevel face under the pressure of horn of edge of the paper, the edge of blade was quickly wear. Double-edged sword blade wearability, blade can reduce paper cutter grinding load, and improve the precision of paper cutting.Under the condition of the cutter blade material good, considering the resistance to shear cutting paper size, grinding blade Angle as far as possible should be less than < 19 ° ~ 23 °.



    3: The quality of the grinding

    When grinding the blade, the higher the degree of finish of the grinding, cutting resistance is smaller, the longer the service life of the cutter blade, cutting quality, the better.



    4: The type of paper cutting

    In paper cutter cutting work, the speed of the cutter blade edge passivation and cut paper soft hard. Paper cutter cutting paper texture, ash content of the paper, the blade passivated fast, especially the number of cutting various gork coated paper. The cutter blade is use effect and life, in the use of automatic paper cutter, CNC cutter, program-controlled paper cutter, paper cutter, pay attention to job skills can improve the efficiency and work

    life of the cutter blade.

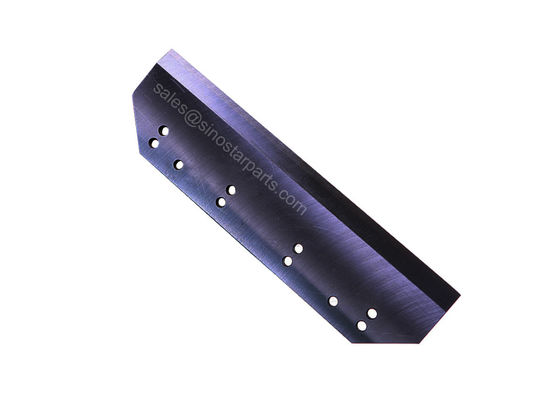

    paper cutting tungsten carbide burr free three side trimmer knife
