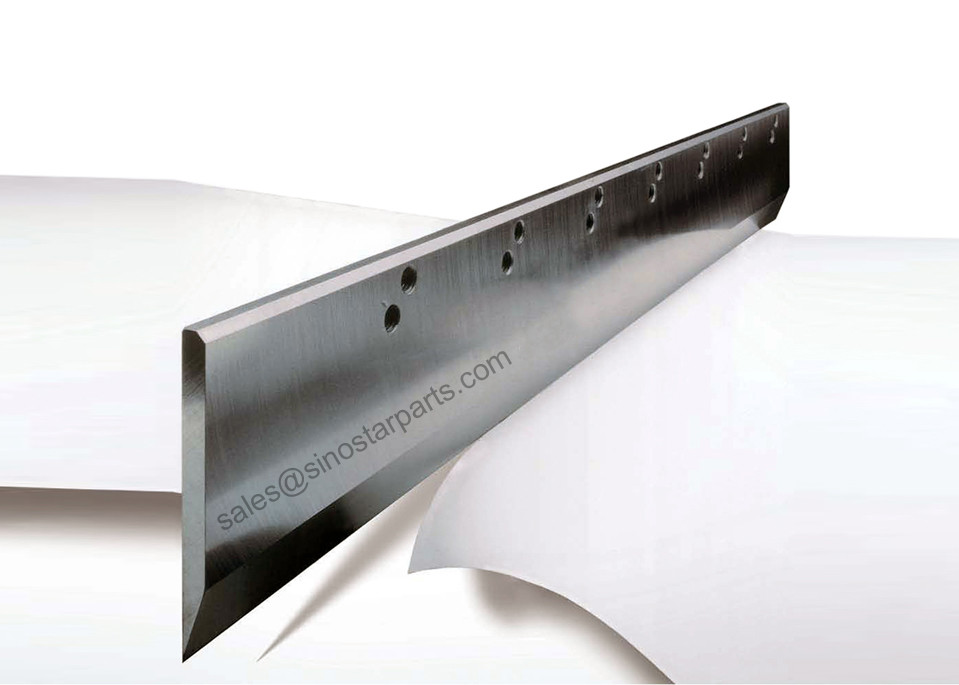

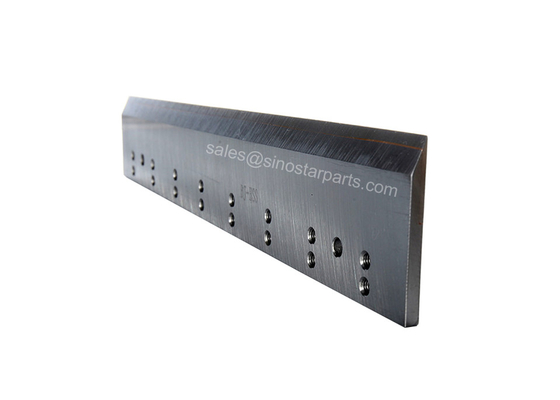

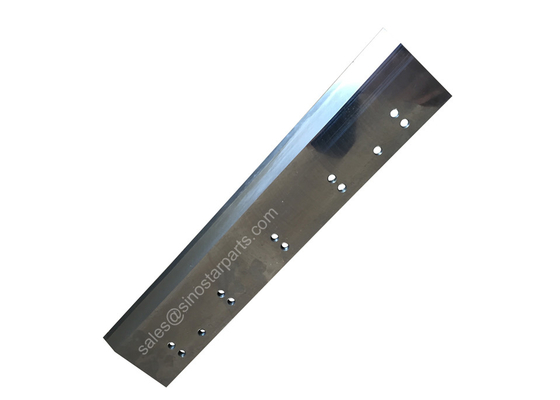

high speed steel inlay polar paper cutting machine guillotine knife

high speed steel inlay polar paper cutting machine guillotine knife

    • high speed steel inlay polar paper cutting machine guillotine knife
    • high speed steel inlay polar paper cutting machine guillotine knife
    • high speed steel inlay polar paper cutting machine guillotine knife
  • high speed steel inlay polar paper cutting machine guillotine knife

    Product Details:

    Place of Origin: Maanshan,China.
    Brand Name: Sinostar
    Certification: ISO9001:2000
    Model Number: polar paper cutting knife

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: $65-150 /piece
    Packaging Details: Export standard packing with wooden case
    Delivery Time: 25-30 days
    Payment Terms: T/T, L/C, or Paypal
    Supply Ability: 1000 pcs per month
    Contact Now
    Detailed Product Description
    Material: HSS, SKD11, Tungsten Carbide, Etc. Dimension: 500x115x10mm
    Parallelism Tolerances: Within 0.003mm Hardness: HRC40~68 Degree
    Merits: High Precession,Good Wear-resistance Application: Paper Cutting.

    High speed steel inlay polar paper cutting machine guillotine knife

    high speed steel inlay polar paper cutting machine guillotine knife

    high speed steel inlay polar paper cutting machine guillotine knife

    high speed steel inlay polar paper cutting machine guillotine knife

    Dimension sheet

    polar paper cutting knife
    Machine type Size of knives Net weight per piece
    polar58 715x95x9.7mm 5.2kgs
    polar66 805x95x9.7mm 5.8kgs
    polar72 868x104x9.7mm 6.9kgs
    polar76 925x110x9.7mm 7.8kgs
    polar78 960x110x11.7mm 9.7kgs
    polar80 990x107x9.7mm 8.1kgs
    polar82 990x107x11.7mm 10kgs
    polar90 1080x115x11.7mm 11.4kgs
    polar92 1095x115x11.7mm 11.6kgs
    polar105 1325x120x11.95mm 15kgs
    polar115 1390x160x13.75mm 24kgs
    polar137 1605x160x13.75mm 27.8kgs
    polar155 1785x160x13.75mm 30.85kgs


    According to your application ,we will recommend you the best material and hardness.

    Optional Materials :9CrSi , 6CrW2Si , LD , D2 , Cr12MoV , H13 , G1, G2 ,G3 and etc .We developed some high alloy steel ,like G1,G2,G3 etc. They are new materials developed independently by our company and excellent in high intensity, high hardness , high wear resistance , high toughness and so on.They can be used in both cold and hot shearing ,the life is 2-3 times longer than other blades made of normal materials.

    Hardness : If hardness is high , when the blades meet higher tensile strength steel ,it is easy to crack. If the hardness is low , then the wear resistance is not good ,that means work life is shorter .



    Features and Benefits

    • Trying our best to do anythings just for the first time.
    • Excellent cutting quality,stable and reliable cutting performance.
    • High precision,high intensity.
    • Excellent hardness,small thermal deformation.
    • Lower yearly knife consumption costs.
    • Excellent service and Technical supports.

    Main applications of our blades and knives

    • Paper industry.
    • Wood industry.
    • Metal industry.
    • Textile industry.
    • Plastic,rubber,film,foil,fiber glass cutting.

    Key Performance Indicator

    • Suite material selection.
    • Good price and offering.
    • Advance cutting technology.
    • Production cost optimized.
    • Stock & Inventory efficiency.

    Standard Revolution of Knives

    • Life time of knives.
    • Property cuttings.
    • Product quality.
    • Process check and survey reports.
    • Maintenance procedure.

    Before using knives

    • Check the existing package.
    • Check the number, specification, operation and trouble-shooting.
    • Understanding of our technical & products.

    Packing way

    A. Inside packing: Applied with anti-rust oil and then packed in plastic bag.

    B. Outside packing: Packed in plywood case.

    Our Commitments

    • Good technical & knowhow support.
    • Fast & Flexible responsibility.
    • Business partnership together.
    • Better engineering get the best proven.
