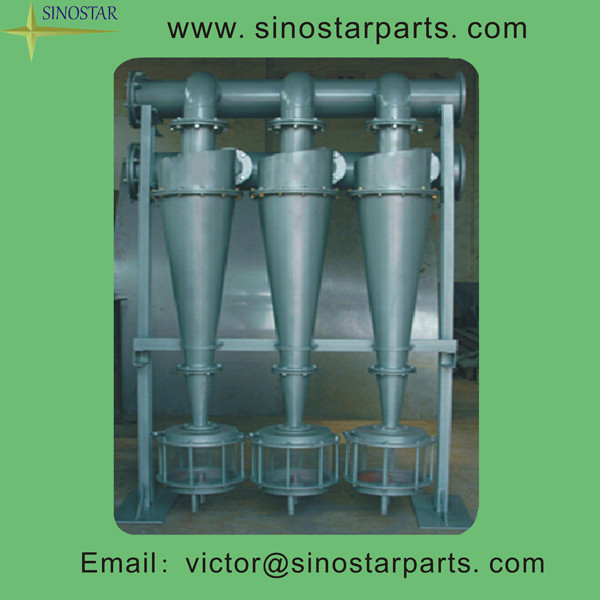

Waste Paper Recycling Hi-Density Cleaner

Waste Paper Recycling Hi-Density Cleaner

Waste Paper Recycling Hi-Density Cleaner

Product Details:

Place of Origin: Maanshan
Brand Name: Sinostar
Certification: ISO9001:2000
Model Number: High Density Cleaner

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: get latest prices
Packaging Details: wooden case
Delivery Time: 20 days
Payment Terms: TT or LC
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description



Application
Efficient removal of contaminants like sand, glass, chips, pins etc. from the pulp stock.

Working Principles

The tangential inlet accelerates the stock to downward centrifugal motion. Due to centrifugal rotation of the rotor,

the Impurities with high specific gravity are forced to the outer wall of cone and downward to collect in a trap.

The cleaned stock is discharged from the cleaner through a central discharge pipe from the bottom side.

The timer controlled pneumatic valves operate automatically discharging the dirt from the dirt vessel. The dirt

vessel is provided with connections for flushing water for fiber saving. The water flow rate is adjusted by the

valves so that the fiber loss is insignificant.



Technical Specifications:
Through put range: 400 to 3000 LPM Working consistency: 2.5 to 3.5% * Parason hi-density cleaner can also be

installed before screening, de-inking & refining.

Waste Paper Recycling High Density Cleaner

Specification:

Pulp inlet capacity 700L/min
Pulp inlet pressure 0.2-0.35Mpa
Pulp inlet consistency 0.3-1.2%
Single stage heavy impurity
volume reject ratio
(relatively pulp in flow)
6-8%
Single stage light impurity
volume reject ratio
(relatively pulp in flow)
10-12%

Features:

This multi-function can apply in pulp cleaning system.It can remove both light and

heavy impurity such as mixed refuse, olefin, adhesive substance, plastic piece,

bubble, gas, sand stone, scrap iron etc.

Brief introduction:

Maanshan Sinostar Industry Co.,Ltd is an oriented enterprise which is specialized in

manufacturing and exporting paper machines.



We have a large scale of products regarding paper machinery, including:

A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure screen, screen basket, pulp pump etc.)

B.Paper machinery (Tissue/Toilet paper machine, Multifourdrinier pap machine, head box, cylinder mould,

dryer cylinder, roller etc.)

C.Paper making finished devices (Paper calender, pope reel,size press,paper rewinder etc.)

Meet customers' requirements and exceed customers' expects. We wish to found

long-term cooperation with your company.
