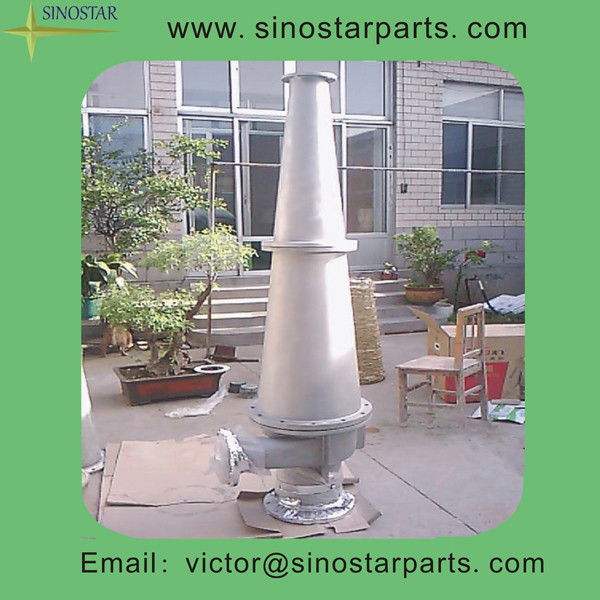

Paper Mill Pulping Equipment High Density Cleaner
ZSC series high(middle) consistency stuff cleaner can eliminate heavy impurities larger than Φ3mm in diameter from waste paper stock. As a coarse screening and cleaning equipment, it is usually a downstream equipment of hydrapulper. It can also be installed as an important equipment to protect the operation of down-stream processing equipments.
High density cleaner is used to remove heavy impurities,such as stapler nails,bolts,rocks and so on in raw pulp. Double cone and efficient high concentration Cleaner is advanced a variety of pulp purification equipment, especially the purification of waste paper pulp better, waste paper recycling indispensable key equipment. It uses different fibers and impurities in proportion, leaving the heavy impurities separated from the pulp to achieve the purpose of purifying pulp. The device uses a wide range, both for the high concentration of pulp the roughing purification can also be used in the machine before, and purifying selection of low concentrations of pulp.
Feature and Benefit :
1.simple structure, small footprint, large capacity, easy to operate
2.do not plug the slagging, and high purification efficiency
3.the pulp is only through the Cleaner, without tail plasma processing equipment
4.fiber loss is zero, cone wear, long life, no drive, no power, installed in the slurry transport process can be achieved deslagging effect
5.feeding pipe with a certain angle of inclination will form a strong force of vortex flow to stpareat the heavy impurity effectively.
6.cone body is adopted alumina wear resistant ceramic which ensures long useful time.
7.two-cone structure reduce fiber loss while raise heavy impurity separation efficiency.
8.controlled by PLC automatic system.
