Place of Origin: | Anhui high density cleaner |
Brand Name: | Sinostar |
Certification: | ISO9001:2000 |
Model Number: | high density cleaner |
Minimum Order Quantity: | 1set |
---|---|
Price: | 300 usd/set |
Packaging Details: | wood case |
Delivery Time: | 20 days |
Payment Terms: | TT or LC |
Supply Ability: | 300 sets/month |

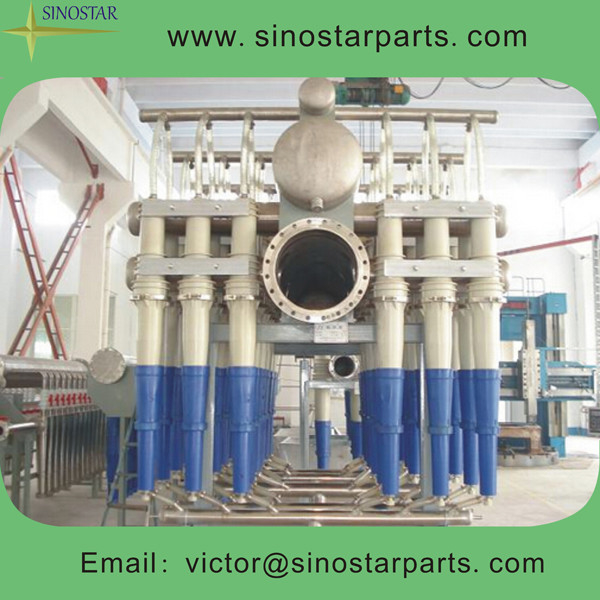

paper machine high density cleaner
Performance and Charac
1. Less fiber loss;
2. Low energy consumption, higher producing capacity;
3. Wearable and long usage life due to stainless steel materials was used on the top and ceramic or PU
materials was used on the bottom;
4. Closely remove dregs, easily management;
5. Assembled arrangement, saving area, and convenient to installation.
Main technical parameters
1. Feeding capacity:1800L/Min.
2. Accept:1500L/Min.
3. Heavy rejects:140L/Min.
4. Light rejects:160L/Min.
5. Input pressure:0.2~0.35MPa.
6. Input consistency:0.5~1.20%.
7. Max.temperature:80 degree.
Application:
Removing the light and heavy rejects at the same time Applied in:
1. Cleaning system for all virgin fiber material.
2. Cleaning for all waster paper stock.
3. Cleaning for approach flow system and pulping workshop.
Material and Structure:
1. The cleaner is consisted of cylinder body, top and bottom cone, exit of light and heavy rejects
and inlet and outlet etc with the cylinder body, inlet and outlet and top cone made of stainless steel,
bottom cone made of ceramic or PU, and the top cone is helix structure.
2. Frame and bus pipe are made of stainless steel or carbon steel.
