Place of Origin: | Anhui high impurity cleaner |
Brand Name: | Sinostar |
Certification: | ISO9001:2000 |
Model Number: | high density cleaner |
Minimum Order Quantity: | 1set |
---|---|
Price: | get latest prices |
Packaging Details: | wood case |
Delivery Time: | 20 days |
Payment Terms: | TT or LC |
Supply Ability: | 300 sets/month |

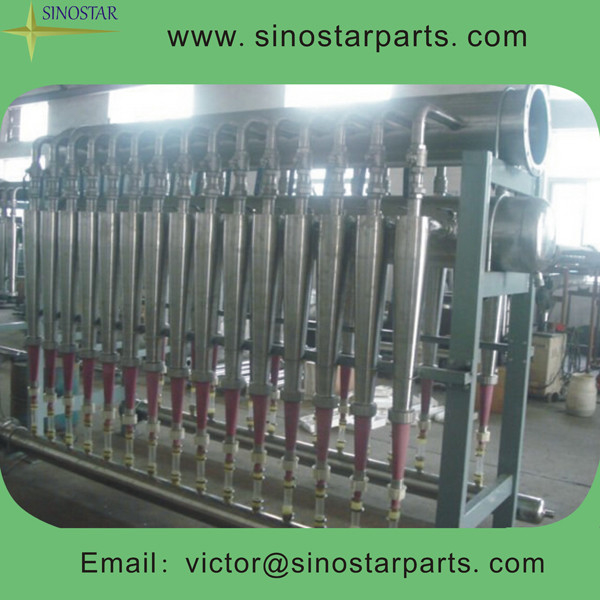

high efficient heavy impurity cleaner
A. Features and Benefits:
1. Excellent designing structure with high efficiency;
2. Less fiber loss;
3. Low energy consumption;
4. Wearable and long use life;
5. Convenient installation, maintenance and operation;
6. Compact structure and saving area.
B. Main technical parameters:
1. Capacity:600-800L/Min.
2. Input pressure:0.20-0.35MPa.
3. Accepted pressure:0.05-0.15MPa.
4. Input consistency:0.5-1.0%.
C.Application:
This heavy rejects cleaner is used for getting rid of small heavy rejects in the pulp.
1. Cleaning of Chemical pulp mechanical pulp and chemmechanical pulp.
2. Deinking line for CONP, AONP AND EONP.
3. Recycled pulp line for COCC and AOCC.
4. Deinking line for ONP and OMG.
5. Recycled pulp line for MOW and SOP.
6. Purification system of stock before paper machine.
D.Structure and assembling
1. The cleaner is consisted of cylinder body, top cone, bottom cone and mouth of rejecting
with top cone made of stainless steel and bottom cone and mouth made of ceramic or PU.
2. Three arrangements
Single or double line or complex arrangement; Frame and bus pipe are made of stainless steel or carbon steel.
Technical Data |
|||
Model |
SINO-400 |
SINO-600 |
SINO-1000 |
Throughput (L/min) |
400 |
600 |
1000 |
Inlet pressure (K pa) |
Max.400 |
||
Pressure drop (K Pa) |
150-180 |
||
Accept pressure K Pa |
Minimum 30 |
||
Consistency |
Max.1.2% |
Max.1.4% |
Max.1.4% |
