Place of Origin: | China centricleaner supplier |
Brand Name: | Sinostar |
Certification: | ISO9001:2000 |
Model Number: | High Density Cleaner |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiation |
Packaging Details: | wooden case |
Delivery Time: | 20 days after down payment |
Payment Terms: | T/T or L/C |
Supply Ability: | 150 sets per month |
Material: | Stainless Steel | Condition: | New |
---|---|---|---|
Type: | Paper Pulp Machine Equipment | Color: | Green |
Application: | Waste Paper Recycling Equipment |

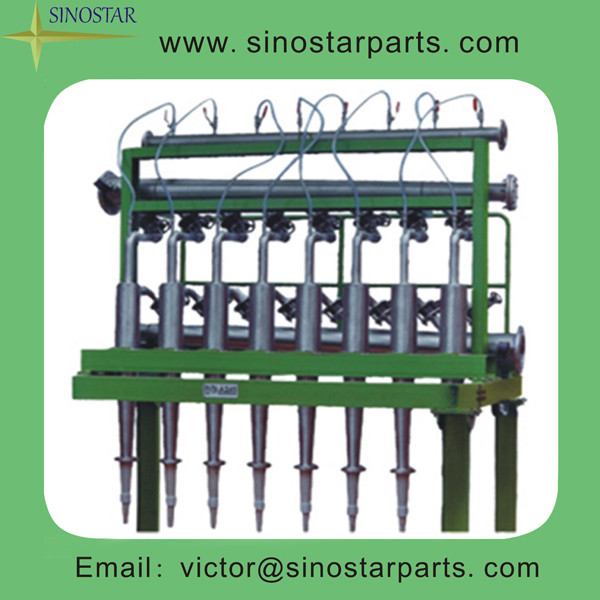

Centricleaners |
|
Applicaton
Parason Centricleaners are designed to remove air, dirt, shives and specks from pulp stock efficiently and economically
its smooth internal surface and small diameter ensure outstanding performance.
Working Principle
Pulp stock at 0.5 to 1.0% consistency enters the tangential inlet which accelerates the stock to downward centrifugal
motion. Contaminants like dirt, shive and specks with high specific gravity are forced to outer wall of cone and downward
through reject outlet orifice. Rejects are collected in a tank which is again fed to the 2nd stage of cleaning.
The cleaned pulp stock rises through center of bottle toward the accept outlet
Technical Specification
Operating consistency % -05 to 1.0%
- 0.5 to 1.0% Position - Applicable for pulp mill and approach flow system Throughput - 500 ipm to 1000 ipm
