cxw25358 two and a half layer forming fabric

cxw25358 two and a half layer forming fabric

cxw25358 two and a half layer forming fabric

Product Details:

Place of Origin: Anhui,China
Brand Name: Sinostar
Certification: ISO9001:2000,SGS.
Model Number: Forming fabric:cxw25358

Payment & Shipping Terms:

Minimum Order Quantity: 100 square meters
Price: 11-27 usd / square meters
Packaging Details: plastic bag inside and wooden crate outside
Delivery Time: 25 days according to your QTY
Payment Terms: T/T or L/C
Supply Ability: 6000 square meters
Contact Now
Detailed Product Description

Model: cxw25358

1.used in paper mill for forming part
2.100% PET
3.ISO9001,good service and price

Wire diameter: warp-0.22mm/weft-0.35mm

Density:  warp-28 thread/cm , weft-19.5 thread/cm

Thickness:  0.85mm

Air permeability:   9000 m3/m2h

Paper making forming fabrics

According to the weaving, polyester forming fabric can be divided into 4-shed, 5-shed, 7-shed, 8-shed, 16-shed,

24-shed etc.For the category, it can be divided into single layer fabric, double layer fabric,two and a half layer fabric

and three-layer fabric.



4-shed single layer forming fabrics is the standard type of polyester forming fabrics in making paper.It is used for producing

culture paper, printing paper, packing paper,etc.

5-shed single layer fabrics is good at making healthy, culture packing papers etc.

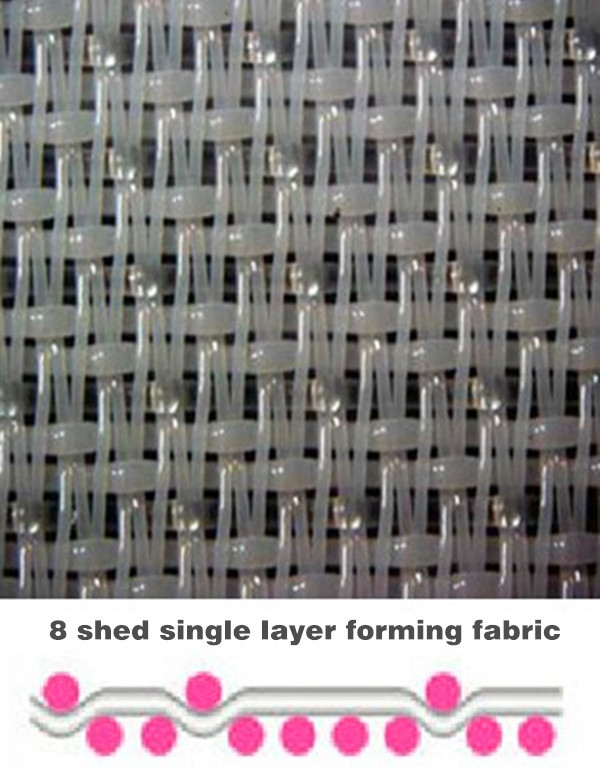

8-shed single layer forming fabrics is the most wear-resisting one in the single layer screen, which have long performance life,

but mesh print is relatively deep,it is mainly used for copying the papermaking.

7-shed double layer forming fabric is suitable for quality printing paper and tissue paper etc.

8-shed double layer fabrics is suitable for quality printing paper, tissue paper and the surface pulp, and inner pulp for the

board paper etc.

8-shed,16-shed double layer fabrics is suitable for quality printing paper, tissue paper and the surface pulp, inner pulp

and bade pulp of the board paper etc.
Mufti-shed three-layer forming fabric is suitable for making quality printing paper, paper and cigarette etc.

Double and a half layer forming fabric pictures for reference as below:

cxw25358 two and a half layer forming fabric

cxw25358 two and a half layer forming fabric

cxw25358 two and a half layer forming fabric

cxw25358 two and a half layer forming fabric

cxw25358 two and a half layer forming fabric



cxw25358 two and a half layer forming fabric



cxw25358 two and a half layer forming fabric
