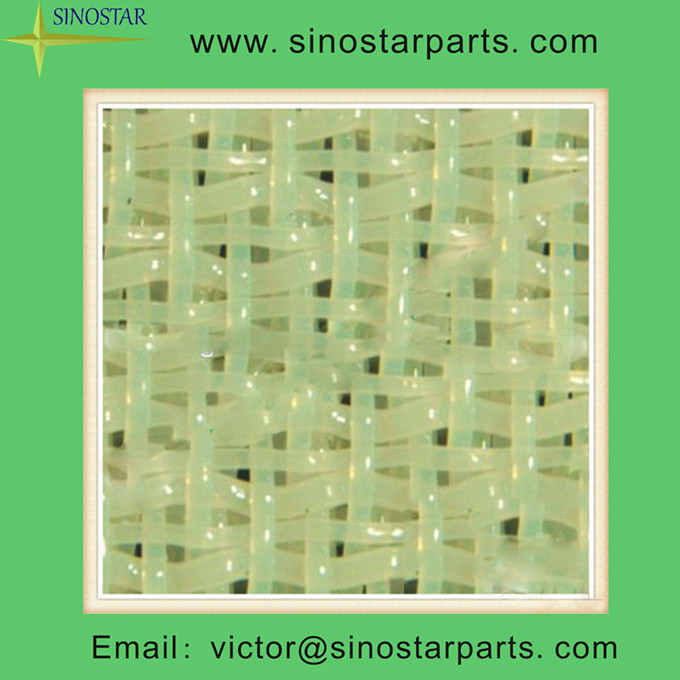

100%polyester,16-shed,2.5 layer,paper mill forming fabric (603516-2)

100%polyester,16-shed,2.5 layer,paper mill forming fabric (603516-2)

100%polyester,16-shed,2.5 layer,paper mill forming fabric (603516-2)

Product Details:

Place of Origin: Anhui forming fabrics
Brand Name: Sinostar
Certification: ISO9001:2000,SGS.
Model Number: forming fabrics:603516-2

Payment & Shipping Terms:

Minimum Order Quantity: 100 square meters
Price: 10-27 usd / square meters
Packaging Details: plastic bag inside and wooden crate outside
Delivery Time: 25 days according to your QTY
Payment Terms: T/T or L/C
Supply Ability: 3000 square meters
Contact Now
Detailed Product Description

Model of fabric:603516-2

Structure:double and a half layer forming fabric

Warp diameter:0.17mm,

Weft diameter:0.13mm,0.20mm /0.35mm(PET),0.35mm(PA66)

Warp density:68 thread/cm       Weft density:54 thread/cm

Breaking strength:≥960N/cm  Jointing strength:≥700N/cm

Air permeability (m3/m2h):313CFM(5000m3/m2h )

Thickness:1.00mm

Max. Elongation at 50N/cm:<0.45%

Paper making forming fabrics

According to the weaving, polyester forming fabric can be divided into 4-shed, 5-shed, 7-shed, 8-shed, 16-shed,

24-shed etc. For the category, it can be divided into single layer fabric, double layer fabric, two and a half layer fabric

and three-layer fabric.



4-shed single layer forming fabrics is the standard type of polyester forming fabrics in making paper.It is used for producing

culture paper, printing paper, packing paper,etc.

5-shed single layer fabrics is good at making healthy, culture packing papers etc.

8-shed single layer forming fabrics is the most wear-resisting one in the single layer screen, which have long performance life,

but mesh print is relatively deep,it is mainly used for copying the papermaking.

7-shed double layer forming fabric is suitable for quality printing paper and tissue paper etc.

8-shed double layer fabrics is suitable for quality printing paper, tissue paper and the surface pulp, and inner pulp for the

board paper etc.

8-shed,16-shed double layer fabrics is suitable for quality printing paper, tissue paper and the surface pulp, inner pulp

and bade pulp of the board paper etc.
Mufti-shed three-layer forming fabric is suitable for making quality printing paper, paper and cigarette etc.

Company Introduction:

Maanshan Sinostar Industry Co.,Ltd is a supplier of filter fabrics for solid-liquid separation and

dryer fabrics used in the paper industry. They are produced in a plant inMaanshan, which has more

than 10 years worth of experience with the production of paper machine clothing. We use only the best

plastic yarns from reliable suppliers and guarantee the highest quality of our products.

We aim at supply in our customers with a suitable fabric and achieving the best possible results according to

their demands. In order to do that, we want to learn about their goals and to understand the technological

processes for which our fabrics will be used. We also provide continuous technical support and service.

We offer dryer fabrics for all paper grades including special fabrics, which are resistant to hydrolysis and

stickies for the range of air permeability from 80 to 1,000 CFM.

Our filter fabrics can be used in a wide variety of applications for the solid-liquid separation, e.g.dewatering of

municipal or industrial sludge in belt filter presses or gravity thickeners, filtration in horizontal vacuum

filters, thickening in drum filters, conveyor belts, process belts in various industries,etc.

We can also produce fabrics according to customers’ specifications.

Double and a half layer forming fabric pictures for reference as below:



100%polyester,16-shed,2.5 layer,paper mill forming fabric (603516-2)



100%polyester,16-shed,2.5 layer,paper mill forming fabric (603516-2)



100%polyester,16-shed,2.5 layer,paper mill forming fabric (603516-2)
