|Place of Origin:||Anhui,China(polyester forming fabric)|
|Model Number:||polyester forming fabric: 602016|
|Minimum Order Quantity:||100 square meters|
|Price:||9.9-29.5 usd / square meters|
|Packaging Details:||plastic bag inside and wooden crate outside|
|Delivery Time:||15 days according to your QTY|
|Payment Terms:||T/T or L/C|
|Supply Ability:||3000 square meters|
Structure:double and a half layer forming fabric
Weft diameter:0.13mm,0.17mm /0.20mm(PET),0.20mm(PA66)
Warp density:68 thread/cm Weft density:62 thread/cm
Breaking strength:≥960N/cm Jointing strength:≥600N/cm
Air permeability (m3/m2h):344CFM(5500m3/m2h )
Thickness:0.70mm Max. Elongation at 50N/cm:<0.46%
Paper machine forming fabrics are designed to retain as much fiber and other furnish components as possible
while allowing water to drain through them as quickly as possible. These fabrics are typically produced from
monofilament strands or yarns that are woven together in a pattern that can be classified by their fabric style
(or weave);mesh, count, and diameter; surface topography; and air permeability. This module discusses how
each of these characteristics affect final sheet quality.
A sheet of paper begins in the forming section, where a mixture of 99% water and 1% cellulose fiber is
introduced evenly across a forming fabric, which acts as both a sheet conveyor and a dewatering device.
It is here that the paper sheet is formed and the initial water removal occurs. As the fabric moves, water
drains through it, while the fibers and fillers that form the sheet remain on top. Today, forming fabrics have
an average operating life of 45 to 60 days. Multilayer technology offered by Maanshan Sinostar is the
standard today on world-class high-speed machines.
According to the weaving, polyester forming fabric can be divided into 4-shed, 5-shed, 7-shed, 8-shed, 16-shed,
24-shed etc. For the category, it can be divided into single layer fabric, double layer fabric, two and a half layer fabric
and three-layer fabric.
4-shed single layer forming fabrics is the standard type of polyester forming fabrics in making paper.It is used for producing
culture paper, printing paper, packing paper,etc.
5-shed single layer fabrics is good at making healthy, culture packing papers etc.
8-shed single layer forming fabrics is the most wear-resisting one in the single layer screen, which have long performance life,
but mesh print is relatively deep,it is mainly used for copying the papermaking.
7-shed double layer forming fabric is suitable for quality printing paper and tissue paper etc.
8-shed double layer fabrics is suitable for quality printing paper, tissue paper and the surface pulp, and inner pulp for the
board paper etc.
8-shed,16-shed double layer fabrics is suitable for quality printing paper, tissue paper and the surface pulp, inner pulp
and bade pulp of the board paper etc.
Mufti-shed three-layer forming fabric is suitable for making quality printing paper, paper and cigarette etc.
Maanshan Sinostar Industry Co.,Ltd is a supplier of filter fabrics for solid-liquid separation and dryer fabrics
used in the paper industry. They are produced in a plant in Maanshan, which has more than 10 years
worth of experience with the production of paper machine clothing.We use only the best plastic yarns from
reliable suppliers and guarantee the highest quality of our products.
We aim at supply in our customers with a suitable fabric and achieving the best possible results according
to their demands. In order to do that, we want to learn about their goals and to understand the technological
processes for which our fabrics will be used. We also provide continuous technical support and service.
We offer dryer fabrics for all paper grades including special fabrics, which are resistant to hydrolysis and
stickies for the range of air permeability from 80 to 1,000 CFM.
Our filter fabrics can be used in a wide variety of applications for the solid-liquid separation, e.g. dewatering
of municipal or industrial sludge in belt filter presses or gravity thickeners, filtration in horizontal vacuum filters,
thickening in drum filters, conveyor belts, process belts in various industries,etc.We can also produce fabrics
according to customers’ specifications.

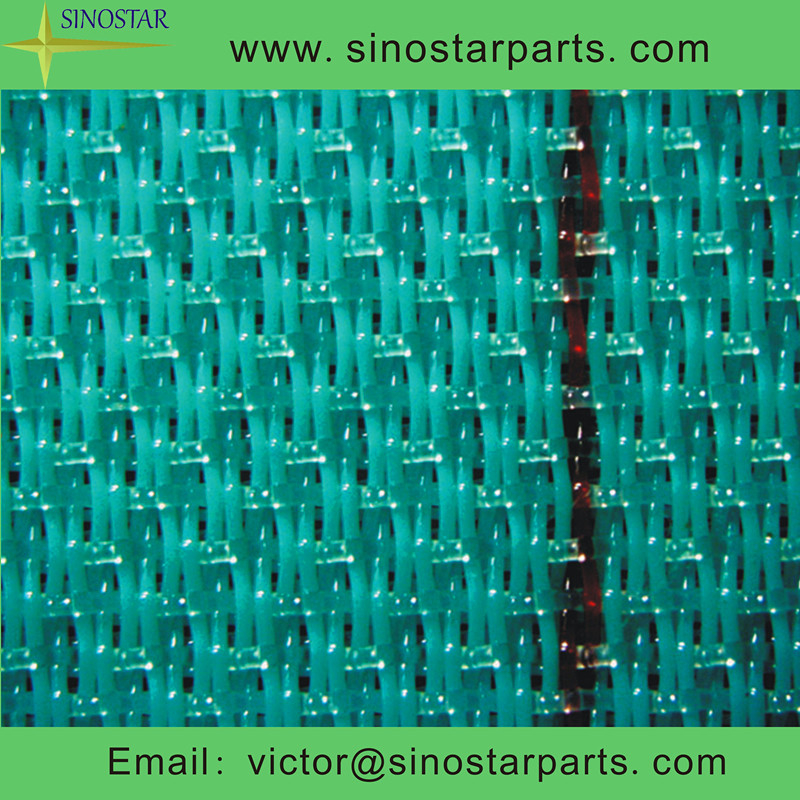

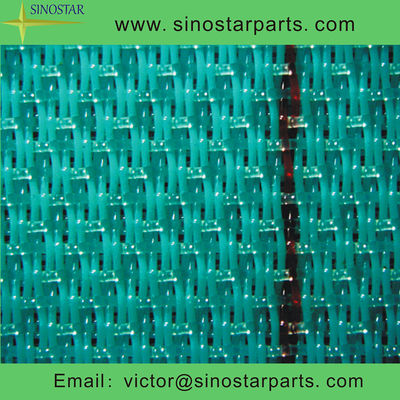

Double and a half layer forming fabric pictures for reference as below:
