Place of Origin: | Anhui,China (forming fabrics) |
Brand Name: | Sinostar |
Certification: | ISO9001:2000,SGS. |
Model Number: | polyester forming fabric (27274) |
Minimum Order Quantity: | 100 square meters |
---|---|
Price: | 10-25 usd / square meter |
Packaging Details: | plastic bag inside and wooden crate outside |
Delivery Time: | 25 days after order confirmed |
Payment Terms: | T/T or L/C |
Supply Ability: | 8000 square meters per month |
Material: | 100% Polyester | Feature: | Acid And Alkali Resistance |
---|---|---|---|
Technic: | Woven | Application: | Paper Making Industry |
Supply Type: | Make-to-order | OEM & ODM: | Acceptable |

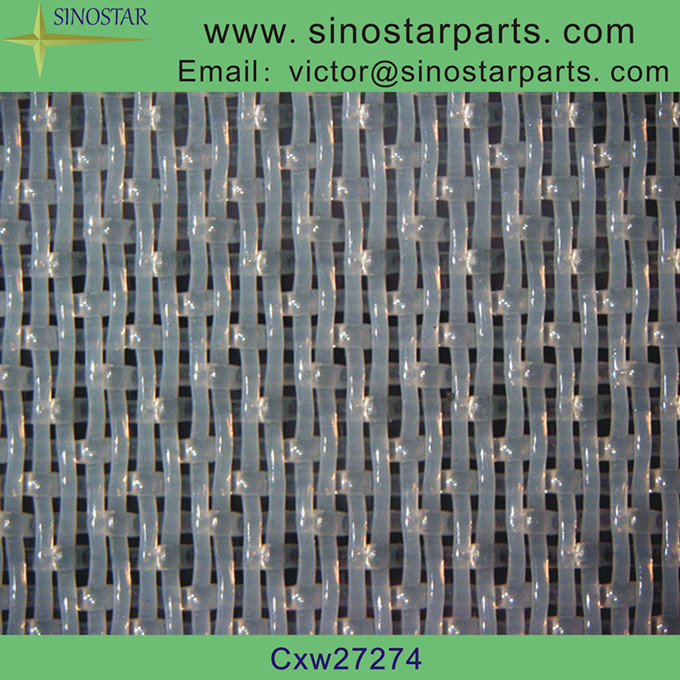

cxw27274,polyester forming fabrics for paper processing forming section
Model of fabric:27274
Structure:single layer forming fabric
Warp diameter:0.20 mm Weft diameter:0.27 mm
Warp density:30 thread/cm Weft density:21.5 thread/cm
Surface strength:≥600N/cm Jointing strength:≥400N/cm
Air permeability (m3/m2h):488CFM Thickness:0.51mm
Max. Elongation at 50N/cm:<0.60%
A sheet of paper begins in the forming section, where a mixture of 99% water and 1% cellulose fiber is
introduced evenly across a forming fabric, which acts as both a sheet conveyor and a dewatering device.
It is here that the paper sheet is formed and the initial water removal occurs. As the fabric moves, water
drains through it, while the fibers and fillers that form the sheet remain on top. Today, forming fabrics have
an average operating life of 45 to 60 days. Multilayer technology offered by Maanshan Sinostar is the
standard today on world-class high-speed machines.
Paper machine forming fabrics are designed to retain as much fiber and other furnish components as possible
while allowing water to drain through them as quickly as possible. These fabrics are typically produced from
monofilament strands or yarns that are woven together in a pattern that can be classified by their fabric style
(or weave);mesh, count, and diameter; surface topography; and air permeability. This module discusses how
each of these characteristics affect final sheet quality.
Weaving series and species |
Model of Fabric |
Thread Diameter (mm) |
Density (thread/cm) |
Strength (N/cm) |
Thickness (mm) |
Air Permeation m3m2/h |
Max.Elongation at 50N/cm |
|||
Warp | Weft | Warp | Weft | surface | jointing | |||||
4-shed single layer fabric |
cxw25254 | 0.22 | 0.25 | 27-28 | 22-23 | >600 | >400 | 0.52 | 8000 | <0.6% |
cxw25274-1 | 0.22 | 0.27 | 27-28 | 18-19 | >600 | >400 | 0.54 | 7800 | <0.6% | |
cxw25274-2 | 0.22 | 0.27 | 27-28 | 19.5-20.5 | >600 | >400 | 0.54 | 7500 | <0.6% | |
cxw27234-1 | 0.2 | 0.23 | 30-31 | 23.5-24.5 | >600 | >400 | 0.48 | 7500 | <0.6% | |
cxw27234-2 | 0.2 | 0.23 | 30-31 | 24.5-25.5 | >600 | >400 | 0.48 | 7000 | <0.6% | |
cxw27254 | 0.2 | 0.25 | 29.5-30.5 | 21.5-22.5 | >600 | >400 | 0.5 | 8000 | <0.6% | |
cxw27254-1 | 0.2 | 0.25 | 29.5-30.5 | 22.5-23.5 | >600 | >400 | 0.5 | 7500 | <0.6% | |
cxw27254-2 | 0.2 | 0.25 | 29.5-30.5 | 23.5-24.5 | >600 | >400 | 0.5 | 7000 | <0.6% | |
cxw27264 | 0.2 | 0.26 | 29.5-30.5 | 20.5-21.5 | >600 | >400 | 0.5 | 7000 | <0.6% | |
cxw27274 | 0.2 | 0.27 | 29.5-30.5 | 21-22 | >600 | >400 | 0.51 | 7800 | <0.6% | |
cxw27274-1 | 0.2 | 0.27 | 29.5-30.5 | 22-23 | >600 | >400 | 0.52 | 7300 | <0.6% | |
cxw28224-1 | 0.2 | 0.22 | 30.5-31.5 | 19-20 | >600 | >400 | 0.44 | 8500 | <0.7% | |
cxw28224-2 | 0.2 | 0.22 | 30.5-31.5 | 23-24 | >600 | >400 | 0.44 | 7500 | <0.7% | |
cxw29234 | 0.2 | 0.23 | 31-32 | 21-22 | >600 | >400 | 0.48 | 7500 | <0.7% | |
cxw29254 | 0.2 | 0.25 | 31-32 | 20.5-21.5 | >600 | >400 | 0.5 | 7000 | <0.7% | |
cxw31204-1 | 0.2 | 0.2 | 34.5-35.5 | 27.5-28.5 | >550 | >350 | 0.42 | 7500 | <0.7% | |
cxw31204-2 | 0.18 | 0.2 | 34.5-35.5 | 29-30 | >550 | >350 | 0.42 | 7000 | <0.7% | |
cxw31204-3 | 0.18 | 0.2 | 34.5-35.5 | 30-31 | >550 | >350 | 0.42 | 6500 | <0.7% | |
5-shed single layer fabric |
cxw28225-1 | 0.18 | 0.22 | 30.5-31.5 | 26-27 | >550 | >400 | 0.51 | 7500 | <0.7% |
cxw28225-2 | 0.18 | 0.22 | 31.5-32.5 | 27-28 | >550 | >400 | 0.52 | 7300 | <0.7% | |
cxw31205-1 | 0.18 | 0.2 | 34-35 | 31-32 | >550 | >400 | 0.45 | 7200 | <0.7% | |
cxw31205-2 | 0.18 | 0.2 | 34-35 | 33-34 | >550 | >400 | 0.45 | 7000 | <0.7% | |
8-shed single layer fabric |
cxw25358-1 | 0.22 | 0.35 | 27.5-28.5 | 18.5-19.5 | >650 | >400 | 0.87 | 9000 | <0.55% |
cxw25358-2 | 0.22 | 0.35 | 27.5-28.5 | 19.5-20.5 | >650 | >400 | 0.87 | 8500 | <0.55% | |
cxw27358-1 | 0.2 | 0.35 | 29.5-30.5 | 19.5-20.5 | >650 | >400 | 0.85 | 8500 | <0.55% | |
cxw27358-2 | 0.2 | 0.35 | 29.5-30.5 | 20.5-21.5 | >650 | >400 | 0.85 | 8000 | <0.55% |
