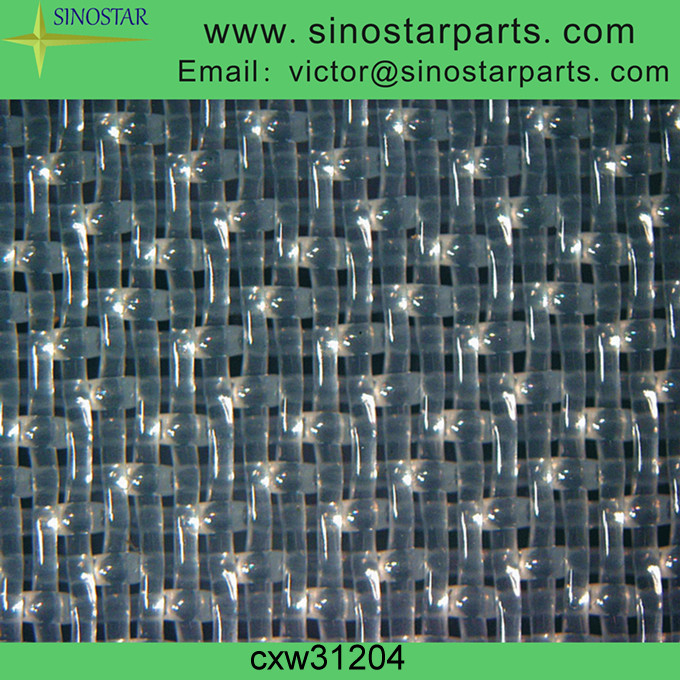

paper mill polyester forming fabrics,CXW31204-1

paper mill polyester forming fabrics,CXW31204-1

paper mill polyester forming fabrics,CXW31204-1

Product Details:

Place of Origin: Anhui,China (forming fabrics)
Brand Name: Sinostar
Certification: ISO9001:2000,SGS.
Model Number: polyester forming fabric (31204-1)

Payment & Shipping Terms:

Minimum Order Quantity: 100 square meters
Price: 10-25 usd / square meter
Packaging Details: plastic bag inside and wooden crate outside
Delivery Time: 25 days after down payment
Payment Terms: T/T or L/C
Supply Ability: 8000 square meters per month
Contact Now
Detailed Product Description
Material: 100% Polyester Feature: Acid And Alkali Resistance
Technic: Woven Application: Paper Industry
Supply Type: Make-to-order OEM & ODM: Acceptable

paper mill polyester forming fabrics

Model of fabric:31204-1

Structure:single layer forming fabric

Warp diameter:0.20mm           Weft diameter:0.20 mm

Warp density:35 thread/cm            Weft density:28 thread/cm

Surface strength:≥550N/cm        Jointing strength:≥350N/cm

Air permeability (m3/m2h):7500m3/m2h   Thickness:0.42mm

Max. Elongation at 50N/cm:<0.7%

A sheet of paper begins in the forming section, where a mixture of 99% water and 1% cellulose fiber is

introduced evenly across a forming fabric, which acts as both a sheet conveyor and a dewatering device.

It is here that the paper sheet is formed and the initial water removal occurs. As the fabric moves, water

drains through it, while the fibers and fillers that form the sheet remain on top. Today, forming fabrics have

an average operating life of 45 to 60 days. Multilayer technology offered by Maanshan Sinostar is the

standard today on world-class high-speed machines.

Paper machine forming fabrics are designed to retain as much fiber and other furnish components as possible

while allowing water to drain through them as quickly as possible. These fabrics are typically produced from

monofilament strands or yarns that are woven together in a pattern that can be classified by their fabric style

(or weave);mesh, count, and diameter; surface topography; and air permeability. This module discusses how

each of these characteristics affect final sheet quality.

Paper Machine Single Layer Polyester Forming Fabrics Series Products Parameters

Weaving series

and species

Model of

Fabric

Thread

Diameter

(mm)

Density

(thread/cm)

Strength

(N/cm)

Thickness

(mm)

Air

Permeation

m3m2/h

Max.

Elongation

at 50N/cm

Warp Weft Warp Weft surface jointing

4-shed single

layer fabric

cxw25254 0.22 0.25 27-28 22-23 >600 >400 0.52 8000 <0.6%
cxw25274-1 0.22 0.27 27-28 18-19 >600 >400 0.54 7800 <0.6%
cxw25274-2 0.22 0.27 27-28 19.5-20.5 >600 >400 0.54 7500 <0.6%
cxw27234-1 0.2 0.23 30-31 23.5-24.5 >600 >400 0.48 7500 <0.6%
cxw27234-2 0.2 0.23 30-31 24.5-25.5 >600 >400 0.48 7000 <0.6%
cxw27254 0.2 0.25 29.5-30.5 21.5-22.5 >600 >400 0.5 8000 <0.6%
cxw27254-1 0.2 0.25 29.5-30.5 22.5-23.5 >600 >400 0.5 7500 <0.6%
cxw27254-2 0.2 0.25 29.5-30.5 23.5-24.5 >600 >400 0.5 7000 <0.6%
cxw27274 0.2 0.27 29.5-30.5 21-22 >600 >400 0.52 7800 <0.6%
cxw27274-1 0.2 0.27 29.5-30.5 22-23 >600 >400 0.52 7300 <0.6%
cxw28224-1 0.2 0.22 30.5-31.5 19-20 >600 >400 0.44 8500 <0.7%
cxw28224-2 0.2 0.22 30.5-31.5 23-24 >600 >400 0.44 7500 <0.7%
cxw29234 0.2 0.23 31-32 21-22 >600 >400 0.48 7500 <0.7%
cxw29254 0.2 0.25 31-32 20.5-21.5 >600 >400 0.5 7000 <0.7%
cxw31204-1 0.2 0.2 34.5-35.5 27.5-28.5 >550 >350 0.42 7500 <0.7%
cxw31204-2 0.18 0.2 34.5-35.5 29-30 >550 >350 0.42 7000 <0.7%
cxw31204-3 0.18 0.2 34.5-35.5 30-31 >550 >350 0.42 6500 <0.7%

5-shed single

layer fabric

cxw28225-1 0.18 0.22 30.5-31.5 26-27 >550 >400 0.51 7500 <0.7%
cxw28225-2 0.18 0.22 31.5-32.5 27-28 >550 >400 0.52 7300 <0.7%
cxw31205-1 0.18 0.2 34-35 31-32 >550 >400 0.45 7200 <0.7%
cxw31205-2 0.18 0.2 34-35 33-34 >550 >400 0.45 7000 <0.7%

8-shed single

layer fabric

cxw25358-1 0.22 0.35 27.5-28.5 18.5-19.5 >650 >400 0.87 9000 <0.55%
cxw25358-2 0.22 0.35 27.5-28.5 19.5-20.5 >650 >400 0.87 8500 <0.55%
cxw25408 0.2 0.4 27.5-28.5 16.5-17.5 >700 >450 0.75 8500 <0.6%
cxw27358-1 0.2 0.35 29.5-30.5 19.5-20.5 >650 >400 0.85 8500 <0.55%
cxw27358-2 0.2 0.35 29.5-30.5 20.5-21.5 >650 >400 0.85 8000 <0.55%
