Stainless steel single twisted weave plain weave for paper making

Stainless steel single twisted weave plain weave for paper making

Stainless steel single twisted weave plain weave for paper making

Product Details:

Place of Origin: China
Brand Name: Sinostar
Certification: ISO9001:2000,SGS,CE.
Model Number: stainless steel wire mesh

Payment & Shipping Terms:

Minimum Order Quantity: 50 square meters
Price: 25 usd/square meter
Packaging Details: Plastic film and waterproof paper inside, pallet outside
Delivery Time: 15 days
Payment Terms: T/T or L/C
Supply Ability: 25000 square meters per month
Contact Now
Detailed Product Description

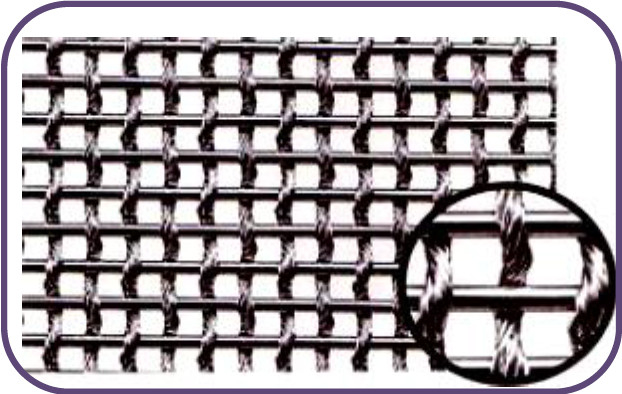

The "Single Twisted Weave" is a wire cloth in which are

wound around the warp wires in the fashion of a rope. In

addition to being used in production processes at paper

manufacturing and pulp factories, it is used in unwoven

cloth and in conveyor belts used in drying processes for

chamical products during the drying process.



The "Double Twisted Weave" is a wire cloth in which both weft and warp wires are wound in the fashion of a rope.

Stainless steel single twisted weave (plain weave)

mesh

Warp wire

Weft wire

Aperture  size

Open area

percentage

weight

Fracture

strength

Elongation

percentage

Warp

Weft

S.W.G

Ø

S.W.G

Ø

%

%

kg/m2

kg/cm

%

8

8

33x7

2.254

22

0.711

2.41x2.46

58.8

2.01

63

23

10

10

34x7

0.233

22

0.711

1.84x1.83

52.1

2.42

77.2

20

12

12

34½x7

0.226

23

0.609

1.43x1.50

47.8

2.45

92.3

29

14

14

35x7

0.213

23

0.609

1.17x1.20

42.6

2.54

94.5

29

16

16

35x7

0.213

23

0.609

0.95x0.98

36.8

2.9

108

26

20

19

36x7

0.193

27

0.416

0.69x0.92

37.3

2.23

88.8

24

25

22

37x7

0.172

28

0.376

0.50x0.78

33.2

2.12

95.7

25

30

26

38x7

0.152

29

0.345

0.39x0.63

29.7

2.24

87.8

26

35

28

39x7

0.132

29

0.345

0.33x0.56

28

1.89

68

22

40

28

39x7

0.132

29

0.345

0.24x0.56

23.3

2.26

84.2

26

◊Fracture strength, Elongation percentage: n-4 average values
