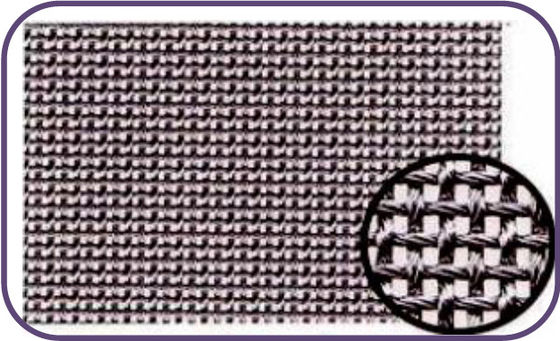

double twisted weave Stainless steel wire mesh for paper machine

double twisted weave Stainless steel wire mesh for paper machine

double twisted weave Stainless steel wire mesh for paper machine

Product Details:

Place of Origin: China
Brand Name: Sinostar
Certification: ISO9001:2000,SGS,CE.
Model Number: stainless steel wire mesh

Payment & Shipping Terms:

Minimum Order Quantity: 50 square meters
Price: 30 usd/square meter
Packaging Details: Plastic film and waterproof paper inside, pallet outside
Delivery Time: 15 days
Payment Terms: T/T or L/C
Supply Ability: 25000 square meters per month
Contact Now
Detailed Product Description

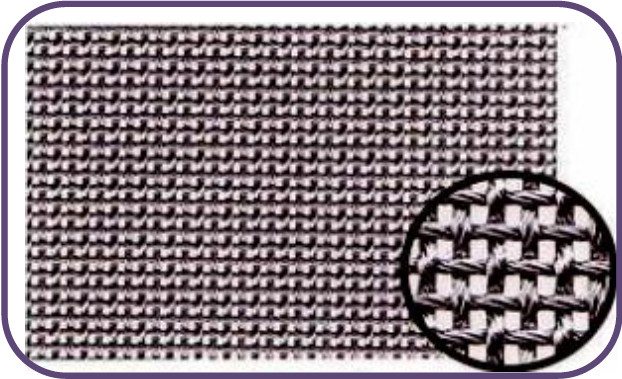

The "Double Twisted Weave" is a wire cloth in which both weft and warp wires are wound in the fashion of a rope.

Stainless steel double twisted weave (plain weave)

Mesh

Warp wire

Weft wire

Aperture  size

Open area

percentage

Weight

Fracture

strength

Elongation

percentage

Warp

Weft

S.W.G

Ø

S.W.G

Ø

%

%

kg/m2

kg/cm

%

16

16

35x7

0.63

35x7

0.63

0.96x0.96

36.6

2.71

145

41

20

19

36x7

0.57

36x7

0.57

0.70x0.77

31.8

2.81

124

43

25

19

37x7

0.51

37x7

0.51

0.50x0.83

30.6

2.62

110

32

30

24

38x7

0.45

38x7

0.45

0.40x0.61

27.2

2.32

78

36

◊Fracture strength, Elongation percentage: n-4 average values
