diagonal seam stainless steel wire mesh for paper machine cylinder mould

    • diagonal seam stainless steel wire mesh for paper machine cylinder mould
    • diagonal seam stainless steel wire mesh for paper machine cylinder mould
    • diagonal seam stainless steel wire mesh for paper machine cylinder mould
  • diagonal seam stainless steel wire mesh for paper machine cylinder mould

    Product Details:

    Place of Origin: Anhui, China.
    Brand Name: Sinostar
    Certification: ISO9001:2000,SGS,CE.
    Model Number: stainless steel wire mesh

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 square meters
    Price: $ 12.-26 /square meter
    Packaging Details: Plastic film and waterproof paper inside, pallet outside.
    Delivery Time: 15-20 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 25000 square meters per month
    Contact Now
    Detailed Product Description
    Material: 304ss, 316ss,316Lss. Error Free: 100 Percent
    Structure: Plain Weave,twil Weave,dutch Weave,etc. Wire Diameter: 0.05mm To 4.0mm
    Feature: Acid-resisting Alkali-resisting Finishing: Bright Finish
    Mesh: 20mesh-500mesh Width: 0.914m-2m
    Application: Paper Making

    Diagonal seam stainless steel wire mesh for paper machine cylinder mould

    diagonal seam stainless steel wire mesh for paper machine cylinder mould



    Material Heat treated yarn 304 stainless steel wire.(AISI 316,SUS316L for choosing.)
    Pattern Plain weave ( Twill weave, Satin weave, Twisted weave, Crimped weave for selection).
    Type mono-filament.
    Wire diameter 0.05mm to 4.0mm.(can be customized)
    Mesh size customized.
    Wire density according to client's requirement.
    Temperature 180-200℃.
    Finishing Endless / Open ended.

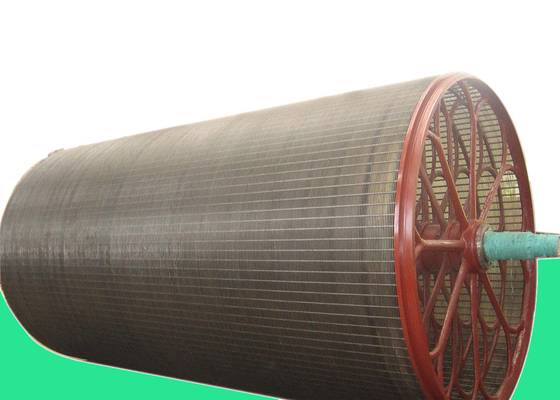

    Position Paper Machine Cylinder Mould.
    Application Main in paper Industry.(also suit for other industry,such as processing of oil,food,chemical,etc.)



    Product intruduction

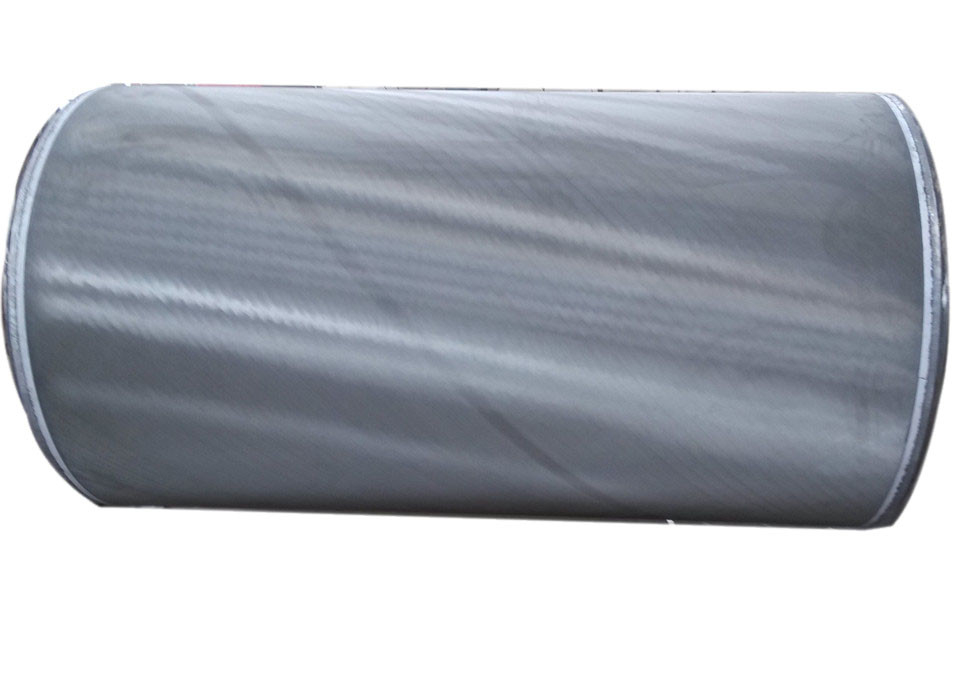

    "Diagonal processing" is the cutting of a sheet of wire mesh to a predetermined angle.And then processing it into an endless roll. This kind of stainless steel wire mesh is usd for cylinder machine in paper making process,especially for tissue paper making.



    Material: SUS 304,316,316L.

    Mesh: 2-635 mesh   standard wire gauge

    Width: 1.2mtr-5.0MTR  Length:30.0MTR



    Feature

    • Acid-resistant, alkali-resistant,non-toxic.
    • Wear-resistant,no seam marks,no static charge.
    • Net body smooth, tensile strong, good ventilation.
    • Running smoothly, .wide adaptability.
    • Heat resisting and wear proof.
    • Increase paper making speed, and speed up the slurry filter water.
    • No splashing pulp phenomena due to high speed, good protection for fiber.
    • Changed the fiber configuration way, the fiber vertical array more against square opening in common fabric,the pull strength in vertical is good but worse in crosswise.

    • Avoid the problem from traditional paper making fabric, such as wire mesh looseness, poor flatness, and pulp left in mesh.



    Applications

    Stainless steel wire mesh and stainless steel wire cloth products are widely used in petroleum, chemical industry, environment protection, mine, airspace, paper-making, electronic, metallurgy etc. Special size and specification are available according to customers' requirement.



    Sinostar supply all kinds of paper and pulp machinery spare parts, our main products as following:

    • Paper machine clothing: forming fabrics, dryer screens, pulp washing fabrics, paper making felts,sludge dewatering belts, stainless steel wire mesh,etc.
    • Pulping equipments: screen baskets, screen plates, refiner plates,etc.
    • Pulp cleaner: high density cleaner, low density cleaner,Medium density cleaner, ceramic cone,etc.
    • Spray nozzle: flat fan nozzles,full cone nozzle, hollow cone nozzles, needle jet nozzles,low pressure misting nozzles, etc.
    • Blades and knives: doctor blades, paper cutting knives, slitter knives,steel rule blades, carton box slotting knife,packaging machine blades,etc.
    • Other paper machine spare parts: pulp rotors,pressure screens,suction cover box,plain bearings,etc.

    If you are interested in any our products, please contact us for more details.
