Place of Origin: | stainless steel wire mesh China supplier |
Brand Name: | Sinostar |
Certification: | ISO9001:2000,SGS,CE,RoHs. |
Model Number: | stainless steel wire mesh |
Minimum Order Quantity: | 100 square meters |
---|---|
Price: | 22 usd/ square meter |
Packaging Details: | wooden crate |
Delivery Time: | 25 days |
Payment Terms: | T/T or L/C |
Supply Ability: | 8500 square meters per month |
Stainless steel printing screen Characteristics:
Material: SUS 304N, 304HP, 316L
Pattern: plain or till woven.
High tension: the tension is higher than polyester fabric, mean while, stainless fabric is more stability.
Ultra high precision: Wire diameter opening uniform, minimum error rate.
Lower extension: the tensile strength is very small in great force.
High breakdown point: Will not change shape and lose spring in great force.
High abrasion resistant: Stainless wire is more wear-resisting than polyester fabric.
No static: Can prevent static and ensure print effect.
Anti-heat melting: can be used in hot melt ink is the particular advantage.
Anti solvent: can prevent different solvent damage the fabric to ensure the print reliability.
Usage:Stainless print fabric is widely used in plate making directly, and print in curved surface,
such as cup, metal, plastic and electric circuit. Can suit to be used in severe conditions,
multi- color registration, batch print, tone printing and precision print.
Stainless steel print screen specification:
Mesh count | Wire diameter | Aperture | Mesh count | Wire diameter | Aperture |
30 | 165 | 683 | 230 | 28 | 81 |
50 | 140 | 368 | 250 | 40 | 61 |
60 | 114 | 330 | 270 | 36 | 69 |
80 | 51 | 267 | 280 | 30 | 56 |
80 | 93 | 224 | 290 | 23 | 56 |
105 | 76 | 178 | 325 | 23 | 51 |
120 | 66 | 165 | 325 | 23 | 51 |
135 | 58 | 145 | 325 | 28 | 56 |
145 | 56 | 119 | 325 | 28 | 38 |
150 | 66 | 104 | 360 | 15 | 39 |
165 | 51 | 104 | 400 | 25 | 38 |
180 | 46 | 97 | 400 | 23 | 39 |
200 | 53 | 74 | 400 | 25 | 38 |
200 | 40 | 86 | 400 | 18 | 46 |
200 | 35 | 89 | 400 | 18 | 46 |
230 | 36 | 74 | 500 | 18 | 33 |

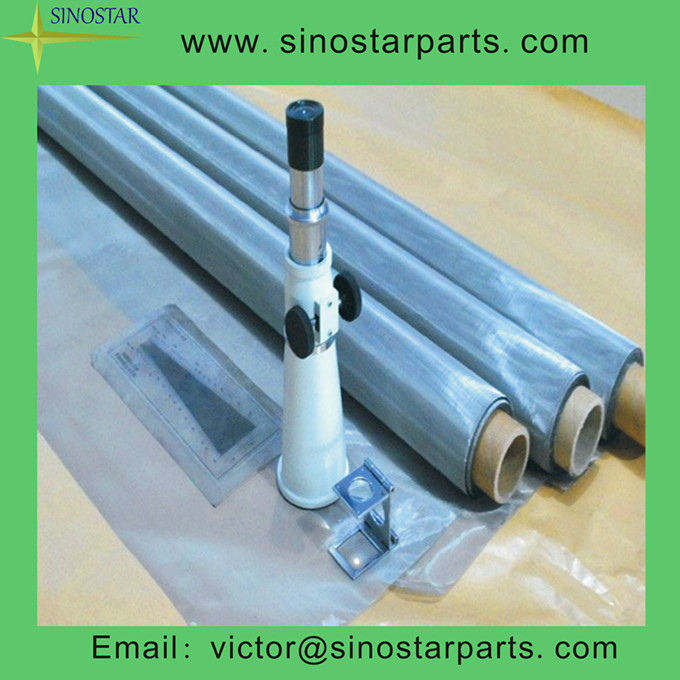

Products Show:
