| Place of Origin: | Maanshan |
| Brand Name: | Sinostar |
| Certification: | ISO9001:2000,SGS. |
| Model Number: | stainless steel wire mesh |
| Minimum Order Quantity: | 100 square meters |
|---|---|
| Price: | 20-55 usd/ square meter |
| Packaging Details: | wooden crate |
| Delivery Time: | 25 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 10000 square meters per month |
| Material: | SUS 304,316,316L,etc. | Technic: | Woven |
|---|---|---|---|
| Pattern: | Plain,twill,satin,weave | OEM&ODM: | Acceptable |
| Application: | Food,mine,paper Industry |

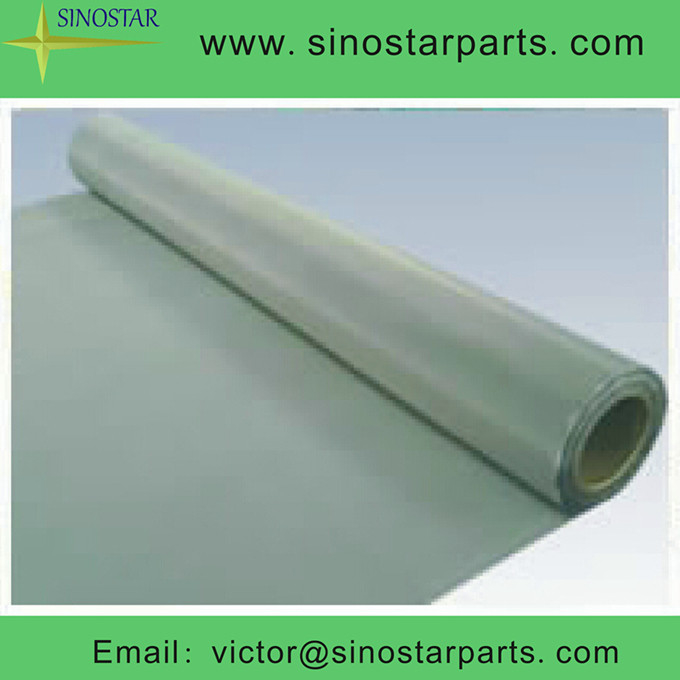

Stainless Steel Wire Mesh could be stainless steel filter mesh,sieving mesh and stainless steel printing mesh,which is
also named as stainless steel printing screen and stainless steel screen printing mesh.
Material:SUS304N,304HP,316L
Feature:High tension,low elongation,high precision,high flexibility,corrosion resistance and non electrostatic
Application:
Stainless Steel Printing Mesh is widely used in thick film and keypads printing,glass printing,ceramic printing,circuit board,etc.
Advantage:
Stainless Steel Printing Mesh can be calendered.The calendering process flattens the knuckles of the wires,reducing the overall thickness of the mesh while greatly improving thickness tolerance.
Stainless Steel Printing Mesh Technical Datas:
|
Mesh/inch
|
Wire Dia.(µm |
Thickness (µm) |
Calendered Thickness(µm) |
Theoretical Ink (cm3/m2) |
|
40 |
160 |
300--320 |
As order |
179.1 |
|
60 |
120 |
230--245 |
As order |
123.2 |
|
80 |
120 |
235--245 |
As order |
92.9 |
|
80 |
90 |
175--180 |
As order |
103.0 |
|
80 |
50 |
95--100 |
As order |
78.0 |
|
100 |
100 |
195--205 |
As order |
77.2 |
|
120 |
80 |
155--165 |
As order |
65.8 |
|
150 |
60 |
115--124 |
As order |
50.0 |
|
165 |
35 |
70--75 |
As order |
48.0 |
|
165 |
45 |
88--93 |
As order |
45.1 |
|
165 |
50 |
97--105 |
As order |
45.6 |
|
180 |
45 |
88--93 |
As order |
41.5 |
|
180 |
50 |
98--104 |
As order |
41.7 |
|
200 |
40 |
82--84 |
As order |
43.0 |
|
200 |
50 |
98--103 |
As order |
42.0 |
|
230 |
35 |
72--76 |
50-67 |
37.0 |
|
250 |
40 |
82--86 |
50-80 |
34.0 |
|
250 |
30 |
64--68 |
40-58 |
30.0 |
|
250 |
35 |
76--78 |
57-70 |
32.0 |
|
270 |
35 |
76--80 |
58-70 |
30.0 |
|
300 |
30 |
66--68 |
40-59 |
28.0 |
|
325 |
30 |
66--68 |
45-60 |
24.0 |
|
325 |
28 |
63--64 |
40-56 |
26.4 |
|
325 |
23 |
49--53 |
37-41 |
25.4 |
|
350 |
25 |
52--54 |
41-50 |
18.7 |
|
400 |
23 |
50--54 |
35-48 |
19.0 |
|
400 |
18 |
36--40 |
28-30 |
20.0 |
|
500 |
18 |
36--40 |
23-29 |
15.3 |
We also could take orders of other specifications.
