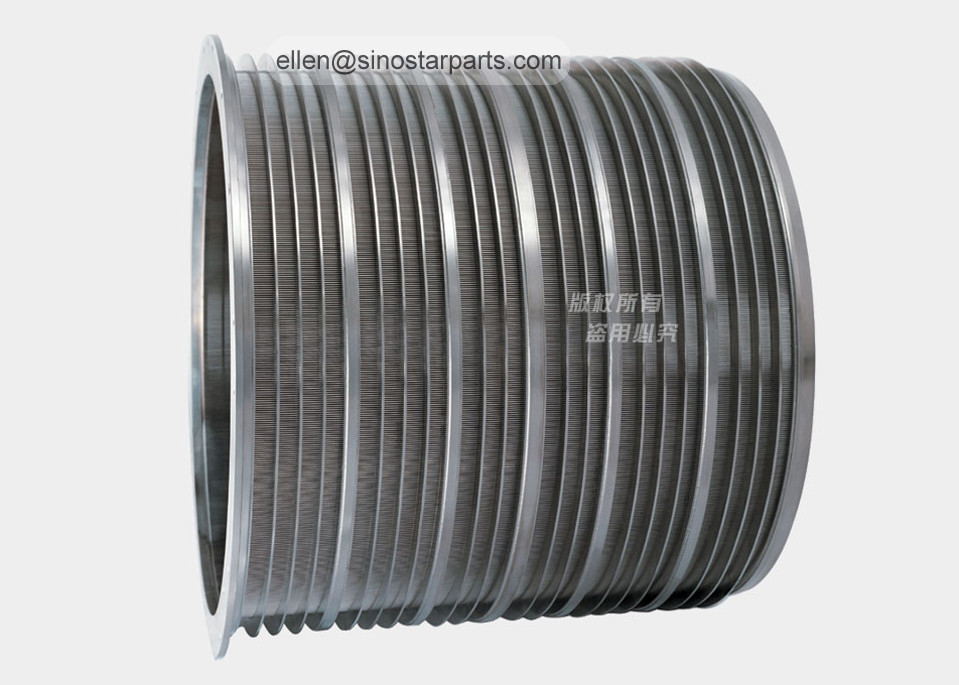

paper mill stainless steel slotted screen basket for upflow pressure screen

paper mill stainless steel slotted screen basket for upflow pressure screen

    • paper mill stainless steel slotted screen basket for upflow pressure screen
    • paper mill stainless steel slotted screen basket for upflow pressure screen
    • paper mill stainless steel slotted screen basket for upflow pressure screen
  • paper mill stainless steel slotted screen basket for upflow pressure screen

    Product Details:

    Place of Origin: China
    Brand Name: Sinostar
    Certification: ISO9001:2000,SGS,CE.
    Model Number: Screen Basket

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: get latest prices
    Packaging Details: Wooden case.
    Delivery Time: 25 days after your deposit.
    Payment Terms: T/T or L/C
    Supply Ability: 150 pcs per month.
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304ss. Type: Wedge Wire, Slotted.
    Chrome Plated: 250 Micron. Dimension: As Per Confirmed Drawing.
    Application: Paper Mill Pressure Screen.

    Paper mill stainless steel slotted screen basket for upflow pressure screen

    paper mill stainless steel slotted screen basket for upflow pressure screen

    Material stainless steel 304ss. Type outflow,slotted.
    Inner diameter 1000mm. Height 1010mm.
    Screen slot 0.30mm. Weigth 300kgs.
    Packing size 1210x1210x1150mm. Unit price USD4,850.00 per piece.

    Screen basket produce processing:

    paper mill stainless steel slotted screen basket for upflow pressure screen

    paper mill stainless steel slotted screen basket for upflow pressure screen

    paper mill stainless steel slotted screen basket for upflow pressure screen



    Features:

    1. Mechanically held wires, built in the round.
    2. Rugged, high mechanical strength.
    3. Electric-chemical polish: no fiber string.
    4. Precise slot-width tolerance.
    5. High wear resistance.
    6. High impact resistance.
    7. Larger open area.
    8. Self-supporting structure.
    9. Non-plugging slot design.
    10. Lower operation and maintenance cost.
    11. Available for outward and inward flow screens.

    Benefits:

    • Large open screening area.
    • Highest slot width accuracy.
    • No fibrous hang ups.
    • Low pressure drop.
    • Excellent surface quality, free of burs.
    • Electro polished.
    • Hard chrome coating.
    • Suitable for removing dimensionally unstable impurities.
    • Special rotor design avoids string formation.
    • Gentle screening.
    • Computerized dynamically balanced rotor.

    Applications:

    Be suitable for all kinds pressure screen in pulp making system and paper making system.



    Approach flow

    Recycled :OCC, Mixed waste, Waste Paper,DIP,etc.

    Mechanical pulp

    Kraft pulp

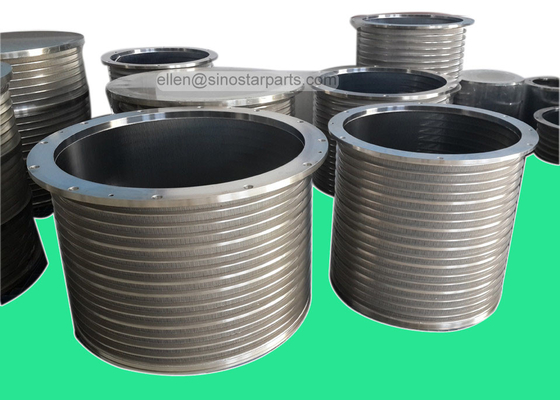

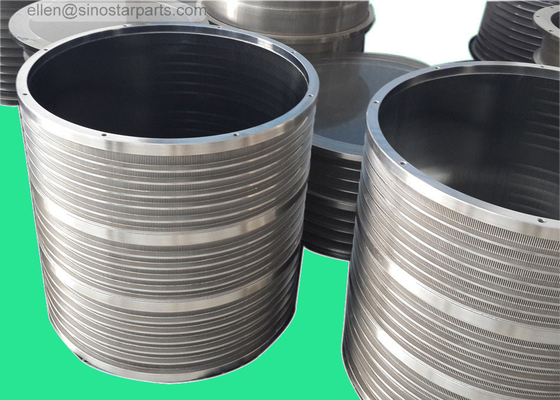

    Screen baskets package:

    paper mill stainless steel slotted screen basket for upflow pressure screen

    paper mill stainless steel slotted screen basket for upflow pressure screen

    paper mill stainless steel slotted screen basket for upflow pressure screen



    Screen baskets introduction:

    We are specialized in paper and pulp industry for years, mainly supply all kinds of paper and pulp machinery spare parts. For screen baskets, we are manufacturing pressure screen baskets, outflow screen baskets, inflow screen baskets,wedge wire screen baskets,etc.



    Outflow pressure screen basket is classified by the flow way of the pulp, the rotary wing spins in the basket to make the pulp flow out from the slot naturally to get good pulp with different purpose. It can be used in many links in pulp and paper line. Regarding to pressure basket, the main point is position when it works and also the result the user want to reach, designing the whole construction and shape the grade bar to ensure the operation intensity and output and quality of the pulp.



    Inflow pressure screen basket is classified by the flow way of the pulp,but the inflow pressure is divided to out rotary wing and inner rotary wing. The characteristic of out rotary wing inner flow pressure screen is that the rotary wing is in the outside of screen. When it works, the heavy impurity in the pulp can be tossed outside due to centrifugal. In the mean time fiber is nearby the screen due to it is tiny mass. With this specialty, it has the performance of seldom pulp plugging, less wear and moderate of filter.



    More related screen baskets for paper and pulp machinery:

    paper mill stainless steel slotted screen basket for upflow pressure screenpaper mill stainless steel slotted screen basket for upflow pressure screenpaper mill stainless steel slotted screen basket for upflow pressure screen

    FAQ:

    Q.Are you a factory or trading company?

    A: We are factory and trading company.



    Q.Where is your factory located? How can I visit there?

    A: Our factory is located in Anhui province,China, about 1.5 hour by train from Shanghai.All of our customers,from home or abroad,welcome to visit us!



    Q.If the products can be customized?

    A: Yes,OEM & ODM service capability, custom designs and dimensions are acceptable.



    Q.How to pay?

    A: We accept payment terms by T/T(bank transfer),L/C, Paypal or West Union.



    Q.How long can we get the goods?

    A: Normally goods will get ready within 25 days after advance payment.

    paper mill stainless steel slotted screen basket for upflow pressure screen
