Slotted Basket and Perforated Basket for paper making industry

Slotted Basket and Perforated Basket for paper making industry

    • Slotted Basket and Perforated Basket for paper making industry
    • Slotted Basket and Perforated Basket for paper making industry
    • Slotted Basket and Perforated Basket for paper making industry
  • Slotted Basket and Perforated Basket for paper making industry

    Product Details:

    Place of Origin: Anhui screen basket supplier
    Brand Name: Sinostar
    Certification: ISO9001:2000,SGS,CE.
    Model Number: pressure screen basket

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: get latest prices
    Packaging Details: Wooden case
    Delivery Time: 20 days after your payment.
    Payment Terms: T/T or L/C
    Supply Ability: 100 pcs per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304ss,316ss. Type: Perforated,and Slotted.
    Diamension: According To Drawing. Chrome Plated: 250 Micron
    Applications: Paper And Pulp Pressure Screen.

    Slotted Basket and Perforated Basket for paper making industry

    Slotted Basket and Perforated Basket for paper making industry

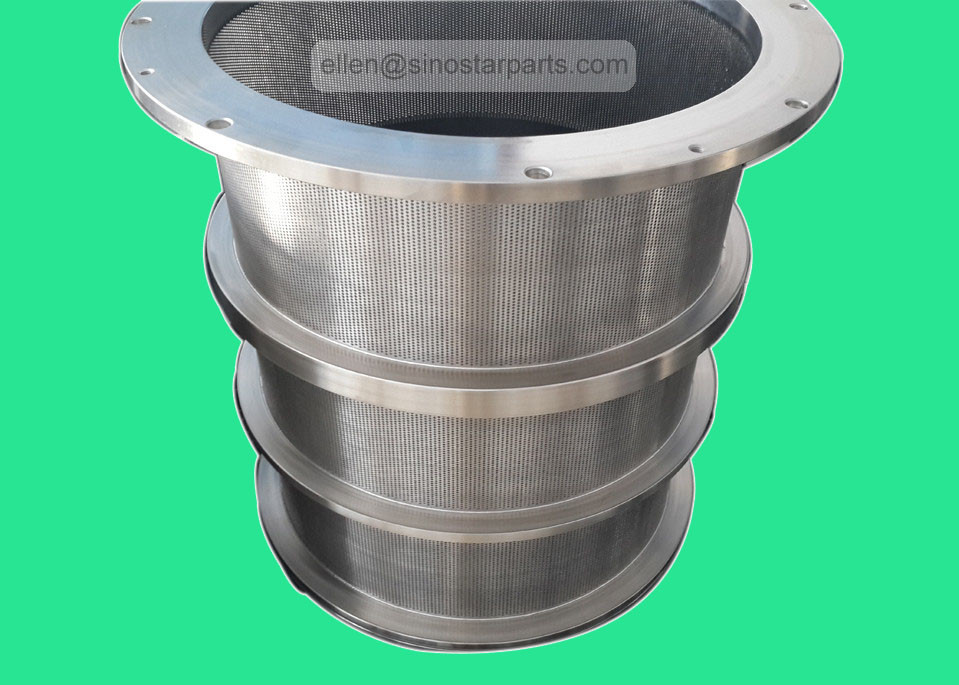

    Material stainless steel Type perforated
    Inside diameter 500mm Height 505mm
    Hole size 2.5mm Chrome plated 250 micron
    Weight 50kgs Packing size 620x620x560mm

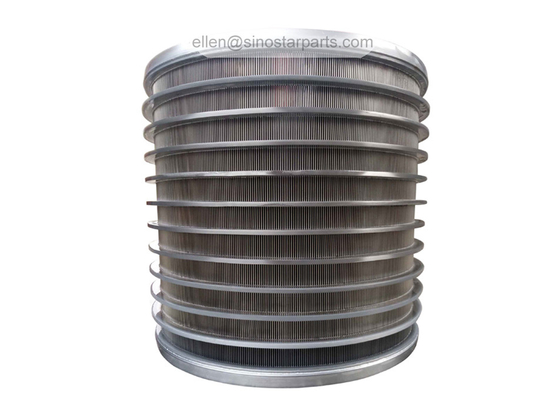

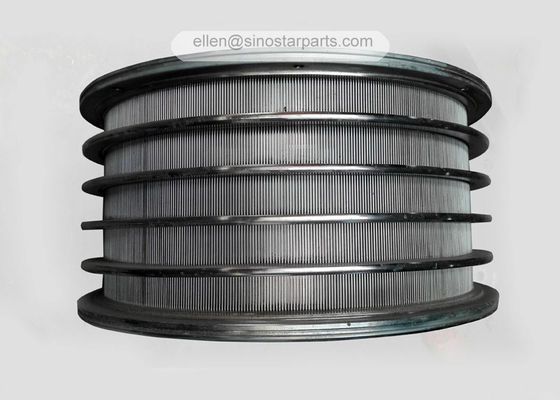

    HIFLO HOLE & SLOTTED BASKETS
    HOLE : 1.2MM ONWARD, sLOT:0.10MM Onward
    Size: up to 1200 mm dia
    Where the end product characteristics such as brightness, opacity, strength and printability are determined. Hence clean-liness of pulp is essential in terms of stickies, shives and dirt speck contents. As a manufacturer of stock preparation screening equipment. Maanshan Sinostar has developed the advanced technology. Maanshan Sinostar screen baskets are available for fine and coarse screening to meet the challenge of quality product
    • Large open screening area
    • Highest slot width accuracy
    • No fibre hang ups
    • Low pressure drop
    • Excellent surface quality, free of burs.
    • Electro polished
    • Hard chrome coating
    • Suitable for removing dimensionally unstable impurities.
    • Special rotor design avoids string formation.
    • Gentle screening.
    • Computerised dynamically balanced rotor.

    Applications:

          Be suitable for all kinds pressure screen in pulp making system and paper making system.



    Approach flow

    Recycled :OCC, Mixed waste, Waste Paper,DIP,etc.

    Mechanical pulp

    Kraft pulp



    Product instruction

    We are specialized in paper and pulp industry for years, mainly supply all kinds of paper and pulp machinery spare parts. For screen baskets, we are manufacturing pressure screen baskets, outflow screen baskets, inflow screen baskets,wedge wire screen baskets,etc.



    Outflow pressure screen basket is classified by the flow way of the pulp, the rotary wing spins in the basket to make the pulp flow out from the slot naturally to get good pulp with different purpose. It can be used in many links in pulp and paper line. Regarding to pressure basket, the main point is position when it works and also the result the user want to reach, designing the whole construction and shape the grade bar to ensure the operation intensity and output and quality of the pulp.



         Inflow pressure screen basket is classified by the flow way of the pulp,but the inflow pressure is divided      to out rotary wing and inner rotary wing. The characteristic of out rotary wing inner flow pressure                screen is that the rotary wing is in the outside of screen. When it works, the heavy impurity in the pulp        can be tossed outside due to centrifugal. In the mean time fiber is nearby the screen due to it is tiny          mass. With this specialty, it has the performance of seldom pulp plugging, less wear and moderate of        filter.



    More pressure screen baskets:

    Slotted Basket and Perforated Basket for paper making industry

    Slotted Basket and Perforated Basket for paper making industry

    Slotted Basket and Perforated Basket for paper making industry

    Screen baskets package:

    Slotted Basket and Perforated Basket for paper making industry

    Slotted Basket and Perforated Basket for paper making industry

    Slotted Basket and Perforated Basket for paper making industry

    Slotted Basket and Perforated Basket for paper making industry
