paper machine stainless steel wedge wire slotted outflow pressure screen basket

paper machine stainless steel wedge wire slotted outflow pressure screen basket

    • paper machine stainless steel wedge wire slotted outflow pressure screen basket
    • paper machine stainless steel wedge wire slotted outflow pressure screen basket
    • paper machine stainless steel wedge wire slotted outflow pressure screen basket
  • paper machine stainless steel wedge wire slotted outflow pressure screen basket

    Product Details:

    Place of Origin: Anhui screening basket
    Brand Name: Sinostar
    Certification: ISO9001:2000,SGS,CE.
    Model Number: screen basket

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc.
    Price: USD 5000-5600 per piece.
    Packaging Details: Wooden case.
    Delivery Time: 20 days after your payment.
    Payment Terms: T/T or L/C
    Supply Ability: 100 pcs per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304ss. Type: Wedge Wire, Outflow Type.
    Chrome Plated: 250 Micron. Dimension: As Per Confirmed Drawing.
    Application: Paper Machine.

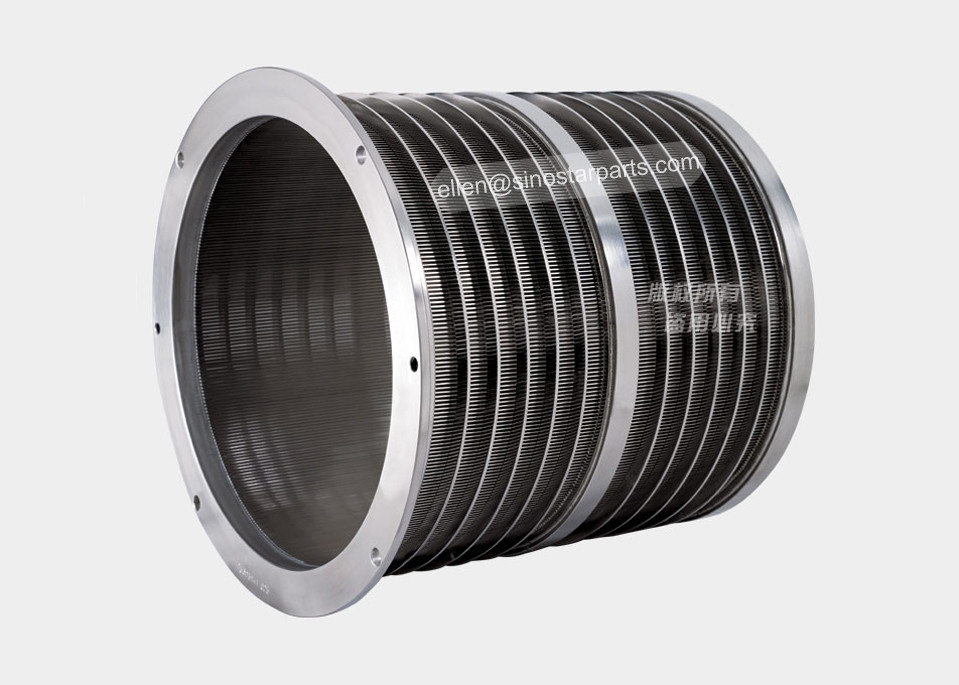

    Paper machine stainless steel wedge wire slotted outflow pressure screen basket

    paper machine stainless steel wedge wire slotted outflow pressure screen basket

    Material stainless steel 304ss. Type wedge wire, slotted.
    Inner diameter 991mm. Height 1200mm.
    Screen slot 0.30mm. Packing size 1145x1145x1320mm.
    Weight 325kgs. Unit price USD 5350 per piece.



    Features:

    • Mechanically held wires, built in the round.
    • Rugged, high mechanical strength.
    • Electric-chemical polish: no fiber string.
    • Precise slot-width tolerance.
    • High wear resistance.
    • High impact resistance.
    • Larger open area.
    • Self-supporting structure.
    • Non-plugging slot design.
    • Lower operation and maintenance cost.
    • Available for outward and inward flow screens.

    Benefits:

    1. High shive and stickies removal efficiency.
    2. Maximized flow capacity.
    3. Durable,extended operating life.
    4. Application flexibility.
    5. Advanced technology, high machining accuracy,

    Applications:

    Be suitable for all kinds pressure screen in pulp making system and paper making system.



    Approach flow

    Recycled :OCC, Mixed waste, Waste Paper,DIP,etc.

    Mechanical pulp

    Kraft pulp

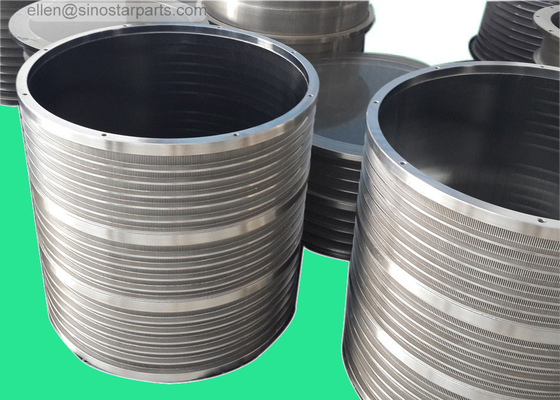

    Screen baskets produce processing:

    paper machine stainless steel wedge wire slotted outflow pressure screen basketpaper machine stainless steel wedge wire slotted outflow pressure screen basket

    paper machine stainless steel wedge wire slotted outflow pressure screen basket

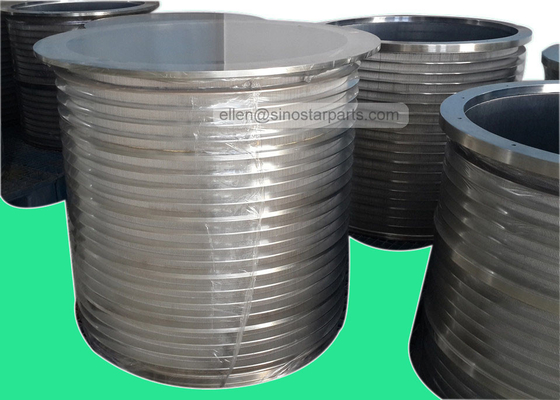

    Screen baskets package:

    paper machine stainless steel wedge wire slotted outflow pressure screen basket

    paper machine stainless steel wedge wire slotted outflow pressure screen basketpaper machine stainless steel wedge wire slotted outflow pressure screen basket



    Company introduction

    Maanshan Sinostar Industrial Co.,Ltd is an industrial and trading company. One of the leading exporters of Screen Baskets in China, started it’s business in an effort to meet the growing needs and requirements of customer’s Pulp & Paper Industry.We are specialized in paper processing machinery parts for many years,our products as below:



    1.Paper making clothing: polyester forming fabrics,spiral dryer fabrics,paper making felts,sludge dewatering belt,stainless steel wire mesh,etc.



    2.Pulp cleaning equipments: high density cleaner,low density cleaner,centrifugal cleaners,etc.



    3.Other Papermaking machinery parts: doctor blades,paper making spray nozzles,pressure

    screen baskets,screen plates,disc refiner plates,etc.



    wherever you are,Sinostar products can be sent to you any part of the world quickly and customer can assured in using it.Today Sinostar is enjoying a prominent position in Pulp & Paper industry supplying them with advanced technologies, equipments and proved services.

    paper machine stainless steel wedge wire slotted outflow pressure screen basket
