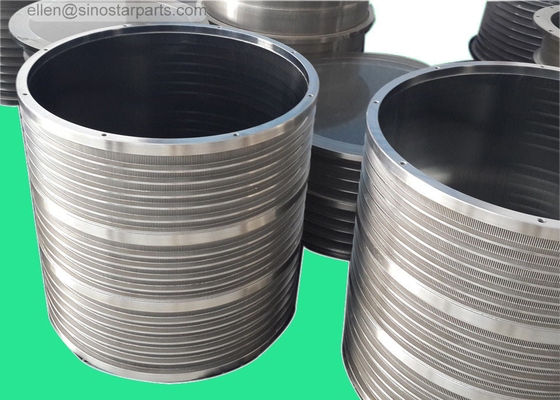

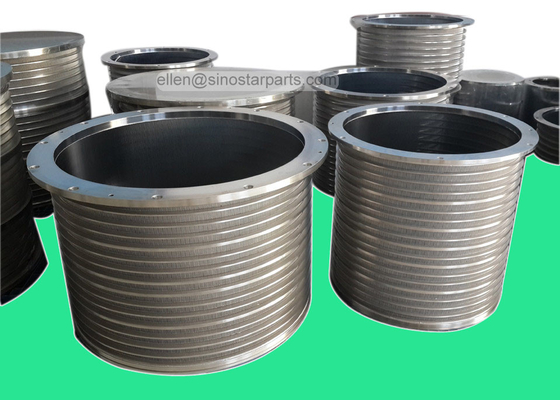

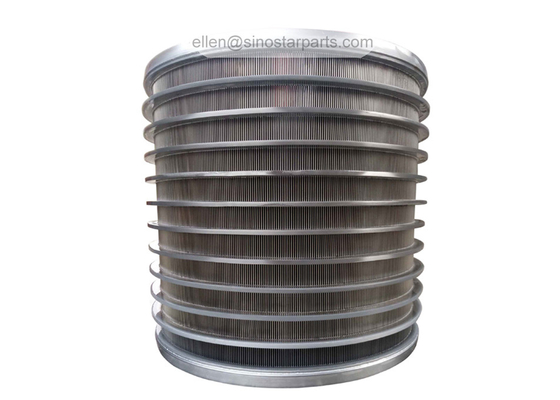

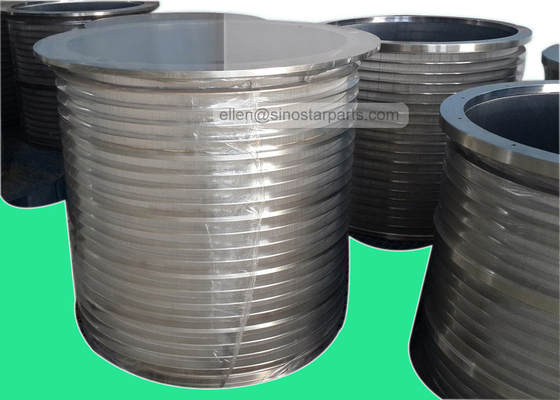

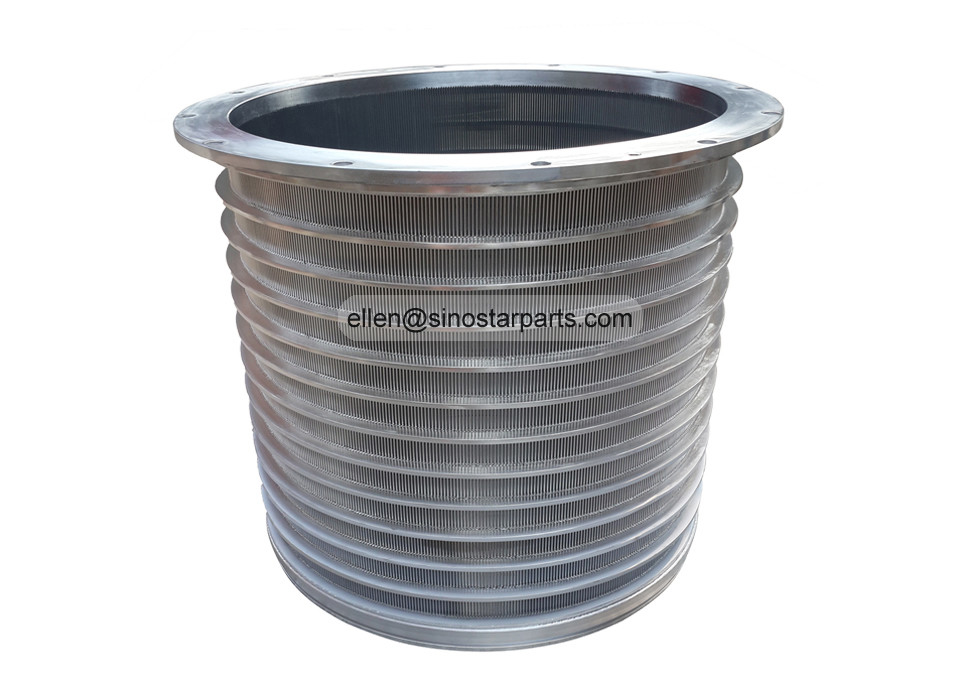

Paper making pressure screen stainless steel wedge wire screen drum

Paper making pressure screen stainless steel wedge wire screen drum

    • Paper making pressure screen stainless steel wedge wire screen drum
    • Paper making pressure screen stainless steel wedge wire screen drum
    • Paper making pressure screen stainless steel wedge wire screen drum
    • Paper making pressure screen stainless steel wedge wire screen drum
    • Paper making pressure screen stainless steel wedge wire screen drum
  • Paper making pressure screen stainless steel wedge wire screen drum

    Product Details:

    Place of Origin: Anhui pressure screen
    Brand Name: Sinostar
    Certification: ISO9001:2000,SGS,CE.
    Model Number: Screen Basket

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc.
    Price: get latest prices.
    Packaging Details: Wooden case.
    Delivery Time: 20 days after your payment.
    Payment Terms: T/T or L/C
    Supply Ability: 150 sets per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304ss,316ss. Type: Wedge Wire, Outflow.
    Chrome Plated: 250 Micron. Dimension: As Per Confirmed Drawing.
    Application: Paper Making Pressure Screen.

    Paper making pressure screen stainless steel wedge wire screen drum

     Paper making pressure screen stainless steel wedge wire screen drum

    Main technical specification
    Basket size 598x600mm.
    Screen slot size 0.20mm.
    Minimum slot width 0.10mm.
    Min. orifice diameter dia0.8mm dia0.8mm.
    Material 316ss, 304ss, 201ss.
    chrome platting layer thickness 0.2---0.3mm.
    Basket cylindrical accuracy 0.05mm.
    Electric-chemical polish no fiber stringing.























    Features:

    • Mechanically held wires, built in the round.
    • Rugged, high mechanical strength.
    • Electric-chemical polish: no fiber string.
    • Precise slot-width tolerance.
    • High wear resistance.
    • High impact resistance.
    • Larger open area.
    • Self-supporting structure.
    • Non-plugging slot design.
    • Lower operation and maintenance cost.
    • Available for outward and inward flow screens.

    Benefits:

    1).Advanced technology support.
    2).Personal proposal as per customer's needs.
    3).Quality control is ISO9000 which ensure customer's paper product quality, reduce production cost and the energy.



    Applications:

    Be suitable for all kinds pressure screen in pulp making system and paper making system.



    Approach flow

    Recycled :OCC, Mixed waste, Waste Paper,DIP,etc.

    Mechanical pulp

    Kraft pulp



    Screen baskets introduction:

    We are specialized in paper and pulp industry for years, mainly supply all kinds of paper and pulp machinery spare parts. For screen baskets, we are manufacturing pressure screen baskets, outflow screen baskets, inflow screen baskets,wedge wire screen baskets,etc.



    Outflow pressure screen basket is classified by the flow way of the pulp, the rotary wing spins in the basket to make the pulp flow out from the slot naturally to get good pulp with different purpose. It can be used in many links in pulp and paper line. Regarding to pressure basket, the main point is position when it works and also the result the user want to reach, designing the whole construction and shape the grade bar to ensure the operation intensity and output and quality of the pulp.



    Inflow pressure screen basket is classified by the flow way of the pulp,but the inflow pressure is divided to out rotary wing and inner rotary wing. The characteristic of out rotary wing inner flow pressure screen is that the rotary wing is in the outside of screen. When it works, the heavy impurity in the pulp can be tossed outside due to centrifugal. In the mean time fiber is nearby the screen due to it is tiny mass. With this specialty, it has the performance of seldom pulp plugging, less wear and moderate of filter.



    Screen baskets produce processing:

    Paper making pressure screen stainless steel wedge wire screen drum

    Paper making pressure screen stainless steel wedge wire screen drum

    Paper making pressure screen stainless steel wedge wire screen drum

    Screen baskets package:

    Paper making pressure screen stainless steel wedge wire screen drum

    Paper making pressure screen stainless steel wedge wire screen drum

    Paper making pressure screen stainless steel wedge wire screen drum



    More related screen baskets for paper making:

    Paper making pressure screen stainless steel wedge wire screen drumPaper making pressure screen stainless steel wedge wire screen drumPaper making pressure screen stainless steel wedge wire screen drum

    Paper making pressure screen stainless steel wedge wire screen drum
