Maanshan Sinostar Industrial Co., Ltd

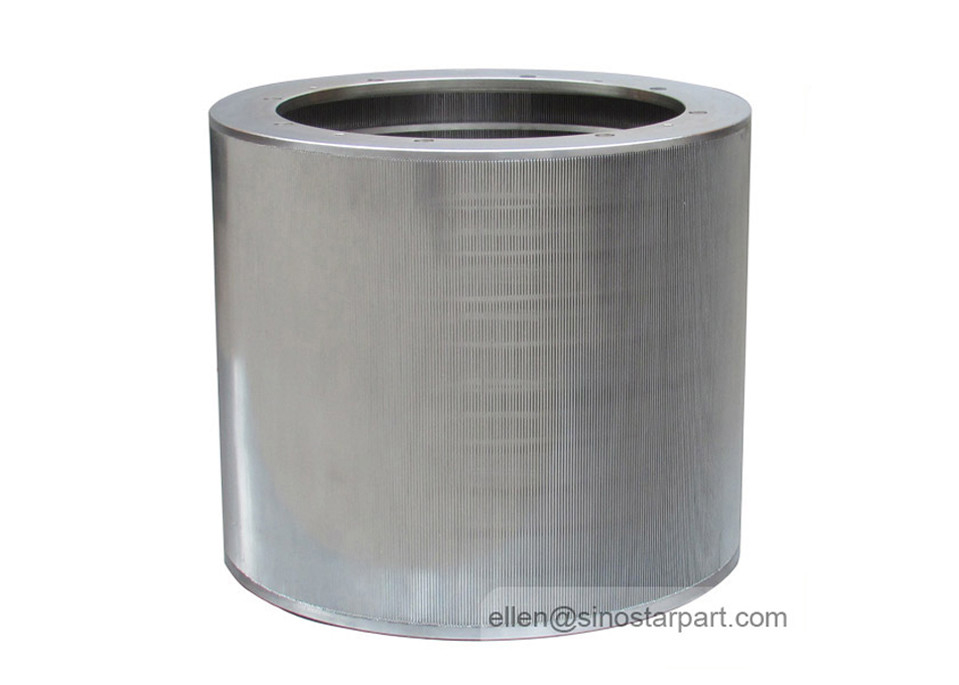

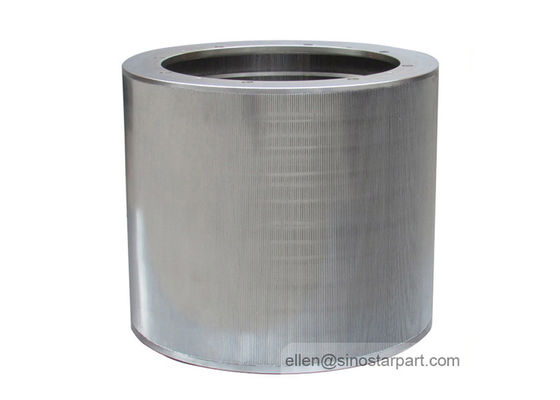

paper pulping equipment inflow stainless steel pressure screen basket

paper pulping equipment inflow stainless steel pressure screen basket

Product Details:

Place of Origin: Anhui, China.
Brand Name: Sinostar
Certification: ISO9001:2000,SGS,CE.
Model Number: inflow screen basket

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: USD 3200-3600 piece
Packaging Details: Wooden case
Delivery Time: 25-30 work days
Payment Terms: T/T or L/C, Western Union
Supply Ability: 100 pcs per month
Contact Now
Detailed Product Description
Material: Stainless Steel 304ss, 316L. Type: Infow Screen Basket
Basket Size: 755X830mm Slot Size: 0.30mm
Application: Pulping Equipment

Paper pulping equipment inflow stainless steel pressure screen basket

paper pulping equipment inflow stainless steel pressure screen basket

Material
Stainless steel
Type
Wedge wire
Flow configuration
Inward flow basket
Screen slot size
0.30mm
Inside diameter
755mm
Packing size
940X940X940mm
Height
830mm
Chrome plated
250Micron



Application:

It can be coarse screen or a fine screen for all kinds of stock and different screening process.



Design Feature



It is suitable to be as fine screen for waste paper.the screen cylinder gains long life and high throughput with the bar structure.it is convenient to clean the screen slot with high pulsing frequency in the structure of multifoil or drum rotor. The multifoil rotor promotes the axial mixture for the stock to avoid stock thickening in the screening process.

  • Good adaptability with high production capability.
  • High production efficiency with high flow speed.
  • High removal of the adhesive materials.
  • Lower power consumption.simple structure and easy maintenance.

The capability may be different according to different pulp variety and concentration,so the capability in the below chart is only used for choosing the model.



Inflow Processing Specification
Material SUS 316L
Width of slot 0.1mm
Size Min Max
Inside Diameter 305mm 1900mm
Height of screen 267mm 1650mm
Thickness of screen plate 5mm 10mm

paper pulping equipment inflow stainless steel pressure screen basket

Sinostar Screens offers the largest selection of basket design in the industry.
paper pulping equipment inflow stainless steel pressure screen basket

paper pulping equipment inflow stainless steel pressure screen basket

paper pulping equipment inflow stainless steel pressure screen basket

Our pressure screen baskets are custom designed and manufactured to meet customer specifications. Available in wedge wire, electron beam drilled or milled slotted, these baskets add quality to any pressure screen assembly.These baskets can also be designed to fit headbox applications. All of our screening products are based on sound science.Not guesswork or myths or magic wands – but a thorough understanding of physics, fluid dynamics, mechanical forces, slot tolerances, rotor clearances, and the nuances of pulp suspensions.

We continually evaluate and invest in new manufacturing technologies to ensure:

  • Superior strength
  • Excellent roundness
  • Precise slot tolerance
  • Outstanding surface finish

Our cylinders are delivered with minimal lead times and consistent quality to lower the total cost of screening for our customers.we use our knowledge and experience to select the wire that best fits your process parameters,production levels,and quality requirements.



Product range

Sinostar Industry Co.,Ltd is an industrial and trading company.

We are specialized in paper processing machinery parts for many years,our main products:



1.paper making clothing,including: polyester forming fabrics,spiral dryer fabrics,sludge dewatering belt,screen printing mesh,stainless steel wire mesh,etc.



2.Paper and pulp cleaner,including: high density cleaner, low density cleaner.



3.Other Paper-making parts,including: doctor blades,spray nozzles,pressure screen baskets,refinerr plates,etc.



Whereever you are,Sinostar products can be sent to you any part of the world quickly and cusotmer can assured in using it.
