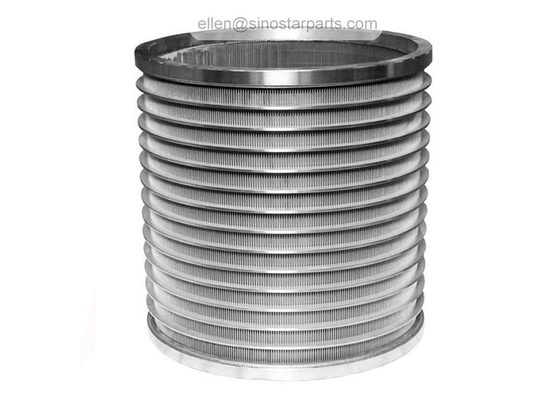

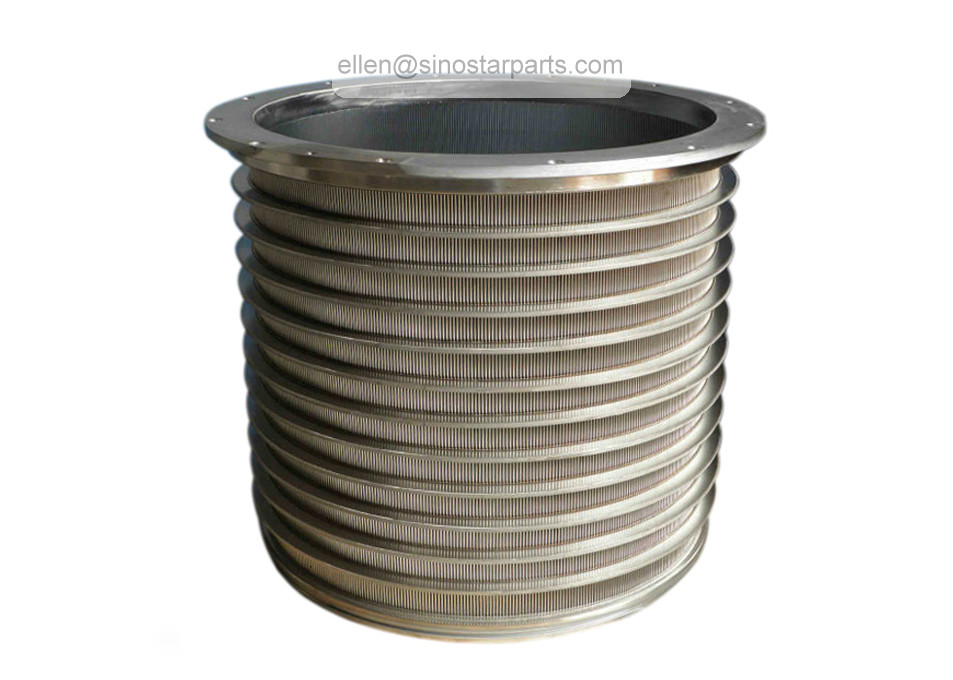

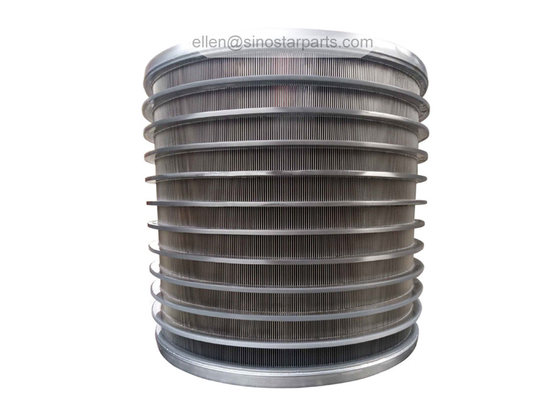

paper making industry milling type stainless steel pressure screen basket

paper making industry milling type stainless steel pressure screen basket

    • paper making industry milling type stainless steel pressure screen basket
    • paper making industry milling type stainless steel pressure screen basket
    • paper making industry milling type stainless steel pressure screen basket
  • paper making industry milling type stainless steel pressure screen basket

    Product Details:

    Place of Origin: Anhui, China.
    Brand Name: Sinostar
    Certification: ISO9001:2000,SGS,CE.
    Model Number: pressure screen basket

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 3000-3500 piece
    Packaging Details: Wooden case
    Delivery Time: 20-25 work days
    Payment Terms: T/T or L/C, Western Union
    Supply Ability: 1000 pcs per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304ss, 316L. Basket Inner Diameter: 795mm
    Basket Height: 810mm Slot Size: 0.25mm
    Application: Pulping Equipment

    Paper making industry milling type stainless steel pressure screen basket

    paper making industry milling type stainless steel pressure screen basket
    Material
    Stainless steel
    Type
    Wedge wire
    Flow configuration
    Outward flow basket
    Screen slot size
    0.25mm
    Inside diameter
    795mm
    Packing size
    1015X1015X930mm
    Height
    810mm
    Chrome plated
    250Micron



    Application:

    It can be coarse screen or a fine screen for all kinds of stock and different screening process.



    Design Feature



    It is suitable to be as fine screen for waste paper.the screen cylinder gains long life and high throughput with the bar structure.it is convenient to clean the screen slot with high pulsing frequency in the structure of multifoil or drum rotor. The multifoil rotor promotes the axial mixture for the stock to avoid stock thickening in the screening process.

    • Good adaptability with high production capability.
    • High production efficiency with high flow speed.
    • High removal of the adhesive materials.
    • Lower power consumption.simple structure and easy maintenance.

    The capability may be different according to different pulp variety and concentration,so the capability in the below chart is only used for choosing the model.



    Outflow Processing Specification
    Material SUS 316L
    Width of slot 0.1mm
    Size Min Max
    Inside Diameter 305mm 1900mm
    Height of screen 267mm 1650mm
    Thickness of screen plate 5mm 10mm

    paper making industry milling type stainless steel pressure screen basket

    Sinostar Screens offers the largest selection of basket design in the industry.
    paper making industry milling type stainless steel pressure screen basket

    paper making industry milling type stainless steel pressure screen basket

    paper making industry milling type stainless steel pressure screen basket

    Our pressure screen baskets are custom designed and manufactured to meet customer specifications. Available in wedge wire, electron beam drilled or milled slotted, these baskets add quality to any pressure screen assembly.These baskets can also be designed to fit headbox applications. All of our screening products are based on sound science.Not guesswork or myths or magic wands – but a thorough understanding of physics, fluid dynamics, mechanical forces, slot tolerances, rotor clearances, and the nuances of pulp suspensions.

    We continually evaluate and invest in new manufacturing technologies to ensure:

    • Superior strength
    • Excellent roundness
    • Precise slot tolerance
    • Outstanding surface finish

    Our cylinders are delivered with minimal lead times and consistent quality to lower the total cost of screening for our customers.we use our knowledge and experience to select the wire that best fits your process parameters,production levels,and quality requirements.



    Product range

    Sinostar Industry Co.,Ltd is an industrial and trading company.

    We are specialized in paper processing machinery parts for many years,our main products:



    1.paper making clothing,including: polyester forming fabrics,spiral dryer fabrics,sludge dewatering belt,screen printing mesh,stainless steel wire mesh,etc.



    2.Paper and pulp cleaner,including: high density cleaner, low density cleaner.



    3.Other Paper-making parts,including: doctor blades,spray nozzles,pressure screen baskets,refinerr plates,etc.



    Whereever you are,Sinostar products can be sent to you any part of the world quickly and cusotmer can assured in using it.
