Outflow Interference stripes pressure screen basket for paper and pulp mill

    • Outflow Interference stripes pressure screen basket for paper and pulp mill
    • Outflow Interference stripes pressure screen basket for paper and pulp mill
    • Outflow Interference stripes pressure screen basket for paper and pulp mill
  • Outflow Interference stripes pressure screen basket for paper and pulp mill

    Product Details:

    Place of Origin: Maanshan,Anhui
    Brand Name: Sinostar
    Certification: ISO9001:2000,SGS,CE.
    Model Number: outflow screen basket

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc.
    Price: get latest prices
    Packaging Details: Wooden case
    Delivery Time: 25 days after your deposit.
    Payment Terms: T/T , L/C or Paypal
    Supply Ability: 150 pcs per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304ss. Type: Wedge Wire, Slotted.
    Flow Type: Outflow Chrome Plated: 250 Micron.
    Application: Paper And Pulp Industries.

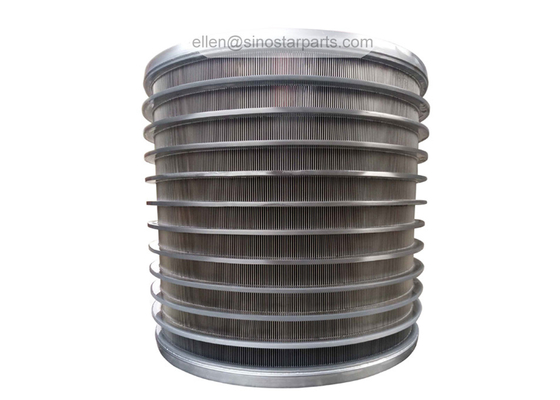

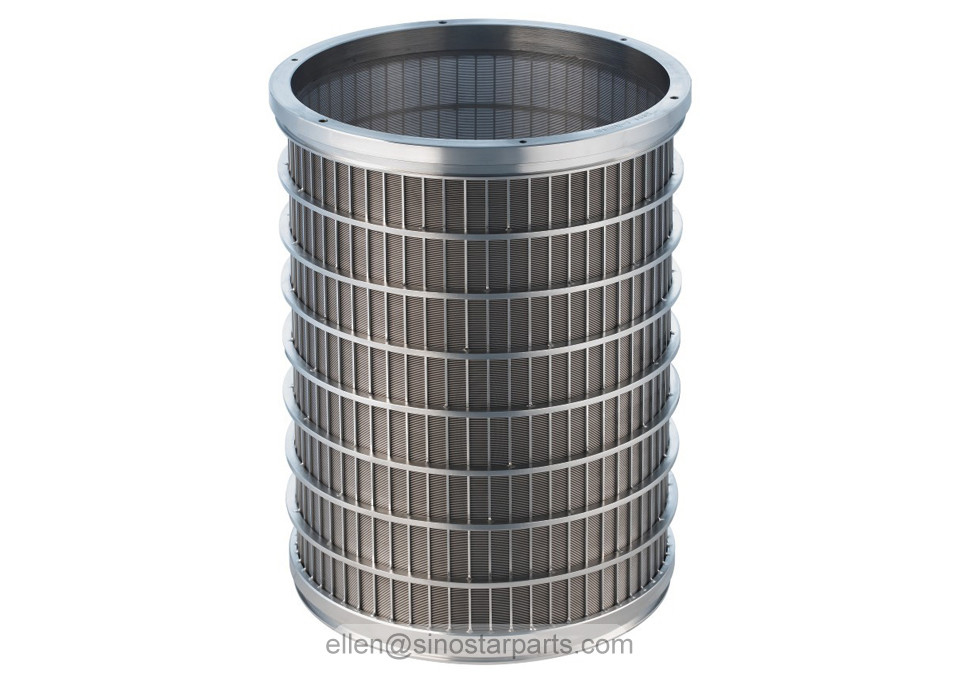

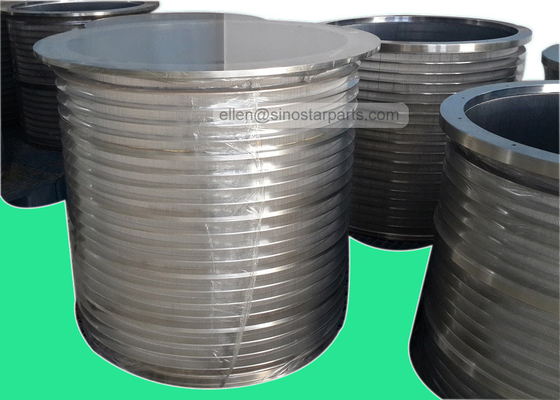

    Outflow Interference stripes pressure screen basket for paper and pulp mill
    Outflow Interference stripes pressure screen basket for paper and pulp mill

    Outflow Processing Specification
    SizeMinMax
    Inside Diameter305mm1900mm
    Height of Screen267mm1650mm
    Thickness of Screen Plate5mm10mm
    width of Slot0.1mm
    MaterialStainless steel 304ss
    Sinostar Screens offers the largest selection of basket design in the industry. Our pressure screen baskets are custom designed and manufactured to meet customer specifications. Available in wedge wire, electron beam drilled or milled slotted, these baskets add quality to any pressure screen assembly.These baskets can also be designed to fit headbox applications.All of our screening products are based on sound science.Not guesswork or myths or magic wands – but a thorough understanding of physics, fluid dynamics, mechanical forces, slot tolerances, rotor clearances, and the nuances of pulp suspensions.

    We continually evaluate and invest in new manufacturing technologies to ensure:

    • Superior strength
    • Excellent roundness
    • Precise slot tolerance
    • Outstanding surface finish

    Our cylinders are delivered with minimal lead times and consistent quality to lower the total cost of screening for our customers.We use our knowledge and experience to select the wire that best fits your process parameters,production levels,and quality
    requirements.

    Reducing the total cost of screening
    We have thoroughly analyzed the costs of screening for a variety of furnishes and how these costs relate to one another.
    We have the experience and the products to attack the major cost factors –helping you reduce the total cost of screening
    without sacrificing reliability or performance.

    Reducing energy
    Screen energy consumption is primarily a function of rotor speed and design. Optimizing Sinostar wire shape with the existing rotor can significantly reduce the screen Thickening Factor (TF). A lower TF will result in better screen runnability.Often the existing rotor speed can then be reduced, saving energy without diminishing screening efficiency or capacity.

    Improving capacity
    Reducing wire width increases the open area of the screen cylinder without reducing slot size. The result is a screen with significantly higher capacity and no loss in efficiency.We have the largest selection of narrow wires available.

    Increasing efficiency
    Both the wire width and profile shape can be optimized to improve efficiency,based upon the contaminant that is targeted for removal. The screen cylinder’s open area determines the passing velocity, which influences the removal of deformable debris(stickies). Smaller debris is more effectively screened out by utilizing smaller slots.

    Advantage
    A good product starts from bit by bit. Stress on the particulars and make an industrial product as an artware,this is Sinostar's delighted pursuance.We give you a good product in a shortest possible time! Wherever your are, Sinostar's products can be sent to you to any part of the world quickly and the customer can be assured. Screen basket of Sinostar guarantees progressive lowering production cost,elevation of productivity improvement of quality for your company.

    Product range
    We are specialized in paper processing machinery parts for many years,our products as below:

    1.Paper making clothing,including: polyester forming fabrics,spiral dryer fabrics,sludge dewatering belt,screen printing mesh,stainless steel wire mesh,etc.

    2.Paper and pulp cleaner,including: high density cleaner, low density cleaner.

    3.Other Paper-making parts,including: doctor blades,spray nozzles,pressure screen baskets,refinerr plates,etc.whereever you are,Sinostar products can be sent to you any part of the world quickly and cusotmer can assured in using it.
