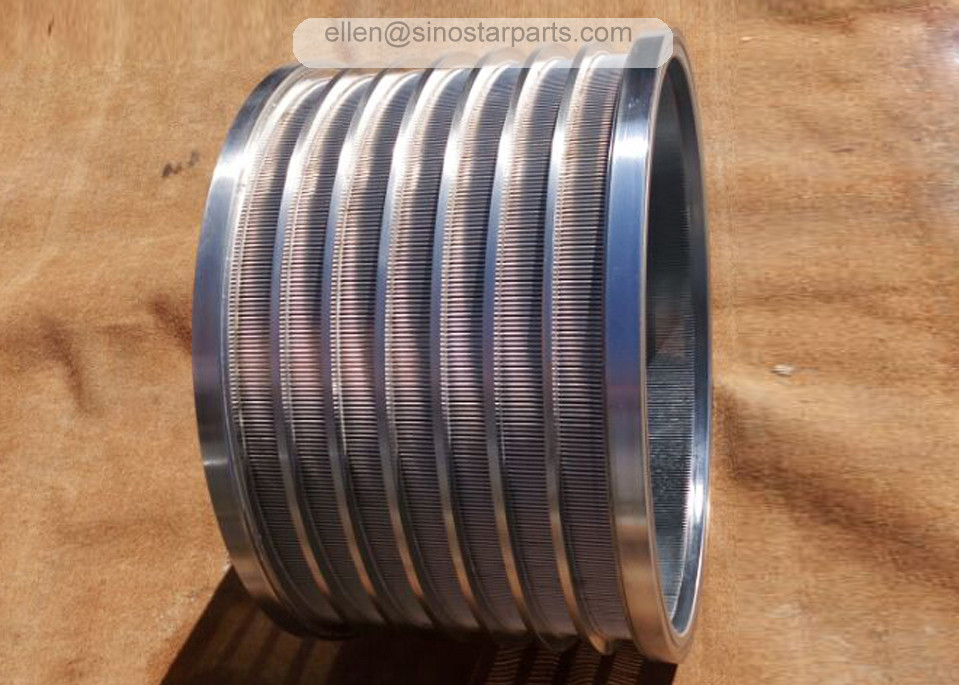

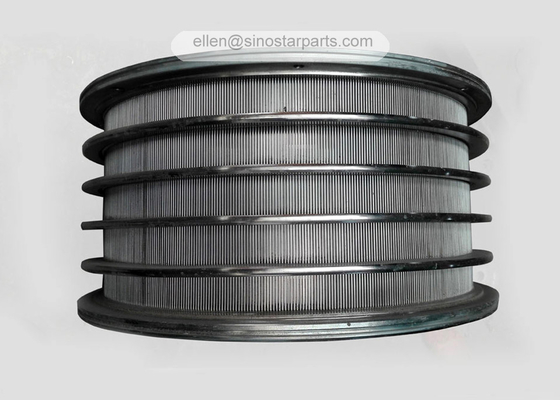

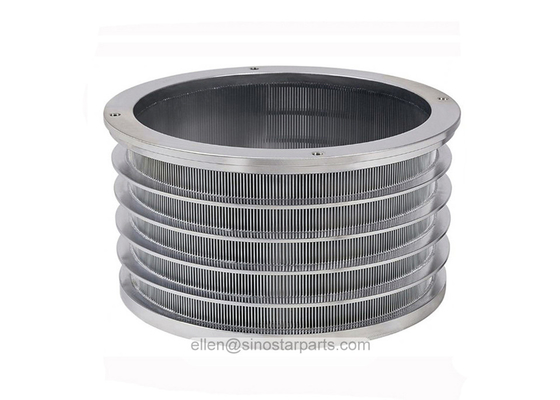

Paper mill wedge wire stainless steel slotted pressure screen basket

Paper mill wedge wire stainless steel slotted pressure screen basket

    • Paper mill wedge wire stainless steel slotted pressure screen basket
    • Paper mill wedge wire stainless steel slotted pressure screen basket
    • Paper mill wedge wire stainless steel slotted pressure screen basket
  • Paper mill wedge wire stainless steel slotted pressure screen basket

    Product Details:

    Place of Origin: Anhui,China
    Brand Name: Sinostar
    Certification: ISO9001:2000,SGS,CE.
    Model Number: screen basket

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: get latest prices
    Packaging Details: Wooden case
    Delivery Time: 25 days depend upon your QTY
    Payment Terms: T/T , L/C or Paypal
    Supply Ability: 150 sets per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304ss, 316ss. Type: Wedge Wire
    Flow Configuration: Outflow Size: Custom
    Chrome Plated: 250 Micron

    Paper mill wedge wire stainless steel slotted pressure screen basket

    Material stainless steel 304ss Type wedge wire
    Flow configuration outward flow basket Sreen slot  0.35mm
    Inside diameter 500mm Height 340mm
    Chrome plated 250 micron Packing size 560x560x440mm
    • Milling counter profile type will create turbulence flow, so that the screen cylinder cannot clog so easily.
    • Operate in a higher consistency and higher flow-rate.
    • Electrolytic polished and chrome coating will extend the life time of screen cylinders.



    Paper mill wedge wire stainless steel slotted pressure screen basket



    Sinostar Screens offers the largest selection of basket design in the industry.
    Our pressure screen baskets are custom designed and manufactured to meet customer specifications. Available in wedge wire, electron beam drilled or milled slotted, these baskets add quality to any pressure screen assembly.These baskets can also be designed to fit headbox applications.

    All of our screening products are based on sound science.Not guesswork or myths or magic wands – but a thorough understanding of physics, fluid dynamics, mechanical forces, slot tolerances, rotor clearances, and the nuances of pulp suspensions.

    We continually evaluate and invest in new manufacturing technologies to ensure:

    Superior strength

    Excellent roundness

    Precise slot tolerance

    Outstanding surface finish

    Our cylinders are delivered with minimal lead times and consistent quality to lower the total cost of screening for our customers.

    We use our knowledge and experience to select the wire that best fits your process parameters,production levels,and quality

    requirements.



    Reducing the total cost of screening

    We have thoroughly analyzed the costs of screening for a variety of furnishes and how these costs relate to one another.

    We have the experience and the products to attack the major cost factors –helping you reduce the total cost of screening

    without sacrificing reliability or performance.



    Reducing energy

    Screen energy consumption is primarily a function of rotor speed and design. Optimizing Sinostar wire shape with the existing rotor can significantly reduce the screen Thickening Factor (TF). A lower TF will result in better screen runnability.Often the existing rotor speed can then be reduced, saving energy without diminishing screening efficiency or capacity.



    Improving capacity

    Reducing wire width increases the open area of the screen cylinder without reducing slot size. The result is a screen with significantly higher capacity and no loss in efficiency.We have the largest selection of narrow wires available.



    Increasing efficiency

    Both the wire width and profile shape can be optimized to improve efficiency,based upon the contaminant that is targeted for

    removal. The screen cylinder’s open area determines the passing velocity, which influences the removal of deformable debris

    (stickies). Smaller debris is more effectively screened out by utilizing smaller slots.



    Advantage

    A good product starts from bit by bit. Stress on the particulars and make an industrial product as an artware,this is Sinostar's delighted pursuance.We give you a good product in a shortest possible time! Wherever your are, Sinostar's products can be sent to you to any part of the world quickly and the customer can be assured. Screen basket of Sinostar guarantees

    progressive lowering production cost,elevation of productivity improvement of quality for your company.
