paper making industry plain weave polyester flat wire dryer screen

paper making industry plain weave polyester flat wire dryer screen

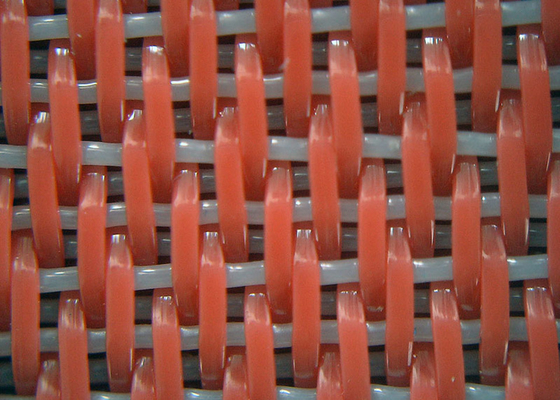

    • paper making industry plain weave polyester flat wire dryer screen

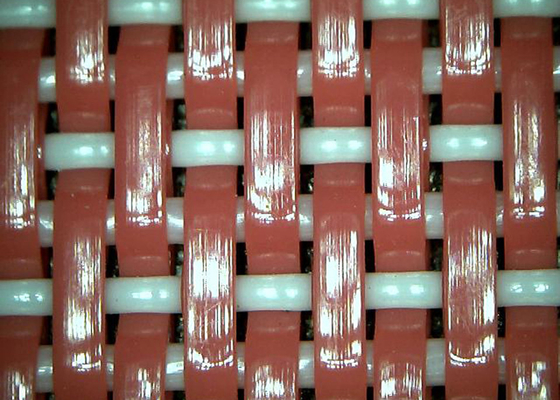

    • paper making industry plain weave polyester flat wire dryer screen

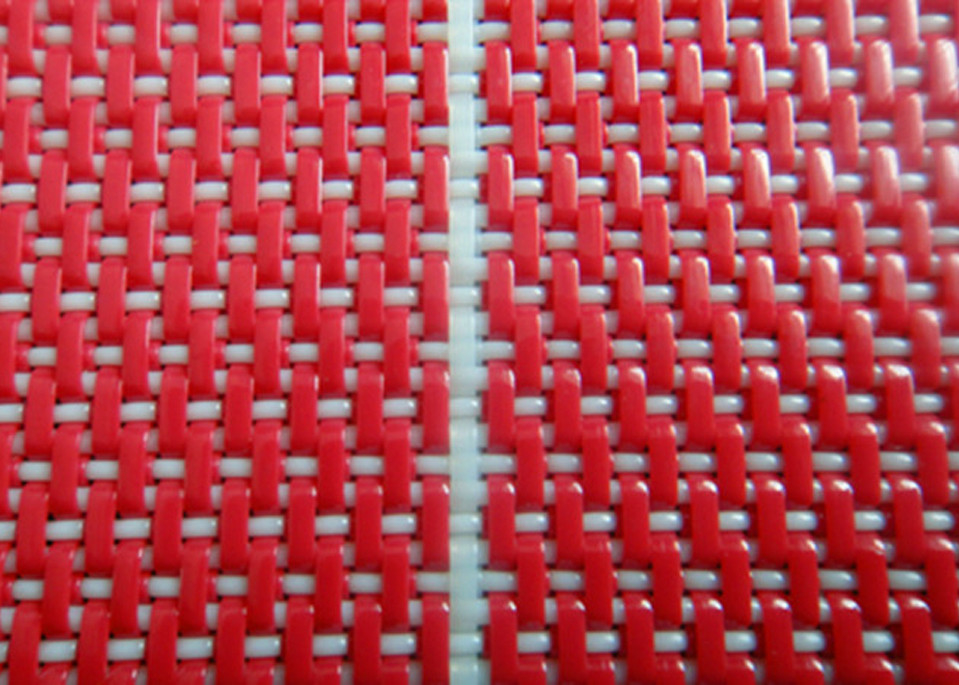

    • paper making industry plain weave polyester flat wire dryer screen
  • paper making industry plain weave polyester flat wire dryer screen

    Product Details:

    Place of Origin: Anhui, China.
    Brand Name: Sinostar
    Certification: ISO9001:2000,SGS.
    Model Number: polyester dryer screen

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 square meters
    Price: USD 12-18 square meter
    Packaging Details: PP bags and wooden box, standard export package.
    Delivery Time: 20-25 work days
    Payment Terms: T/T or L/C, Western Union
    Supply Ability: 3000 square meters per month
    Contact Now
    Detailed Product Description
    Technics: Plain Woven Color: Red
    Seam Type: Open Ended Type: Paper Making Dryer Fabric
    Supply Type: Make-to-order

    Paper making industry plain weave polyester flat wire dryer screen

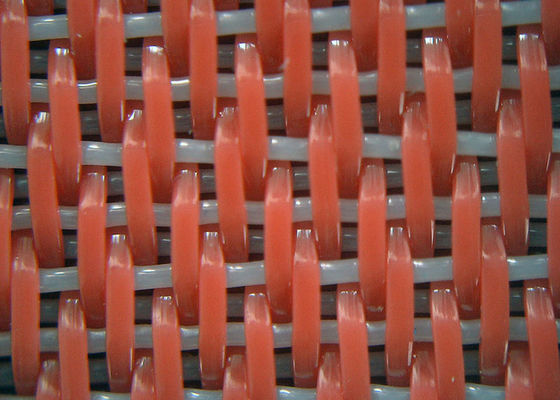

    paper making industry plain weave polyester flat wire dryer screen

    Features & Benefits

    • Waterproof,good air and water permeability
    • High strength,stable property
    • Shrink-resistant heat resistance under 180 degrees
    • Easy to clean and install,straight run
    • Dryers in single, double and triple layers
    • Filaments available in round or flat profiles
    • Hydrolysis resistant: PES, PPS, SuperClean, Teflon Seams
    • Long life, incompressible, smooth running
    • Recommended for all machines and all kinds of paper/ board

    Dryer fabric is a drying part of wet paper web. The conventional drying system can dry the wet web from 60% moisture to 2% moisture with help of drying fabrics. drying fabrics play an important roll for giving a final shape and parameters to the paper drying fabrics are also known as conveyor Belts. The sheet is mechanically pressed against the drying cylinders. These days these drying fabrics are also in use of Silent drive system in dryers. The selection of these dryer screen is depending on the paper grades, dryers configuration, dryers temperatures and many more parameters. Our drying fabrics have an average running life of three to Twelve months (even more than this which is depending on the usage and many more machine parameters.)



    Dryer fabric parameters
    Modle of fabric Wire Diameter(mm)

    Density

    (thread/cm)



    Air permeability

    (m3/m2h)

    Thickness

    (mm)

    Strength(N/cm)



    Warp Weft Warp weft Surface Jointing
    24503 0.5 0.5 24-25 11-12 6000 1.6 >2500 >1000
    24504 0.5 0.5 25-26 11-12 11000 2 >2500 >1000
    24504-1 0.5 0.5 24.5-25.5 11-12 7500 1.7 >2500 >1000
    4106-C-1 0.36x0.62 0.35/0.68 19-20 12-13 4000 1.5 >1800 >1000
    4106-C-2 0.36x0.62 0.35/0.68 19-20 14-15 3000 1.5 >1800 >1000
    4106-D-1 0.36x0.62 0.5 19-20 12-13 5000 1.4 >1800 >1000
    4106-D-2 0.36x0.62 0.5 19-20 15-16 3000 1.4 >1800 >1000
    4106-K-1 0.32x0.8 0.4/0.68 19-20 12-23 4500 1.45 >1900 >1000
    4106-K-2 0.32x0.8 0.4/0.68 19-20 14-15 3000 1.45 >1900 >1000



    According to the weaving,polyester dryer fabric can be divided into 3-shed,4-shed.


    According to the category,polyester dryer fabric can be divided into one and a half layer,double-layer and flat wire fabric;


    According to the joint types,polyester dryer fabric can be divided into insert,pin ring and spiral ring joint.


    3-shed one and a half layer is suitable for drying papers less than 70g.


    4-shed double-layer fabric is suitable for drying papers more than 70g.


    Flat wire dryer fabric is suitable for the fore hearing box of the drying zone.
