Place of Origin: | Anhui stainless screen plate |
Brand Name: | Sinostar |
Certification: | ISO9001:2000,SGS. |
Model Number: | screen plates |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | get latest prices |
Packaging Details: | wooden case |
Delivery Time: | 15 days |
Payment Terms: | T/T or L/C |
Supply Ability: | 500 pcs per month |

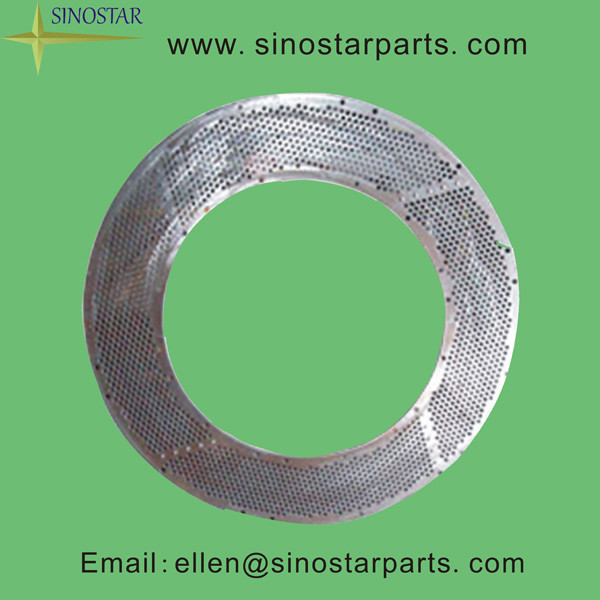

hole diameter 1.6mm,stainless steel screen plate
Material Specification
1.Screen size: OD 680 / ID 586 x H 645mm
2.Hole diameter: 1.6mm, profile screen / counter-sunk.
3.Material: AISI 304L, full body parts(low carbon stainless steel grade)
4.Hard Chromed: DURA-CHROME,200 micron.
5.Finishing: Electro-polishing and Buffing.
6.Surface Hardness: 54-56HRC with Tri-chrome plating.
7.Open area: 36.50%
Benefits:
1.high quality material
2.good dimensional stability
3.smooth surface treatment by EP.
4.Long span life for good anti-wear
5.No breakage by special welding
6. easily to clean with low pressuring
Application Uses
1.MDF,HDF Fiber Board / Food field
2.Stock Preparation Plant
