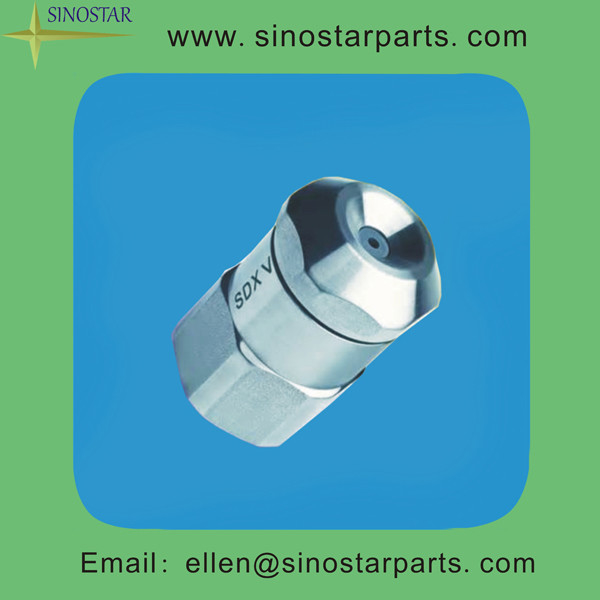

Stainless steel Hollow Cone Nozzles

Stainless steel Hollow Cone Nozzles

Stainless steel Hollow Cone Nozzles

Product Details:

Place of Origin: Anhui stainless steel nozzles
Brand Name: Maanshan Sinostar
Certification: ISO9001:2000
Model Number: hollow cone nozzle

Payment & Shipping Terms:

Minimum Order Quantity: 20 pcs
Price: 3-6 usd/piece
Packaging Details: Export standard packing in plastic
Delivery Time: Within a week
Payment Terms: T/T or L/C
Supply Ability: 20000 pcs per month
Contact Now
Detailed Product Description
Material: Stainless Steel 316 Condition: New
Spray Pattern: Hollow Cone Application: Dust Control, Cleaning, Washing, Paper Making Industry
Work Pressure: 0.3-35 Bar Thread Size: 1/8", 1/4", 3/8", 1/2", 3/4", 1"
Spray Angle: 0 To 120 Degree Free Sample: Available
Authenticate: CE,GMP,SGS

Stainless steel Hollow Cone Nozzles

The hollow cone pattern is characterized by the heavy concentration of droplets around the edge of the spray cone, Little or no fluid is deposited in the middle of the cone.

This spray pattern is a medium too low impact pattern being harder driving than the misting or full cone patterns

but with less impact than flat fan or solid stream patterns.

There are 4 designs of nozzle that can produce hollow cone patterns.Each of these design types is discussed in its own sub page which can be accessed by using the blue navigation menu to the right hand side of this page.Within these sub pages the features and benefits of each product family of that design type are highlighted.For ease of comparison the features of all our hollow cone nozzles are summarised in the hollow cone nozzle cheat sheet which can be accessed by the orange button also to the right hand side of this page.

The hollow cone nozzles spray pattern is essentially a circular ring of liquid.This pattern is generally formed by use of

an inlet tangential to a whirl chamber, or by an internal grooved vane immediately upstream from the orifice.

The whirling liquid results in a hollow cone configuration as it leaves the orifice.

Standard hollow cone nozzles feature a large and unobstructed flow passage, which minimizes or eliminates clogging.

The in-line style has a lower profile projection when installed in a tee or pipe header.

Spiral nozzles produce a hollow cone spray pattern with spray angles ranging from 50º to 180º.

Deflected-type spray nozzles feature a ring-shaped impact area. Angles of deflection available are 120º,150º,and 180º.

The hollow cone pattern is characterized by the heavy concentration of droplets around the edge of the spray cone.

Little or no fluid is deposited in the middle of the cone.
