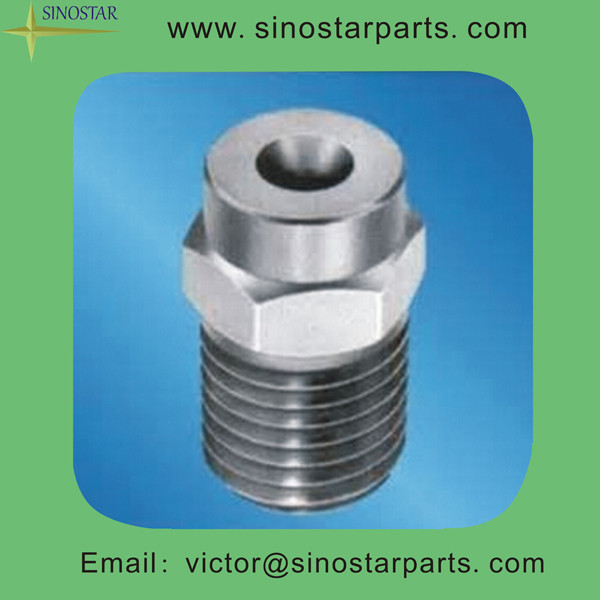

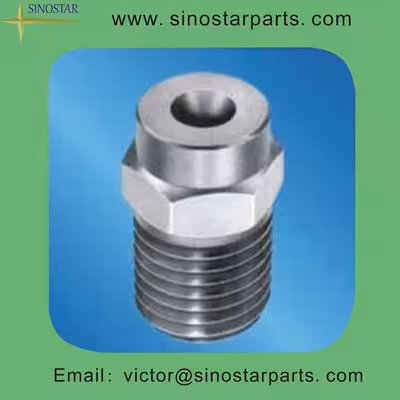

Stainless Steel Full Cone Spray Nozzles

Stainless Steel Full Cone Spray Nozzles

Stainless Steel Full Cone Spray Nozzles

Product Details:

Place of Origin: Anhui stainless steel nozzles
Brand Name: Sinostar spary nozzles
Certification: ISO9001:2000
Model Number: full cone spray nozzles

Payment & Shipping Terms:

Minimum Order Quantity: 20 pcs
Price: 3-6 usd/piece
Packaging Details: Export standard packing in plastic or carton box
Delivery Time: Within a week
Payment Terms: T/T or L/C
Supply Ability: 20000 pcs per month
Contact Now
Detailed Product Description
Material: Stainless Steel 316 Spray Nozzles Condition: New
Thread: Male And Female Application: Paper Machine Apart Cleaning
Advantage: Quality First,best Price Spray Pattern: Full Cone
Spary Angle: 30/60/90/120 Degrees And Standard Flow Rate: 0.5-192 L/min

Sinostar manufacture a wide range of full cone spray nozzles that are used in various applications. Above details provides some information for this kind full cone design, if you have any other special designs, please feel free to send me your request, welcome OEM&ODM.

Full cone pattern features

Full cone nozzles have a spray pattern that is round,square,or oval.the spray pattern is completely filled with drops. Using an internal vane,which impacts controlled turbulence to the liquid prior to the orifice, forms this pattern.

The full cone pattern delivers a relatively even coverage of fluid over a set area.  It should be remembered that the full cone pattern will only be maintained for a certain distance from the orifice, after which the spray generally forms a fog or mist.  The designs of nozzle described in this section are such that a genuine full cone pattern is maintained for as far as possible after exit.  If a homogeneous mist/fog is required then a misting pattern nozzle should be considered instead.

Full cone nozzle designs

There are four basic designs of nozzle that can be used to produce a full cone pattern:  Axial whirl, full cone tangential whirl, full cone spiral nozzles and full cone air atomising nozzles.  The spray properties, basic fluid mechanics and common applications of each can be found in the sub-sections of this page by following the links in the navigation menu to the right.  Within each sub-section further links can be found to the various spec sheets for each product range of that design type.  For easy reference a cheat sheet summarising the properties of all full cone nozzles is also linked to the right.

Our products show:

Stainless Steel Full Cone Spray Nozzles

Stainless Steel Full Cone Spray Nozzles

Stainless Steel Full Cone Spray Nozzles
