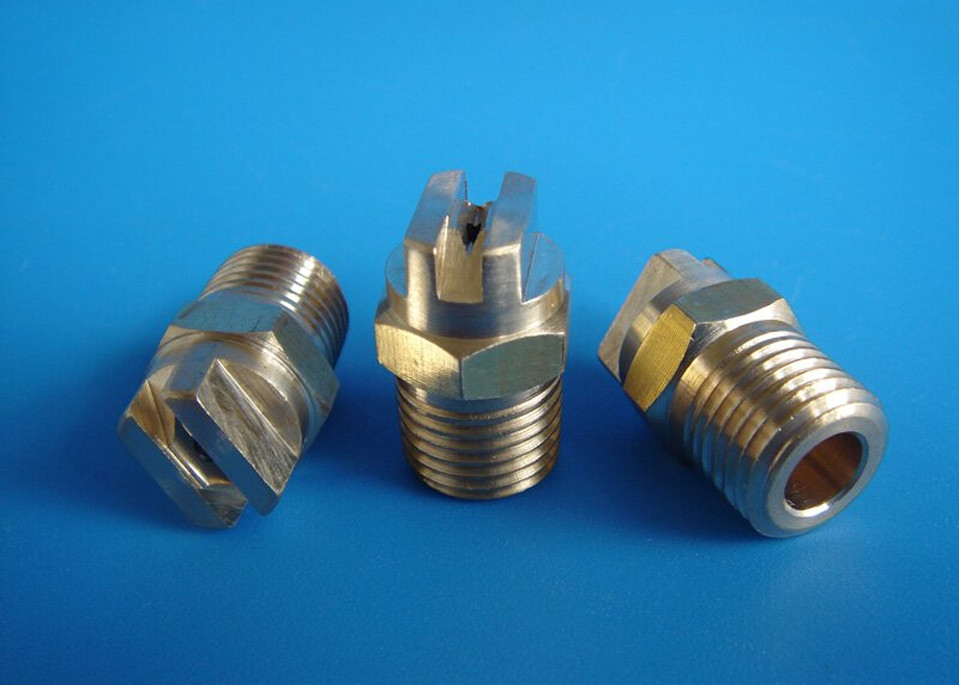

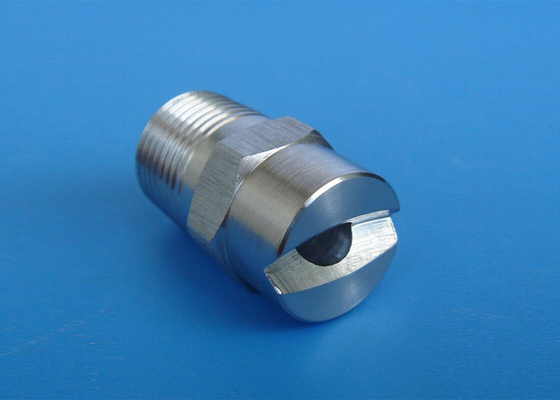

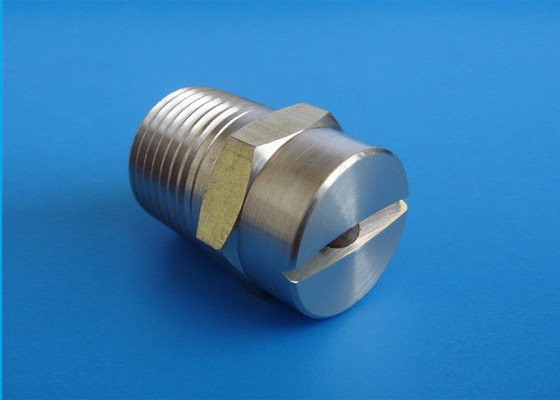

cleaning equipment water spray stainless steel vee jet flat fan nozzle

cleaning equipment water spray stainless steel vee jet flat fan nozzle

    • cleaning equipment water spray stainless steel vee jet flat fan nozzle
    • cleaning equipment water spray stainless steel vee jet flat fan nozzle
    • cleaning equipment water spray stainless steel vee jet flat fan nozzle
  • cleaning equipment water spray stainless steel vee jet flat fan nozzle

    Product Details:

    Place of Origin: Anhui, China.
    Brand Name: Sinostar
    Certification: ISO9001:2000
    Model Number: Flat fan nozzle

    Payment & Shipping Terms:

    Minimum Order Quantity: 30 pcs
    Price: USD 3-8 piece
    Packaging Details: Export standard packing in plastic or carton box
    Delivery Time: 5-8 work days
    Payment Terms: T/T or L/C, Western Union
    Supply Ability: 20000 pcs per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 303ss,304ss, 316L. Spray Angle: 15 To 110 Degree
    Thread Size: 1/8 To 2 Inch Thread Type: BSPT Or NPT
    Application: Cleaning And Spraying Pressure Range: 0.5 To 35 Bar
    Flow Rate: 0.15 To 13 L/min Spray Pattern: Flat Fan Shape

    Cleaning equipment water spray stainless steel vee jet flat fan nozzle

    cleaning equipment water spray stainless steel vee jet flat fan nozzle
    Flat fan nozzle pattern distributes the  liquid as a flat fan or sheet-type of spray.this mechanism can be adjusted to produce small to medium sized drops. It features uniform distribution over a wide range of flow rates and pressures, spray angles available from 0° or 110° at 40 psi (2.8 bar) and unobstructed flow passages that minimize clogging.Its specially tapered spray pattern is specifically designed for use in manifold and heasder applications. It also has high impact solid stream which essentially provides highest impact per unit area.


    Parameter sheet

    Material Stainless steel 304ss, 316L
    Thread 1/8, 1/4, 3/8 1/2, 3/4 or 1 inch male/female BSPT/NPT
    Spray pattern Flat fan spray
    Spray angle from 0 to 110 degree.
    Capacity Wide range
    Pressure range from 0.5 to 35 bar.
    Strainer without
    Conection 1" to 2" BSPT or NPT.
    Flow rate 0.2L/min, 0.39L/min up to 790L/min at 3 bar.
    Construction One-piece without internal part



    Design Features

    veejet nozzle-types


    Standard Nozzle type

    Inlet Conn.

    (in)

    Length

    "L"(in)

    Hex

    (in)

    N.W.

    (oz.)

    veejet nozzle type-1

    H-VV

    (Male)

    1/8 7/8 1/2 1/2
    1/4 29/32 9/16 3/4
    veejet nozzle type-2

    H-VVL

    (Male)

    1/8 1-13/32 1/2 3/4
    1/4 1-1/2 9/16 1
    veejet nozzle type-3

    H-DT

    (Female)

    1/8 3/4 1/2 1/2
    1/4 25/32 5/8 3/4
    veejet nozzle type-4

    H-U

    (Male)

    1/8 7/8 1/2 1/2
    1/4 1 9/16 3/4
    3/8 1-1/4 11/16 1-1/2
    1/2 1-1/2 7/8 2-1/4
    3/4 2 1-1/16 5
    veejet nozzle type-5

    U

    (Male)

    1 2-1/2 1-5/15 dia. 9
    1-1/4 3-3/4 1-11/16 dia. 20
    2 5 2-3/8 dia. 68
    veejet nozzle type-6


    Quick jet

    (Female)

    --- 2-1/16 7/8 2-1/2
    --- 2-1/16 7/8 2

    Suitable for a variety of washing and spraying applications

    • Parts Cleaning
    • Foam Control
    • Vehicle Washing
    • Fertilizer Spraying
    • Asphalt Spraying
    • Coal and Gravel Washing
    • Metal Washing (surface treatment)
    • Production line conveyors lubricating

    Sinostar also supply other nozzle types as below

    • Full cone nozzle
    • Hollw cone nozzle
    • Needle jet nozzle
    • Trim nozzle
    • Fog nozzle
    • Low pressure misting nozzle

    Sinostar supply many spare parts for paper,packaging and printing industries,Our product range mainly including as following:

    • Paper machine clothing: forming fabrics, dryer screens, pulp washing fabrics, paper making felts,sludge dewatering belts, stainless steel wire mesh,etc.
    • Pulping equipments: screen baskets, screen plates, refiner plates,etc.
    • Pulp cleaner: high density cleaner, low density cleaner,Medium density cleaner, ceramic cone,etc.
    • Spray nozzle: flat fan nozzles,full cone nozzle, hollow cone nozzles, needle jet nozzles,low pressure misting nozzles, etc.
    • Blades and knives: doctor blades, paper cutting knives, slitter knives,steel rule blades, carton box slotting knife,packaging machine blades,etc.
    • Other paper machine spare parts: pulp rotors,pressure screens,suction cover box,plain bearings,etc.

    If you are interested in any our products, please contact us for more details.
