stainless steel ceramic insert fog spray low pressure misting nozzle

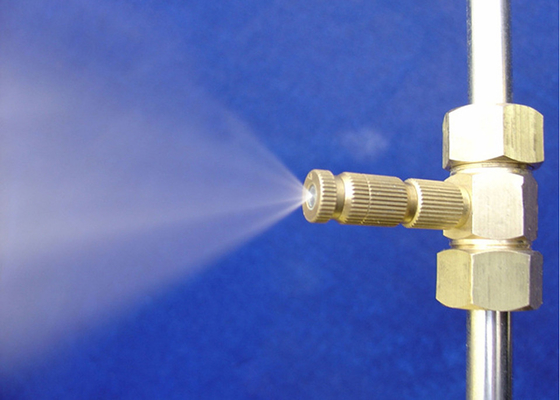

Large Image : stainless steel ceramic insert fog spray low pressure misting nozzle

Product Details:

Place of Origin:	Anhui, China.
Brand Name:	Sinostar
Certification:	ISO9001:2000
Model Number:	low pressure misting nozzle

Payment & Shipping Terms:

Minimum Order Quantity:	30 pcs
Price:	$ 2-5 /piece
Packaging Details:	Export standard packing in plastic or carton box
Delivery Time:	Within a week
Payment Terms:	T/T, L/C , Western Union.
Supply Ability:	20000 pcs per month

Contact Now

Detailed Product Description

Material:	Stainless Steel,brass.	Orifice Insert:	Ceramic,stainless Steel.
Application:	Cooling, Humidifying, Misting.	Orifice Diameter:	0.10mm, 0,15mm, 0.20mm, 0.30mm,etc.
Pressure:	3Mpa ~ 12Mpa	Thread Size:	10/24, 12/24, 3/16, 1/8.
Spray Angle:	60-80 Degree

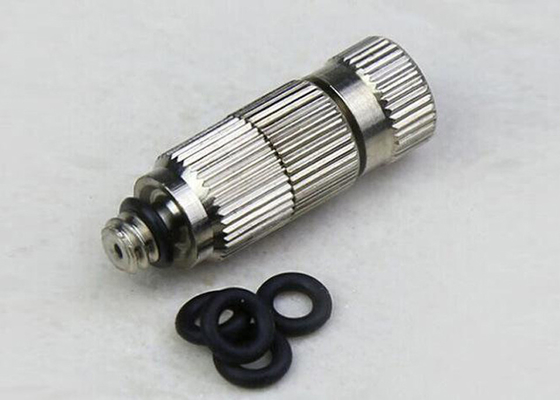

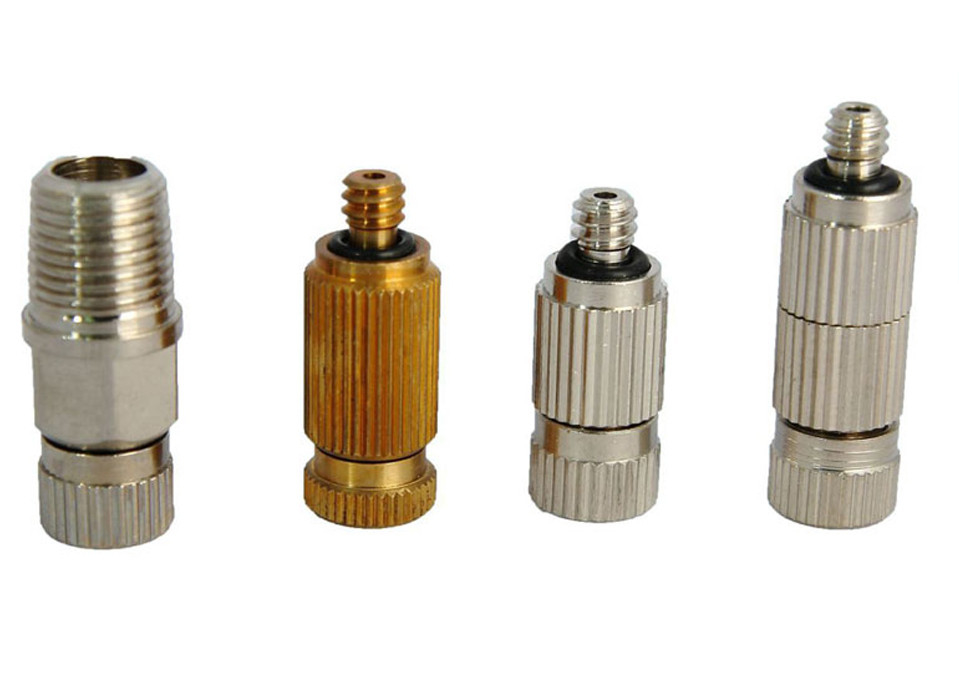

Stainless steel ceramic insert fog spray low pressure misting nozzle

stainless steel ceramic insert fog spray low pressure misting nozzle 0

Specifications

Body Material: brass, 304ss or 316ss

Spray orifice: SS, ceramic, ruby

Thread: 10/24, 12/24

Pressure: 20-70 bar

Orifice: 0.1mm, 0.15mm, 0.2mm, 0.3mm, 0.4mm or 0.5mm

Advantage

Detachable
Cleanable
No drip

Misting Nozzle Technical Data

RELAB Fog Nozzle:
Body Selection		Spray Orifice Selection				Flow rate (LPH/GPH) at different pressure values (bar/metric psi)								Spray angle (°)
Body Conn. thread size	Body Material	Order No.	Orifice Material	Orifice Diameter		10bar/150psi		45bar/650psi		70bar/1000psi		83bar/1200psi
Body Conn. thread size	Body Material	Order No.	Orifice Material	mm	inch	lph	gph	lph	gph	lph	gph	lph	gph
10/24unc-2A 12/24unc-2A 3/16unc-2A	SS304 SS316	10	Ruby	0.1mm	.004"	N/A	N/A	2.73	0.72	3.15	0.83	4.47	1.18	45-55
		15		0.15mm	.006"	N/A	N/A	3.22	0.85	3.45	0.91	4.78	1.26	50-65
		20		0.2mm	.008"	1.9	0.5	3.98	1.05	4.93	1.3	5.61	1.48	55-70
		30		0.3mm	.012"	2.58	0.68	5.34	1.41	6.59	1.74	7.35	1.94	65-75
		40		0.4mm	.016"	3.52	0.93	7.31	1.93	9.06	2.39	10.01	2.64	80-83
		50		0.5mm	.020"	4.78	1.26	9.97	2.63	12.36	3.26	12.89	3.4	80-85

Sinostar supply all kinds of paper and pulp machinery spare parts, our main products as following:

Paper machine clothing: forming fabrics, dryer screens, pulp washing fabrics, paper making felts,sludge dewatering belts, stainless steel wire mesh,etc.
Pulping equipments: screen baskets, screen plates, refiner plates,etc.
Pulp cleaner: high density cleaner, low density cleaner,Medium density cleaner, ceramic cone,etc.
Spray nozzle: flat fan nozzles,full cone nozzle, hollow cone nozzles, needle jet nozzles,low pressure misting nozzles, etc.
Blades and knives: doctor blades, paper cutting knives, slitter knives,steel rule blades, carton box slotting knife,packaging machine blades,etc.
Other paper machine spare parts: pulp rotors,pressure screens,suction cover box,plain bearings,etc.

If you are interested in any our products, please contact us for more details.
