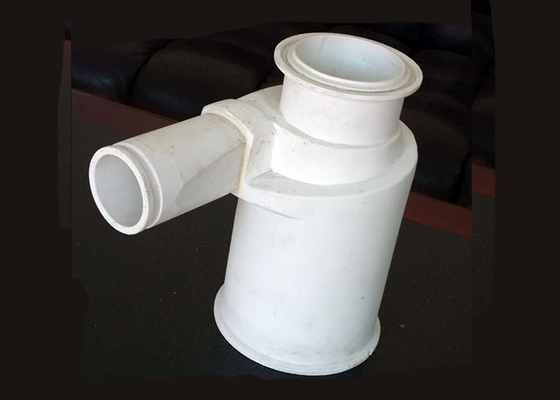

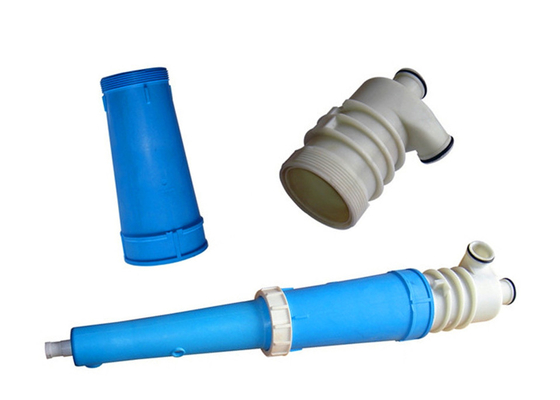

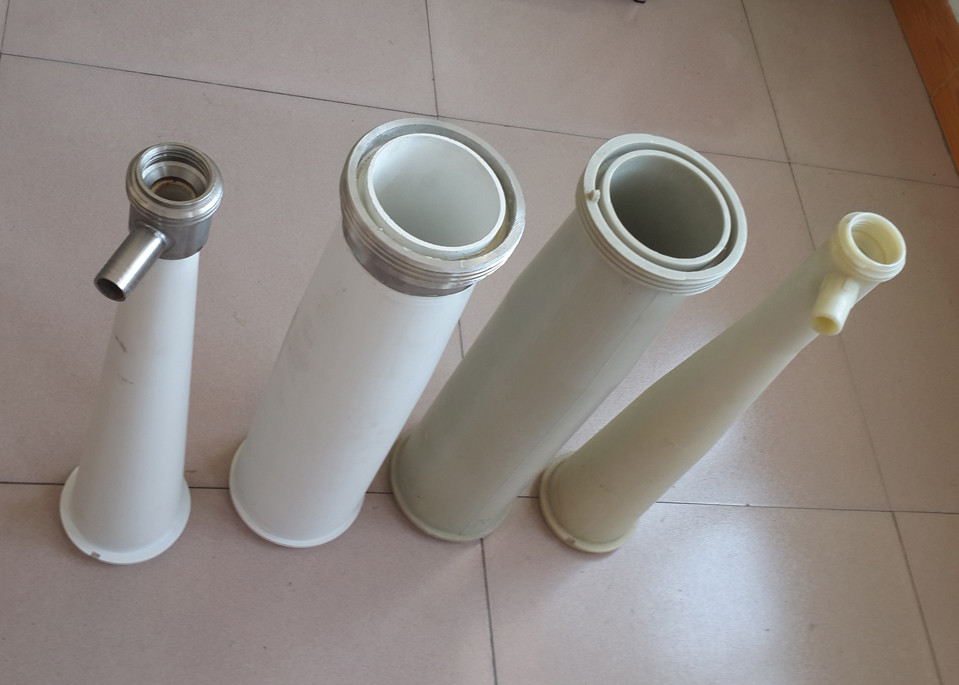

paper mill high efficiency alumina ceramic cone low density pulp cleaner

paper mill high efficiency alumina ceramic cone low density pulp cleaner

    • paper mill high efficiency alumina ceramic cone low density pulp cleaner
    • paper mill high efficiency alumina ceramic cone low density pulp cleaner
    • paper mill high efficiency alumina ceramic cone low density pulp cleaner
  • paper mill high efficiency alumina ceramic cone low density pulp cleaner

    Product Details:

    Place of Origin: Anhui,China.
    Brand Name: Sinostar
    Certification: ISO9001:2000
    Model Number: pulp cleaner

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $ 100-1500 /set
    Packaging Details: Wood case
    Delivery Time: 20-25 days after payment
    Payment Terms: Paypal,TT or LC
    Supply Ability: 10000 sets/month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel,ceramic,plastic. Type: Pulping Equipment Ceramic Parts
    Flexural Strength: 320MPa Volume Concentration: 3.68~3.7g/cm3
    Water Absorption: 0.09% Surface Porosity: 0.04~0.1%
    Modulus Of Elasticity: 3.0*106 Kg/cm2 Alumina Content: 95%~99% Alumina
    Rockwell Hardness: 85HRA

    Paper mill high efficiency alumina ceramic cone low density pulp cleaner

    paper mill high efficiency alumina ceramic cone low density pulp cleanerpaper mill high efficiency alumina ceramic cone low density pulp cleaner

    (Model)

    Output(L/min)

    500L/min

    Inlet consistency(%)

    0.3-1.2%

    Inlet pressure(MPa)

    0.2-0.35MPa
    Exhaust heavy dregs rate of each piece 6-8%
    Exhaust light dregs rate of each piece

    10-12%

    Operating principle

    Low Density Cleaners is based on the principle of the vortex centrifugal separation,a certain pressure slurry along the tangent direction into the inlet, with high-speed vortex running in the cone seperator body.Axial vortex near the separator wall in the directed toward the end of the cone,the heave impuriities in the slurry is thrown to the wall,along the spiral grooves that from the bottom reject the slags.Accepts run to the separator tube center become  the main pulp flow,and come out from the upper accepts outlet,then come into the next process.

    Technical data

    Pulp inlet capacity: 1800L/min

    Pulp inlet pressure: 0.10-0.30 MPa

    Pulp inlet consistency: 0.5-1.2%

    Slurry temperature: <80 degree



    Features

    • Wear resistance 10 times stronger than common pipes on even ground.
    • High temperature resistance.
    • High effective.
    • Long service life.
    • Reduced maintenance Super wear resistance greatly reduce the frequency of maintenance,lower the cost and labour charges.
