Product Details:

Place of Origin: China flat jet nozzle
Brand Name: Sinostar
Certification: ISO9001:2000
Model Number: spray nozzles

Payment & Shipping Terms:

Minimum Order Quantity: 20 pcs
Price: 3-6 usd/piece
Packaging Details: Export standard packing in plastic
Delivery Time: Within a week
Payment Terms: T/T or L/C
Supply Ability: 20000 pcs per month
Contact Now
Detailed Product Description
Material: Stainless Steel Flat Spray Nozzles Condition: New
Application: Paper Machine Apart Cleaning Advantage: Quality First,best Price
Spary Pattern: Flat Fan Spray Angle: 0-120 Degree

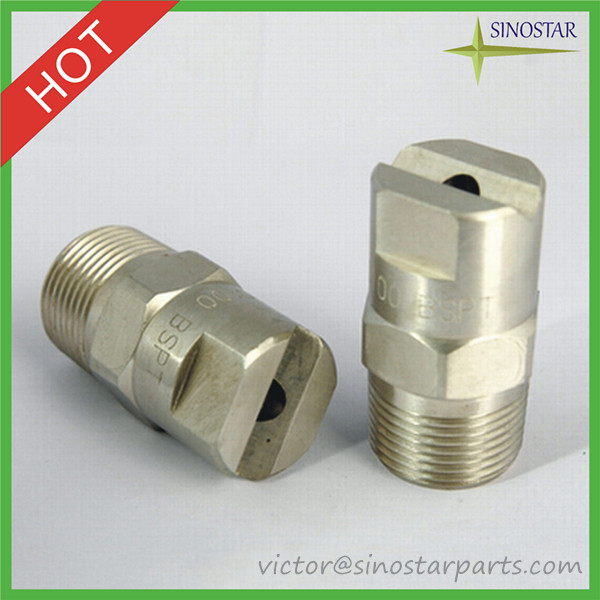

Stainless steel flat spray nozzles

To improve paper machine working speed,It is significant to clean forming fabric and paper making felt.

We can supply different kinds of paper making spray nozzles with proper price and good quality.

1.spray nozzle used in head box.

(1)used for removing foam

(2) for cleaning the head box wall and body---cone-shape

2.nozzle cutter---needle-  shape

3.needle spray nozzle---cleaning the forming wire and felt

4.fan-shape spray nozzle---cleaning the forming wire

5starch atomizing spray nozzle ---coating  starch and talc powder

6.Automatic cleaning spray nozzle---needle shape or fan shape

 For more details,please feel free to contact with me.Thanks for your interests to us.

Best quality Mental Water Spray Nozzle

1.Thread Size:3/8'',3/4'',1/2'',1'',1-1/2'',2'',2-1/2'' etc.

2.Spray Angle: available 0 degree to 180 degree at 3 bar water pressure.

3.Flow Rate:Standard Flow or OEM Flow Available at 0.3-35 bar.

4.Spray Nozzle Pattern: Flat Fan(Standard Spray or Wide Angle and Narrow Angle), Solid Cone/Full Cone, Hollow Cone, Spiral Cone (Full Cone and Hollow Cone), Fog Misting, Plastic Nozzles.

5.Nozzles material: Stainless Steel (303SS,304SS,316SS), Brass, Brass Plated Nickel, Plastics(ABS,PP,PVC,PVDF,Teflon,Pom).

6.Flow Rate:Standard Flow/Capacity or OEM available as per customers' requirements.

7.Application: High Pressure Washing/Cleaning, Humidifying, Air Cooling, Pollution Control, Steel Industry, Mining Industry,Automobile, Food Processing,Paper Making, Pharmaceutical, Dust Remove, Drying, Coating etc.

8.Technical data sheet for spray nozzle:

Type

Spray Patten

Spray Angles

Flow Rates

Flat Fan Nozzle

Flat Fan

0° to 145°

0.161 to 3430 L/min

Full Cone Nozzle

Full Cone

15° to 120°

0.497 to 8180 L/min

Hollow Cone Nozzle

Hollow Cone

40° to 150°

0.125 to 2230 L/min

Spiral Nozzle

Full/ Hollow Cone

50° to 180°

2.26 to 10700 L/min

Misting Nozzle

Cone-shaped Fog

50° to 120°

0.032 to 1.413 L/min





Flat Fan Spray Nozzle impact force generated bconcentrated cleaning amplitude. They are the most common family type spray nozzles. there are a variety ofamily-style nozzle, power, spray angle and spray distribution can achieve the desired results.

eneral  applications include fan nozzle parts cleaning, product cooling, conveying lubricants,

coatings and surface treatment project.



Flat Fan Nozzles, there are twbasic types:



Axial Flow: this means that the fluid enters and exits othe same axis. this nozzle design principle

iaoval hole, tcontrol the disintegration othe turbulent fluid. spray angle from 15 ° To 110 °, the

same inlet pressure. liquid ejected parabolic distribution, when the need for a uniform distribution o

fluid whole, this spray method ithe ideal choice.



Flow Deflector: these designs have a solid, sometimes referred tas "Tongue", this kind opartial

ejection orifice tminimize the potential threat oblocking holes. this spray has two separate compartments,

a style when such fluid injection channel narrow angle formed high impact spray effect, another style produces

a very wide spray angle, the greater the coverage range uto 140 °.

Flat Jet Spray Nozzle feature a high impact stream spray pattern or flat fan spray pattern with spray angles from

0-110 degree. It produce a uniform distribution of small to medium sized drops.

Specially tapered soary pattern edged provide even spray coverage when several nozzles with overlapping pattern are required.

Industrial Spray Nozzles We Make: Flat Fan Spray Nozzle,Hollow Cone Nozzle,Solid Cone Nozzle,Full Cone Nozzle,Spiral Nozzle,Air atomizing Nozzle,Tank Washing Nozzle, High Pressure Nozzle,Plastic Nozzles,Fog Nozzle,Mist Nozzle etc.

High Quality and Low Price.

Please Contact us for details.
