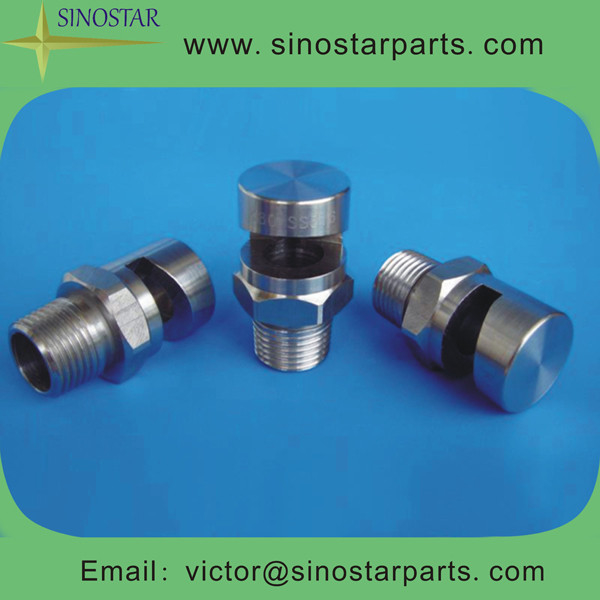

K Series wide deflection flat fan spray nozzles

K Series wide deflection flat fan spray nozzles

K Series wide deflection flat fan spray nozzles

Product Details:

Place of Origin: Anhui nozzle supplier
Brand Name: Sinostar
Certification: ISO9001:2000
Model Number: flat fan spray nozzles

Payment & Shipping Terms:

Minimum Order Quantity: 20 pcs
Price: 3-10 usd/piece
Packaging Details: Export standard packing in plastic
Delivery Time: Within a week
Payment Terms: T/T or L/C
Supply Ability: 20000 pcs per month
Contact Now
Detailed Product Description
Material: SUS 304,303,316L Condition: New
Application: Paper Machine Apart Cleaning Advantage: Quality First,best Price
Spary Pattern: Flat Fan Spray Angle: 30-120 Degree
Thread Size: 1/8'',3/8'',1/4'',3/4'',1/2'',1'',etc.

K Series wide deflection flat fan spray nozzles

Design features
1.Spray particle is fine and evenly.
2.Wide spray angle and create moderate flat fan.
3.It has rounded orifice and the big and smooth passage make the blocking 4.performance to a low point.
5.Inlet direction and outlet direction make a 75degree deflection.
6.This nozzle is suitable to rinse softly and not to wash strongly.Also can be used in spraying liquid ,steam and air.

Application
1.Spray liquid, steam and air
2.Defoame
3.Cleaning and spraying
4.Cooling
5.Water curtain
6.Fire fighting

Performance Parameter

Flow rate code Orifice(mm) Spray air flow rate(L/min) Spray steam flow rate(kg/hr) Width of spray distance 150mm from nozzle's tip(mm)
0.7bar 1.5bar 3bar 3.5bar 0.7bar 7.5bar 3bar 3.5bar 0.7bar 3.5bar
0.50 0.61 4.5 6.4 10.5 11.6 0.16 0.23 0.37 0.41 51 127
0.75 0.71 6.2 9.1 14.7 16.7 0.23 0.33 0.53 0.60 64 140
1 0.84 9.6 13.7 22 25 0.34 0.49 0.80 0.90 76 152
1.5 1.04 15.3 22 36 40 0.54 0.78 1.3 1.5 89 166
2 1.17 19.3 28 45 51 0.68 1.0 1.6 1.8 102 190
2.5 1.32 27 37 60 71 0.95 1.3 2.1 2.5 102 190
3 1.45 31 47 77 85 1.1 1.7 2.7 3.0 127 203
4 1.65 40 57 85 108 1.4 2.0 3.1 3.9 127 228
5 1.85 54 76 124 139 1.9 2.7 4.5 5.0 152 267
7.5 2.31 79 117 189 210 2.9 4.2 6.8 7.6 152 267
10 2.64 110 159 255 290 3.9 5.7 9.2 10.4 178 279
15 3.28 181 260 420 475 6.5 9.3 15.0 17.1 178 306
20 3.76 225 325 520 590 8.0 11.6 18.8 21 216 368
30 4.57 320 465 760 850 11.6 16.8 27 30 216 394
