Place of Origin: | China supplier nozzles |
Brand Name: | Sinostar |
Certification: | ISO9001:2000 |
Model Number: | spray nozzles |
Minimum Order Quantity: | 20 pcs |
---|---|
Price: | 3-6 usd/piece |
Packaging Details: | Export standard packing in plastic |
Delivery Time: | Within a week |
Payment Terms: | T/T or L/C |
Supply Ability: | 20000 pcs per month |
Material: | Stainless Steel Flat Spray Nozzles | Condition: | New |
---|---|---|---|
Application: | Paper Machine Apart Cleaning | Advantage: | Quality First,best Price |
Spary Pattern: | Flat Fan | Spray Angle: | 0-120 Degree |

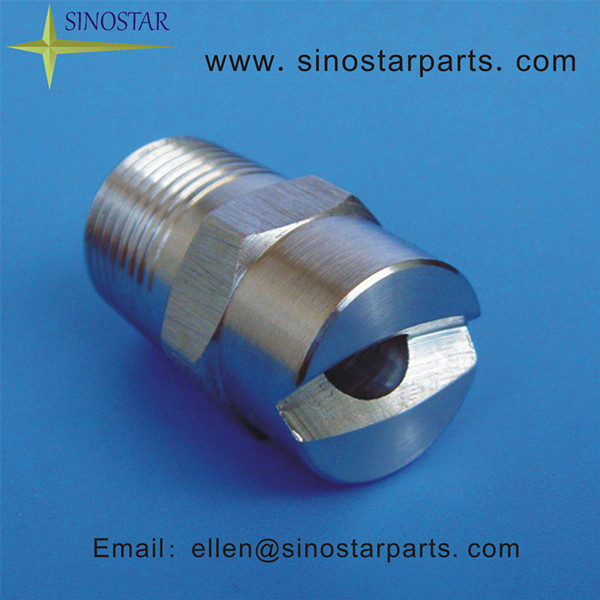

Stainless steel flat spray nozzles
To improve paper machine working speed,It is significant to clean forming fabric and paper making felt.
We can supply different kinds of paper making spray nozzles with proper price and good quality.
1.spray nozzle used in head box.
(1)used for removing foam
(2) for cleaning the head box wall and body---cone-shape
2.nozzle cutter---needle- shape
3.needle spray nozzle---cleaning the forming wire and felt
4.fan-shape spray nozzle---cleaning the forming wire
5starch atomizing spray nozzle ---coating starch and talc powder
6.Automatic cleaning spray nozzle---needle shape or fan shape
For more details,please feel free to contact with me.Thanks for your interests to us.
Best quality Mental Water Spray Nozzle1.Thread Size:3/8'',3/4'',1/2'',1'',1-1/2'',2'',2-1/2'' etc.
2.Spray Angle: available 0 degree to 180 degree at 3 bar water pressure.
3.Flow Rate:Standard Flow or OEM Flow Available at 0.3-35 bar.
4.Spray Nozzle Pattern: Flat Fan(Standard Spray or Wide Angle and Narrow Angle), Solid Cone/Full Cone, Hollow Cone, Spiral Cone (Full Cone and Hollow Cone), Fog Misting, Plastic Nozzles.
5.Nozzles material: Stainless Steel (303SS,304SS,316SS), Brass, Brass Plated Nickel, Plastics(ABS,PP,PVC,PVDF,Teflon,Pom).
6.Flow Rate:Standard Flow/Capacity or OEM available as per customers' requirements.
7.Application: High Pressure Washing/Cleaning, Humidifying, Air Cooling, Pollution Control, Steel Industry, Mining Industry,Automobile, Food Processing,Paper Making, Pharmaceutical, Dust Remove, Drying, Coating etc.
8.Technical data sheet for spray nozzle:
Type |
Spray Patten |
Spray Angles |
Flow Rates |
Flat Fan Nozzle |
Flat Fan |
0° to 145° |
0.161 to 3430 L/min |
Full Cone Nozzle |
Full Cone |
15° to 120° |
0.497 to 8180 L/min |
Hollow Cone Nozzle |
Hollow Cone |
40° to 150° |
0.125 to 2230 L/min |
Spiral Nozzle |
Full/ Hollow Cone |
50° to 180° |
2.26 to 10700 L/min |
Misting Nozzle |
Cone-shaped Fog |
50° to 120° |
0.032 to 1.413 L/min |
Industrial Spray Nozzles We Make: Flat Fan Spray Nozzle,Hollow Cone Nozzle,Solid Cone Nozzle,Full Cone Nozzle,Spiral Nozzle,Air atomizing Nozzle,Tank Washing Nozzle, High Pressure Nozzle,Plastic Nozzles,Fog Nozzle,Mist Nozzle etc.
High Quality and Low Price.
Please Contact us for details.
Flat Fan Spray Nozzle impact force generated by concentrated cleaning amplitude. They are the most common family type spray nozzles. there are a variety of family-style nozzle, power, spray angle and spray distribution can achieve the desired results.
eneral applications include fan nozzle parts cleaning, product cooling, conveying lubricants,
coatings and surface treatment project.
Flat Fan Nozzles, there are two basic types:
Axial Flow: this means that the fluid enters and exits on the same axis. this nozzle design principle
is an oval hole, to control the disintegration of the turbulent fluid. spray angle from 15 ° To 110 °, the
same inlet pressure. liquid ejected parabolic distribution, when the need for a uniform distribution of
fluid whole, this spray method is the ideal choice.
Flow Deflector: these designs have a solid, sometimes referred to as "Tongue", this kind of partial
ejection orifice to minimize the potential threat of blocking holes. this spray has two separate compartments,
a style when such fluid injection channel narrow angle formed high impact spray effect, another style produces
a very wide spray angle, the greater the coverage range up to 140 °.
