paper making screen polyester anti-static with bronze

paper making screen polyester anti-static with bronze

paper making screen polyester anti-static with bronze

Product Details:

Place of Origin: China paper making screen supplier
Brand Name: Sino Star
Certification: ISO9001:2000,SGS.
Model Number: polyester anti-static fabric

Payment & Shipping Terms:

Minimum Order Quantity: 100 square meters
Price: 15-35 usd / square meter
Packaging Details: plastic bag inside and wooden crate outside
Delivery Time: 30 days according to your QTY
Payment Terms: T/T or L/C
Supply Ability: 3000 square meters per month
Contact Now
Detailed Product Description

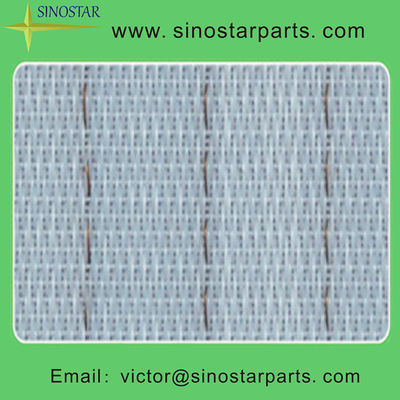

paper making screen polyester anti-static with bronze

Design : 3/2 twilled weave, double seam.

Material: 100% PES, inserted with bronze (yarn: 0.3 mm)

Wire diameter : 0.5 x 0.38/0.57 mm, round.

Wire count : 40 x 40 (MD x CMD)

Elongation at break: 42%

Tensile strength : 120 KN/m.    Air permeability: 5130 m3/m2. Hr

Open area : 36% VV.          Air permeability: 390 CFM

Belt weight : 1500 GSM.       Thickness: 1.83 mm

Treatment : Anti-Static Bronze.

Good ventilation

The ventilation belt with its uniform permeability press the chip mat down onto the in feed section from a max dumping height without leaving craters in the board. Thanks to its permeable but strong fabric structure and sealed edges, the belt masters two tasks at once ventilation and pre-compression.

Safe static discharge

Warpwise woven polyester and bronze threads make the belt hight conductive and prevent electrostatic charging. Safety is ensured since fire hazards can not arise.

paper making screen polyester anti-static with bronze

paper making screen polyester anti-static with bronze
