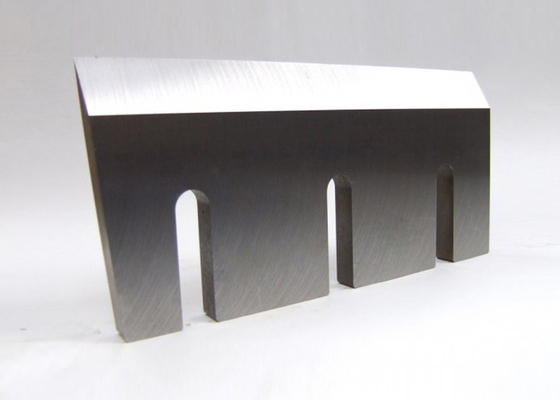

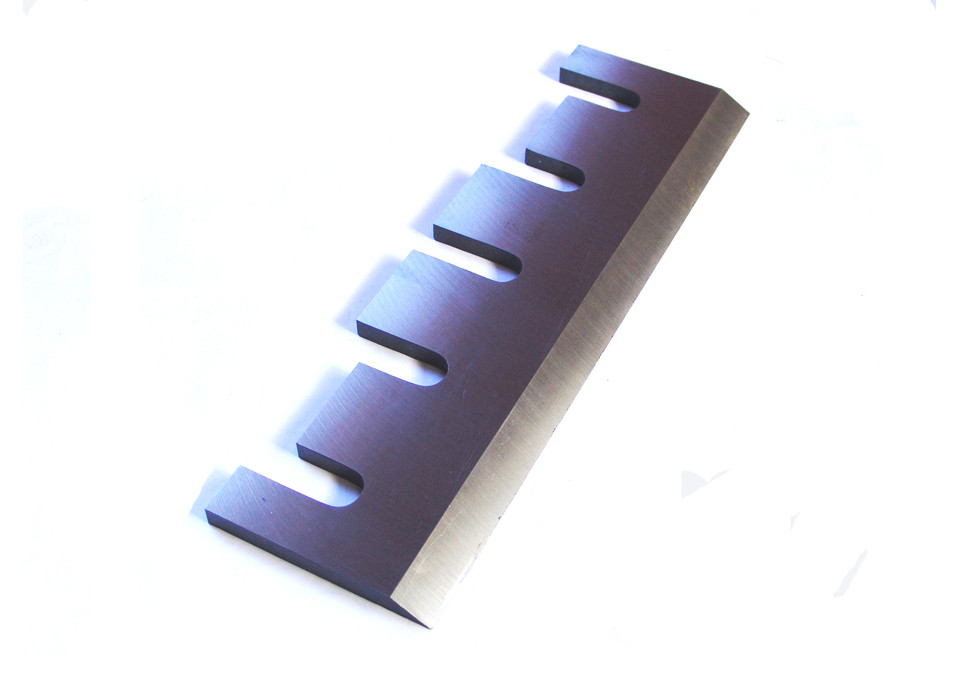

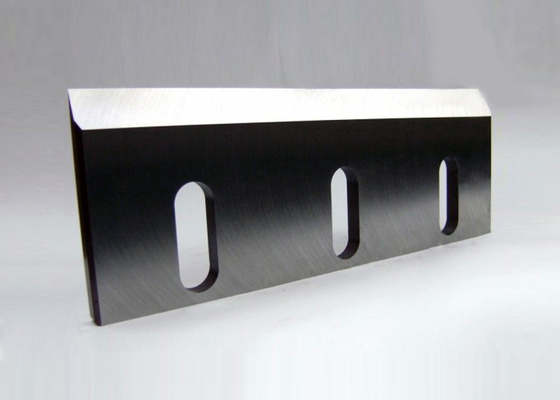

hard wood cutting high precision wear resistance HSS A8 inlaid chipper blade

hard wood cutting high precision wear resistance HSS A8 inlaid chipper blade

    • hard wood cutting high precision wear resistance HSS A8 inlaid chipper blade
    • hard wood cutting high precision wear resistance HSS A8 inlaid chipper blade
    • hard wood cutting high precision wear resistance HSS A8 inlaid chipper blade
  • hard wood cutting high precision wear resistance HSS A8 inlaid chipper blade

    Product Details:

    Place of Origin: Anhui,China.
    Brand Name: Sinostar
    Certification: ISO9001:2000
    Model Number: chipper knife

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: $ 120-235 /piece
    Packaging Details: Export standard packing with wooden case
    Delivery Time: Within 20 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 20000 pcs per month
    Contact Now
    Detailed Product Description
    Material: HSS A8 Inlaid Hardness: HRC 60~68
    Precison: ±0.02mm Dimension: Custom
    Application: Woodworking Chipper Machine

    Hard wood cutting high precision wear resistance HSS A8 inlaid chipper blade

    hard wood cutting high precision wear resistance HSS A8 inlaid chipper blade

    Features

    • Suitable for hard and soft wood.
    • Easures clean equal sized chips and longest possible time.
    • Angle of cutting edge: 26° to 40° as per type of machine and sort and condition of wood.
    • Strong and sharp cutting edge Can be used for varied angle cutting
    • Selection of the highest quality raw material with state-of-the-art heat treatment process.
    • Through hardened and triple tempered steel will maximize knife life while providing consistent,clean cuts.

    Applications

    The Chipper Knives are manufactured from carefully selected materials and quality heat treated to ensure best performance from chipper knives. Precision ground, honed and straight cutting edges. Alloy steel tipped, full alloy steel & HSS inlaid varieties.



    Specification

    (According to customer's samples or sample map made to order .) DRUM  CHIPPER  BLADE

    Model

    Specification(mm)

       Length

    Width

    Thickness

    BX216

    600×180×20

    600

    180

    20

    BX218

    780×220×20

    780

    220

    20

      BX218A

    875×220×20

    875

    220

    20

     BX218D

    850×220×20

    850

    220

    20

      BX2113A

    780×220×20

    780

    220

    20

      BX2113C

    665×220×20

    665

    220

    20

    BX1710

    258×75×6.5

    258

    75

    6.5

    BX1216

    482×110×14

    482

    110

    14

    BX1112

    342×110×14

    342

    110

    14

    BX2110

    540×220×20

    540

    220

    20


    Material Application

    D2 Tool Steel

    (EN/DIN 1.2379)

    Quality tool steel for soft timber
    M2 6.4% SW HSS(EN/DIN 1.3343) A premium grade HSS for general use

    T1 18%W

    HSS(EN/DIN 1.3355)

    Suitable for hardwoods because of its tolerance to high heat
    A8

    A8 steel has a good tenacity ,high abrasive resistance and it can resist to high temperature fatigue





    Packaging

    • PE film or Kraft paper - keep air/water/humid away,thus rust-proofing
    • Bubble Wrap - increases the impact resistance ability
    • Rubber Slip or Corrugated Angle - gives special care to knife edges
    • Wood Screws crates - makes opening easier without damaging the crates
    • Corrugated boxes or Wooden crates - provide superior protection & stackability



    Sinostar supply all kinds of paper and pulp machinery spare parts, our main products as following:

    • Paper machine clothing: forming fabrics, dryer screens, pulp washing fabrics, paper making felts,sludge dewatering belts, stainless steel wire mesh,etc.
    • Pulping equipments: screen baskets, screen plates, refiner plates,etc.
    • Pulp cleaner: high density cleaner, low density cleaner,Medium density cleaner, ceramic cone,etc.
    • Spray nozzle: flat fan nozzles,full cone nozzle, hollow cone nozzles, needle jet nozzles,low pressure misting nozzles, etc.
    • Blades and knives: doctor blades, paper cutting knives, slitter knives,steel rule blades, carton box slotting knife,packaging machine blades,etc.
    • Other paper machine spare parts: pulp rotors,pressure screens,suction cover box,plain bearings,etc.

    If you are interested in any our products, please contact us for more details.
