Place of Origin: | Anhui, China. |
Brand Name: | Sinostar |
Certification: | ISO, CE |
Model Number: | Dr blade-016 |
Minimum Order Quantity: | 1 box |
---|---|
Price: | $75 |
Packaging Details: | plastic box, wooden case. |
Delivery Time: | 15 days after payment. |
Payment Terms: | 100% T/T, Paypal or West Union. |
Supply Ability: | 500 boxes per month. |
Type: | Doctor Blade | Use: | For Man Roland Printer |
---|---|---|---|
Printing Type: | Inkjet Printer | Doctor Blade Material: | Carbon Steel |
Doctor Blade Width: | 50mm | Doctor Blade Lamella Edge Width: | 1.3mm |
Doctor Blade Thickness: | 0.15mm | Doctor Blade Lamella Thickness: | 0.07mm |
Doctor Blade Length: | 100m Per Box | Edge Type: | Single Side Edge |
Application: | Flexo And Gravure Printing Machine | Machine Speed: | <200m/m |
Shape Of Blade Edge: | Lamella Edge |
Flexo and gravure printing machine doctor blade (Dr blade) with carbon steel
Material | Carbon steel,stainless steel |
Printing machine type | Flexo and Gravure printing machine |
Machine speed | High speed / Medium speed / Low speed |
Doctor blade width | 10 / 22 / 30 / 35 / 40 / 50 / 60mm |
Doctor blade width tolerance | ± 0.100mm |
Doctor blade lamella edge width | 1.3 / 1.4mm |
Doctor blade lamella edge width tolerance | ±0.025mm |
Doctor blade thickness | 0.15 / 0.20mm |
Doctor blade thickness tolerance | ±0.005mm |
Doctor blade lamella edge thickness | 0.065 / 0.07 / 0.075 / 0.10mm |
Shape of doctor blade edge | Lamella edge, Bevel edge, Round edge. |
Doctor blade lamella edge thickness tolerance | ±0.003mm |
Doctor blade hardness | HV580-620 |
Doctor blade tensile strength | 1950-2150Pa(1860N/mm2) |
Doctor blade surface | Bright polished |
Straightness maximum deviation | 0.5mm/3.0m |
Contact edge roughness | Rao.10 ±0.05um |
Packaging | 100m/box |
Features and Benefits
Applications
Doctor blade is widely used in gravure, flexography, coating and printing areas. It’s suitable for the speed more than 130m middle high-speed machine.
Doctor blades production process

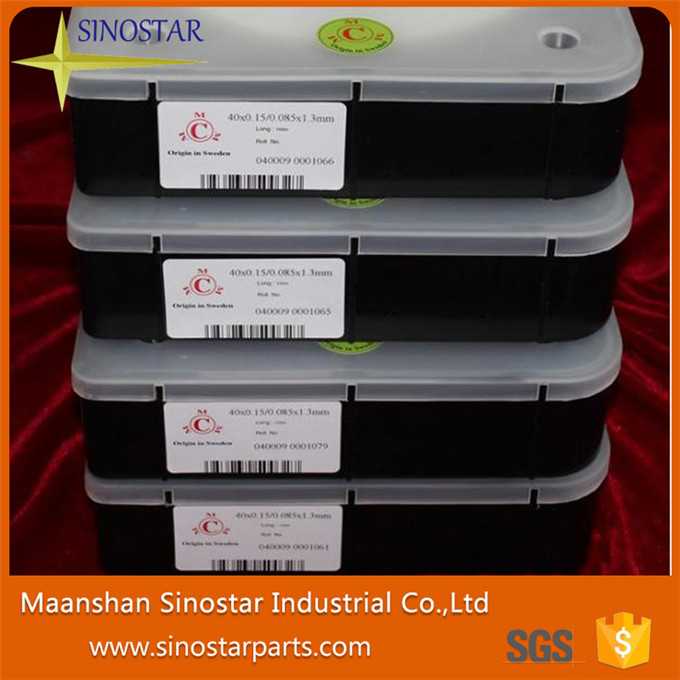

Packaging of doctor blades
Blades are available in pre-cut sizes of any length or in coils of 50m,100m and 200m.
Plastic box inside,and wooden case outside.
