paper cutting high speed steel circular dished top slitter knife

    • paper cutting high speed steel circular dished top slitter knife
    • paper cutting high speed steel circular dished top slitter knife
    • paper cutting high speed steel circular dished top slitter knife
  • paper cutting high speed steel circular dished top slitter knife

    Product Details:

    Place of Origin: Maanshan,China
    Brand Name: Sinostar
    Certification: ISO9001:2000
    Model Number: paper slitter knife

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: 5-25 usd / piece
    Packaging Details: Export standard packing with wooden case.
    Delivery Time: 7 days after order confirmed.
    Payment Terms: T/T or L/C
    Supply Ability: 20000 pcs per month
    Contact Now
    Detailed Product Description
    Material: HSS, Tungsten Carbide, SKD-11,etc. Size: As Per Drawing.
    Application: Paper Slitting Machine.

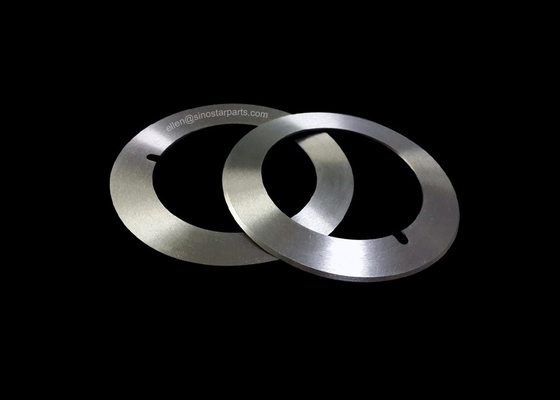

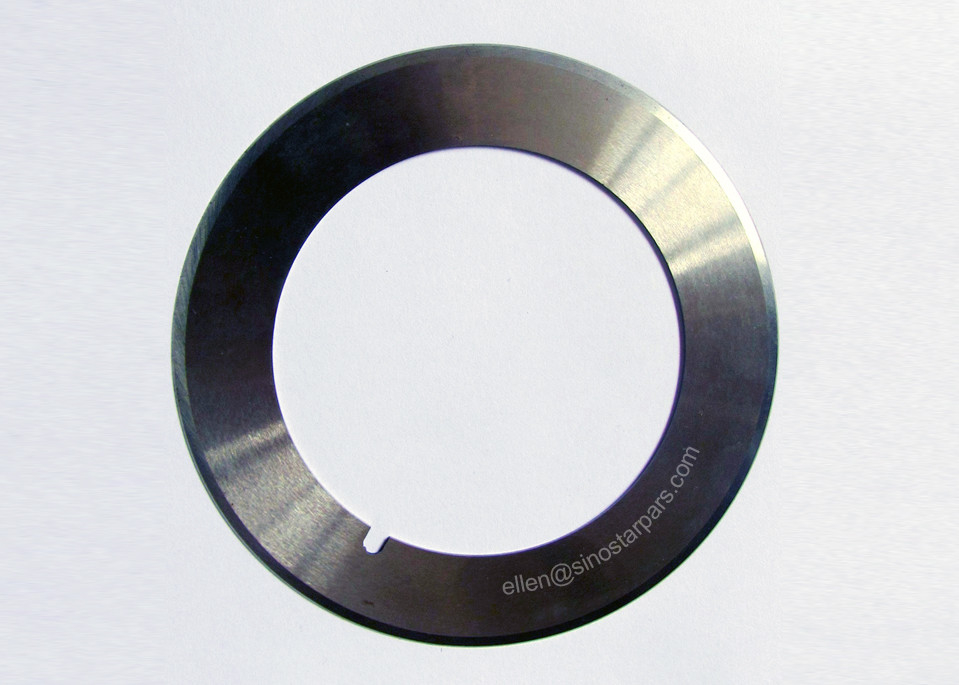

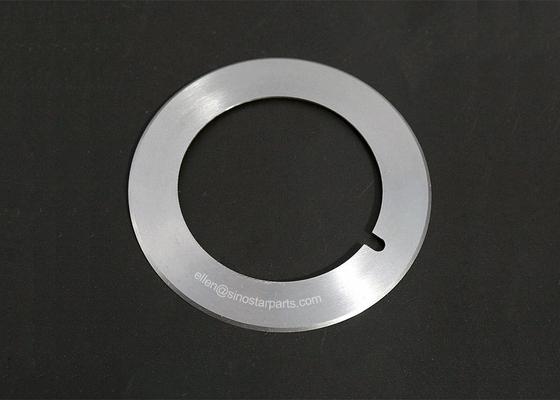

    Paper cutting high speed steel circular dished top slitter knife

    paper cutting high speed steel circular dished top slitter knife

    paper cutting high speed steel circular dished top slitter knife

    paper cutting high speed steel circular dished top slitter knife



    Slitter knives consists top slitter blade and bottom slitter blade using for machinery cutting processing.

    The top slitter blade can be dish shaped or flat shaped with single, double beve(edge)or square edged.

    For the score cutting, there are only one blade works as the roll or sleeve stand as the bottom blade.

    Besides some of our customers also called top slitter blade as male or front blades.

    The bottom slitter blade may also have many types including multigroove bottom slitters, single and double edge bottom sitters, square edge cutters, solid or tipped carbide bottom knives and cutters etc.



    Specifications & Characteristics

    Material : Tungsten carbide steel, HSS, SKD-11, etc.

    Condition: New                                                Type: Machining parts

    Plating: Hard coating (TiN CrN TiAIN)             Usage: Slotting,cut-off

    Hardness: HRC 40-68                                      Shape: Round

    Thickness range: 0.10 - 6.0 mm                   Precision: more or less 0.02 mm

    Sharpness: 18-30 N                               Edge trimming: NC grinding



     High intensity, high hardness, high wear resistance,high toughness,

     Professional Grinding & Heat Treating Processing.

    Features & Benifits

    • Availability
    • Durability
    • Rust resistance
    • Cutting process
    • Costs
    • Edge geometry
    • Wear resistance
    • Excellent cutting quality
    • stable and reliable cutting performance
    • Long length blade provided

    Applications of our blades and knives

    Paper Cutting

    Extrusion/Cut-off

    Slicing

    Pipe Cutting

    Plastic

    Printing

    Rubber

    Sign Making



    Top Slitter knife

    Specification

    O.D.

    I.D.

    Width

    Thickness

    Cutting angle

    ø105×ø70×1

    105

    70

    2

    1

    45°

    ø105×ø70×1.5

    105

    70

    2.5

    1.5

    45°



    Bottom Slitter knife

    Specification

    O.D.

    I.D.

    Width

    width of cutting edge

    Major pitch diameter

    Minor pitch diameter

    Key width

    Key depth

    ø70×ø45×10×8

    70

    45

    10

    8

    67

    59

    10

    49

    ø70×ø45×4×2.5

    70

    45

    4

    2.5

    67

    59

    10

    49

    ø80×ø50×5×3.5

    80

    50

    5

    3.5

    77

    65

    10

    53.8

    ø80×ø50×10×8

    80

    50

    10

    8

    77

    65

    10

    53.8

    ø80×ø60×10×8

    80

    60

    10

    8

    77

    69

    ø70×ø45×6×4

    70

    45

    6

    4

    67

    59

    ø108×ø80×10×8

    108

    80

    10

    8

    105

    90

    ø108×ø80×20×18

    108

    80

    20

    18

    104

    90
