carbon steel lamella edge MDC doctor blade for flexo printing machine

carbon steel lamella edge MDC doctor blade for flexo printing machine

    • carbon steel lamella edge MDC doctor blade for  flexo printing machine
    • carbon steel lamella edge MDC doctor blade for  flexo printing machine
    • carbon steel lamella edge MDC doctor blade for  flexo printing machine
  • carbon steel lamella edge MDC doctor blade for  flexo printing machine

    Product Details:

    Place of Origin: Anhui, China.
    Brand Name: Sinostar
    Certification: ISO, CE
    Model Number: doctor blade

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 box
    Price: $ 65-210 /box
    Packaging Details: Plastic box and wooden case
    Delivery Time: 10-15 word days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 1000 boxes per month
    Contact Now
    Detailed Product Description
    Material: Carbon Steel, Stainless Steel. Blade Thickness: 0.15mm,0.20mm.
    Blade Width: 30mm,40mm,50mm. Edge Thickness: 0.07mm
    Edge Width: 1.3mm Application: High Speed Flexo Printing Machine

    Carbon steel lamella edge MDC doctor blade for flexo printing machine

    carbon steel lamella edge MDC doctor blade for  flexo printing machine

    Material Carbon steel,stainless steel
    Printing machine type Flexo and Gravure printing machine
    Machine speed High speed / Medium speed / Low speed
    Doctor blade width 10 / 22 / 30 / 35 / 40 / 50 / 60mm
    Doctor blade width tolerance ± 0.100mm
    Doctor blade lamella edge width 1.3 / 1.4mm
    Doctor blade lamella edge width tolerance ±0.025mm
    Doctor blade thickness 0.15 / 0.20mm
    Doctor blade thickness tolerance ±0.005mm
    Doctor blade lamella edge thickness 0.065 / 0.07 / 0.075 / 0.10mm
    Shape of doctor blade edge Lamella edge, Bevel edge, Round edge.
    Doctor blade lamella edge thickness tolerance ±0.003mm
    Doctor blade hardness HV580-620
    Doctor blade tensile strength 1950-2150Pa(1860N/mm2)
    Doctor blade surface Bright polished
    Straightness maximum deviation 0.5mm/3.0m
    Contact edge roughness Rao.10 ±0.05um
    Packaging 100m/box

    Features and Benefits

    • Even scraping effect, high printing quality.
    • Doctor blade with small pressure.
    • High precision processing.
    • Doctor blade surface bright polished.
    • Elasticity is moderate, administrative levels feeling.
    • Docor blades are durable, long life ink scraper.

    Applications

    • Gravure industry
    • Flexography industry
    • Printing industry
    • Paper making industry

    Doctor blade is widely used in gravure, flexography, coating and printing areas. It’s suitable for the speed more than 130m middle high-speed machine.

    Doctor blades show

    carbon steel lamella edge MDC doctor blade for  flexo printing machine

    carbon steel lamella edge MDC doctor blade for  flexo printing machine

    Doctor blades production process

    carbon steel lamella edge MDC doctor blade for  flexo printing machine

    carbon steel lamella edge MDC doctor blade for  flexo printing machine

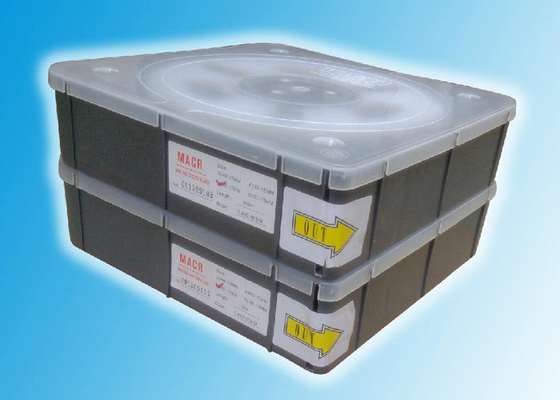

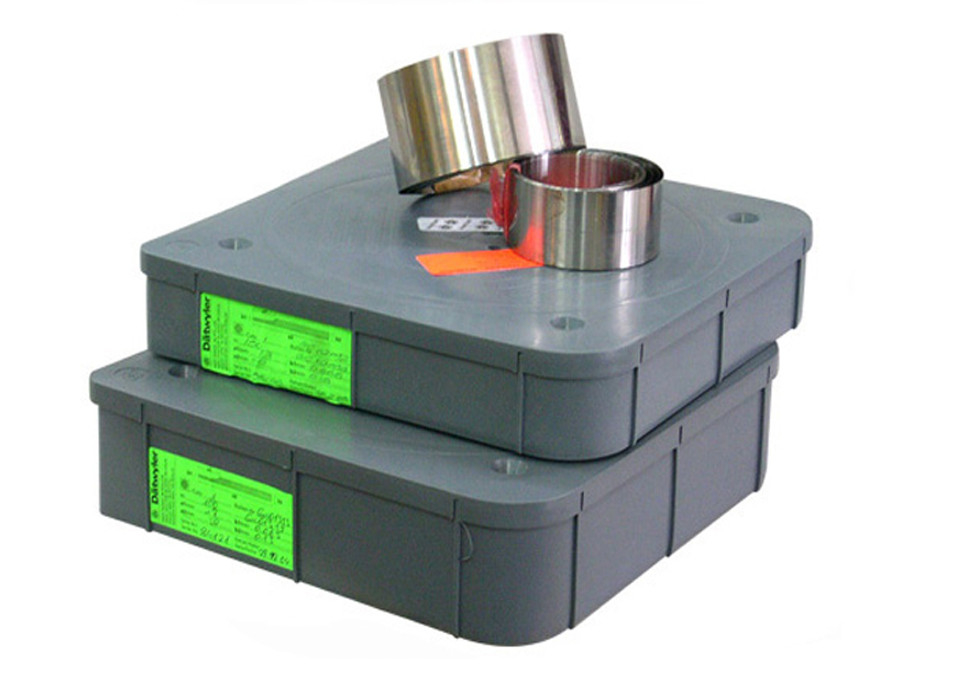

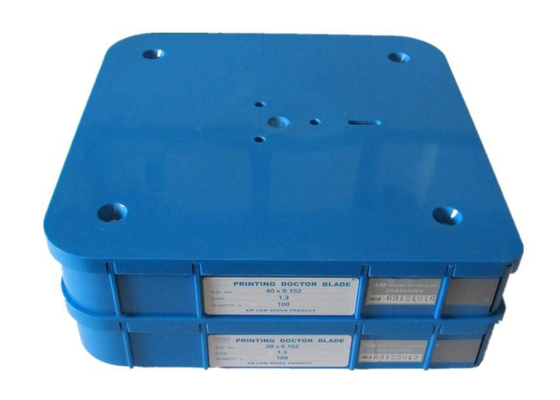

    Packaging of doctor blades

    Blades are available in pre-cut sizes of any length or in coils of 50m,100m and 200m.

    Plastic box inside,and wooden case outside.

    carbon steel lamella edge MDC doctor blade for  flexo printing machine

    carbon steel lamella edge MDC doctor blade for  flexo printing machine

    carbon steel lamella edge MDC doctor blade for  flexo printing machine

    Why choose us?

    A).Experienced doctor blade product supplier.

    B).Professional design team and sales department for your services.

    C).Stable quality:come from good materials and technics.

    D).Low price: not cheapest but the lowest at the same quality.

    E).Good service: satisfactory service before and after sale.



    Sinostar supply many spare parts for paper,packaging and printing industries,Our product range mainly including as following:

    • Paper machine clothing: forming fabrics, dryer screens, pulp washing fabrics, paper making felts,sludge dewatering belts, stainless steel wire mesh,etc.
    • Pulping equipments: screen baskets, screen plates, refiner plates,etc.
    • Pulp cleaner: high density cleaner, low density cleaner,Medium density cleaner, ceramic cone,etc.
    • Spray nozzle: flat fan nozzles,full cone nozzle, hollow cone nozzles, needle jet nozzles,low pressure misting nozzles, etc.
    • Blades and knives: doctor blades, paper cutting knives, slitter knives,steel rule blades, carton box slotting knife,packaging machine blades,etc.
    • Other paper machine spare parts: pulp rotors,pressure screens,suction cover box,plain bearings,etc.
