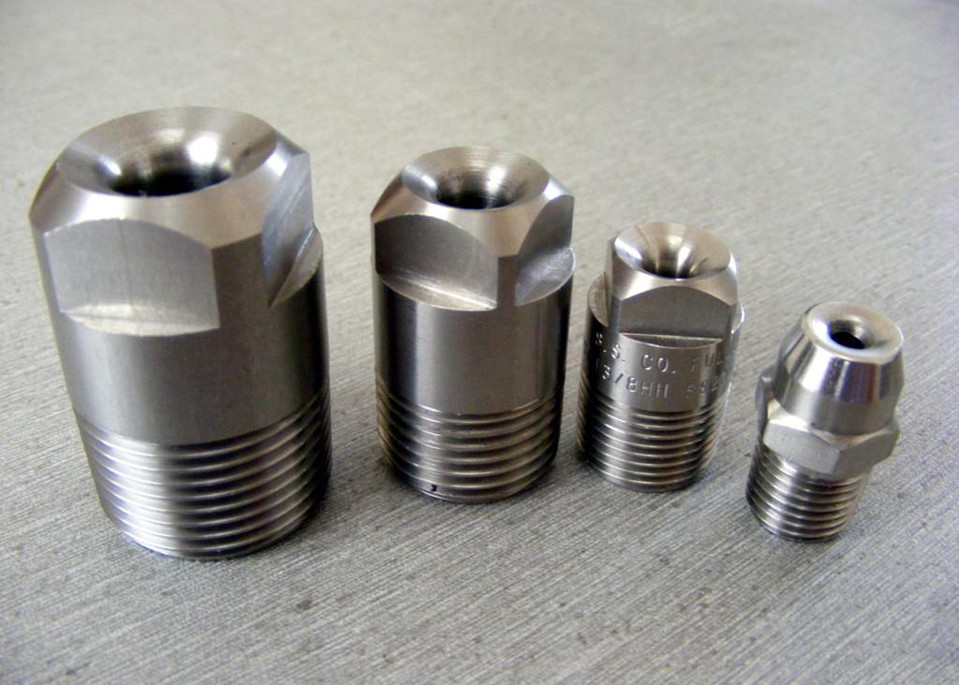

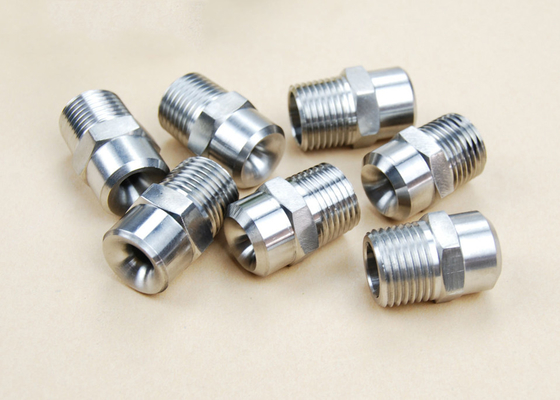

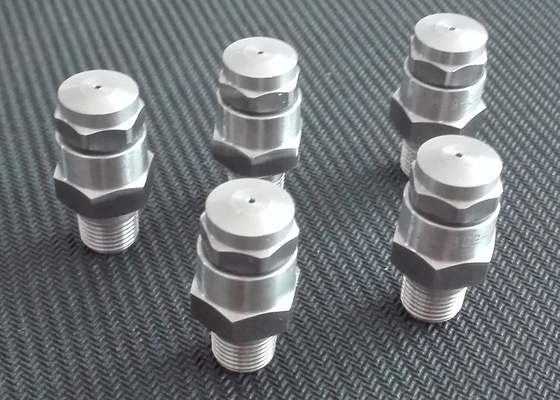

water spraying stainless steel wide angle industrial full cone nozzles

water spraying stainless steel wide angle industrial full cone nozzles

    • water spraying stainless steel wide angle industrial full cone nozzles
    • water spraying stainless steel wide angle industrial full cone nozzles
    • water spraying stainless steel wide angle industrial full cone nozzles
  • water spraying stainless steel wide angle industrial full cone nozzles

    Product Details:

    Place of Origin: Anhui, China.
    Brand Name: Sinostar
    Certification: ISO9001:2000
    Model Number: industrial full cone nozzles

    Payment & Shipping Terms:

    Minimum Order Quantity: 30pcs
    Price: $8-15 per piece
    Packaging Details: Export standard packing in plastic or carton box
    Delivery Time: 15-25 days after payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 10000pcs per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Spray Pattern: Full Cone Spray
    Spray Angle: Wide Angle Thread Type: BSPT Or NPT
    Application: Water Spraying, Cooling,etc.

    Water spraying stainless steel wide angle industrial full cone nozzles

    water spraying stainless steel wide angle industrial full cone nozzles

    water spraying stainless steel wide angle industrial full cone nozzles

    Features and Benefits for full cone spray nozzle

    • Solid wide angle cone-shaped spray pattern with round impact area.
    • Uniform distribution over a wide range of flow rates and pressures.
    • Medium to large sized drops.
    • Unique vane design with large flow passages provides supperior control and uniform distribution.
    • Removable caps and vanes for easy inspection and cleaning on most models.
    • Removable vanes has location marks for proper positioning after cleaning.
    • Set screw secures vane in the nozzle to ensure it is not dislodged by vibration.
    • Wall-mounted options for installation on room exterior,vessel or pipeline.
    • For installations with space limitations,right-angle mounting options allow for mounting at a 90degree angle.

    Common Applications

    • Washing and Rinsing any conveyorised belts and fabrics.
    • Quenching during heat treat process.
    • Gas scrubbing,washing and cooling.
    • Coating with chemicals.
    • Fire prevention.
    • Cooling canned foods.
    • Humidification

    Diamensions and Weights for Full cone spray nozzles

    Standard Spray Angle

    Inlet Conn.

    (in)

    Length

    (mm)

    Dia

    (mm)

    N.W.

    (kg)

    Hex

    (mm)

    stainless steel water jet round spray full cone nozzle

    Cast type

    (Female)

    1-1/4 87.5 53 0.57
    1-1/2 103 59 0.80
    2 138 76 1.7
    2-1/2 175 87 2.2
    3 196 105 2.7
    4 243 138 8.2
    5 311 172 17.3
    6 365 203 24.1
    8 470 241 41.8
    stainless steel water jet round spray full cone nozzle

    30 degree

    (Male)

    1/8 22.2 12.7 0.01
    1/4 23 14 0.01
    3/8 30 17 0.03
    1/2 35 21 0.04
    3/4 40.5 27 0.10
    1 53 33 0.20
    stainless steel water jet round spray full cone nozzle

    Bar Stock

    (Female)

    3/4 55.5 32 0.21
    1 70 38 0.37
    stainless steel water jet round spray full cone nozzle Female 1/8 31   0.03 14.3
    1/4 37.5   0.04 17.5
    3/8 46   0.07 20.6
    1/2 57   0.17 25.4
    stainless steel water jet round spray full cone nozzle Male 1/8 32.5   0.03 14.3
    1/4 39.5   0.04 17.5
    3/8 47   0.07 20.6
    1/2 56.5   0.17 25.4
    stainless steel water jet round spray full cone nozzle Male 1/8 37   0.03 14.3
    1/4 43.5   0.04 17.5
    3/8 47   0.07 20.6
    1/2 55   0.13 25.4
    stainless steel water jet round spray full cone nozzle Female 1/8 35.5   0.03 14.3
    1/4 41   0.04 17.5
    3/8 56   0.07 20.6
    1/2 37   0.13 25.4
    stainless steel water jet round spray full cone nozzle Female 3/4 54 32 0.17
    1 68.5 38 0.40
    1-1/4 86 48 0.68
    1-1/2 103 57 1.1
    2 129 70 2.0
    2-1/2 159 83 3.2
    3 186 102 5.8
    stainless steel water jet round spray full cone nozzle Flange 4 207 229 12.3
    5 269 254 16.4
    6 321 279 22.3
    8 423 343 48.2
    10 527 406 78.6
    stainless steel water jet round spray full cone nozzle

    Polypropylene

    (Female)

    1-1/2 103 59.5 0.06
    2 134 71.4 0.10

    (Based on largest and heaviest version of each type.)

    Full cone nozzle packing

    stainless steel water jet round spray full cone nozzle

    Our services

    • Reply your inquiry within 8 hours.
    • Commonly used samples can be free.
    • Delivery time within 7 days.
    • Best after-sale service.
    • Payment Term:T/T , Western Union,Paypal.
    • Delivery Term: DHL/ UPS/FEDEX Express; Air/ Sea Transportation.
    • All products can be customised.

    Why choose us?

    • Sufficient support for our representatives.
    • OEM service available based on official & legal authorization.
    • Strict quality control system.
    • Faster lead time than our competitors.
    • Excellent quality with reasonable price.
    • Strong technical support.
    • Nozzle solutions to your particular requirements.
    • Sample is available with economic express fee.
    • 12 months quality guarantee after delivery.
