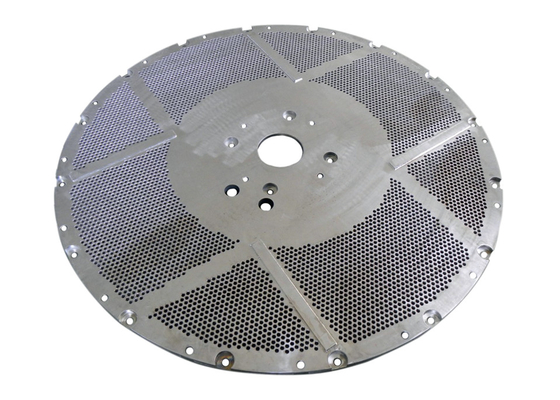

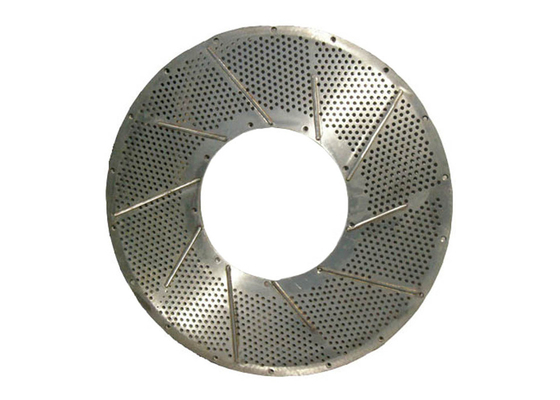

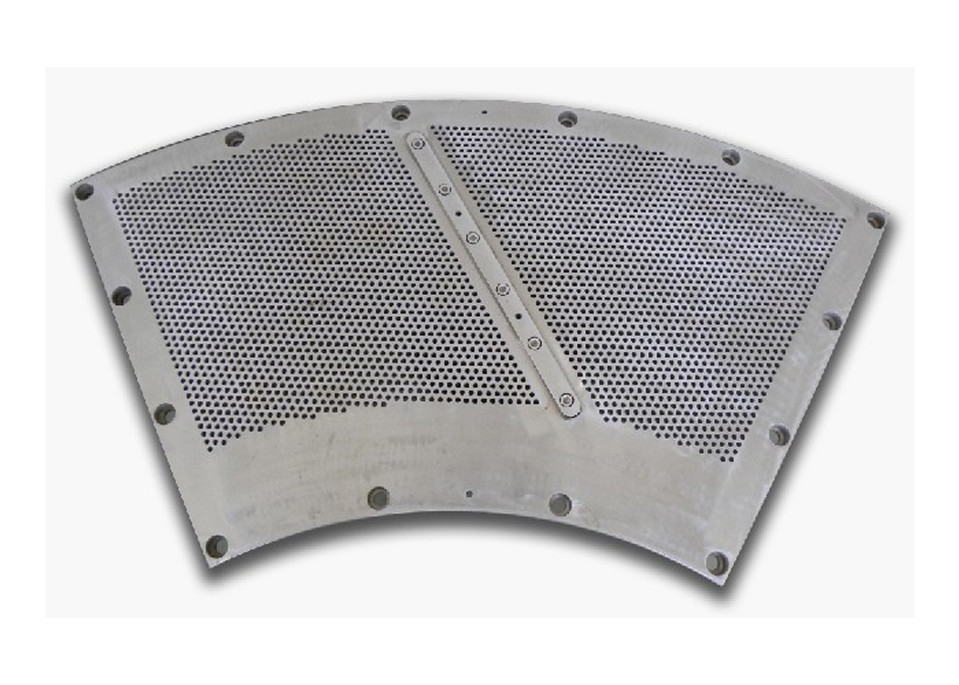

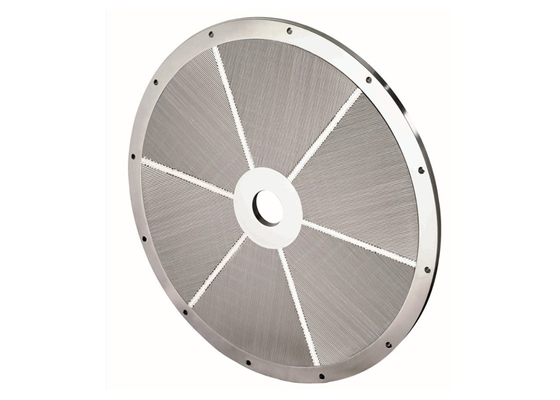

Cardboard paper making waste paper pulping Screen Plate for fiber separator

Cardboard paper making waste paper pulping Screen Plate for fiber separator

    • Cardboard paper making waste paper pulping Screen Plate for fiber separator
    • Cardboard paper making waste paper pulping Screen Plate for fiber separator
    • Cardboard paper making waste paper pulping Screen Plate for fiber separator
    • Cardboard paper making waste paper pulping Screen Plate for fiber separator
  • Cardboard paper making waste paper pulping Screen Plate for fiber separator

    Product Details:

    Place of Origin: Anhui, China.
    Brand Name: Sinostar
    Certification: ISO9001:2000,SGS.
    Model Number: screen plate

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: $ 1000-3000 / piece
    Packaging Details: wooden case
    Delivery Time: 15 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 300 pcs per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Diameter: Custom
    Thickness: 10mm Technic: Electro-polishing
    Usage: Pulp Making System

    Cardboard paper making waste paper pulping Screen Plate for fiber separator

    Cardboard paper making waste paper pulping Screen Plate for fiber separator

    Cardboard paper making waste paper pulping Screen Plate for fiber separator



    Material stainless steel 304ss/316L
    Process Pulping machine
    Hold diameter 0.3mm-100mm
    Usage Household paper machine
    Type Pulping equipment
    Automatic grade Semiautomatic
    Various specification 600-2135mm
    Thickness 6-25mm


    Main technical data

    • Min. Slit width: 0.10mm.
    • Slit width error limit: ≤ 0.01mm.
    • Wear layer thickness: 0.2mm.
    • Surface hardness can reach: Hv900-1100, increased longevity.
    • Electrochemical polishing, no fiber stringing.

    Features and Benefits

    • High quality material.
    • Good dimensional stability.
    • Smooth surface treatment by EP.
    • Long span life for good anti-wear.
    • No breakage by special welding.
    • Easily to clean with low pressuring.

    Application

    • MDF,HDF Fiber Board / Food field.
    • Stock Preparation Plant.

    Production process

    Cardboard paper making waste paper pulping Screen Plate for fiber separator

    Cardboard paper making waste paper pulping Screen Plate for fiber separator

    Cardboard paper making waste paper pulping Screen Plate for fiber separator



    Sinostar supply all kinds of paper and pulp machinery spare parts, our main products as following:



    • Paper machine clothing: forming fabrics, dryer screens, pulp washing fabrics, paper making felts,sludge dewatering belts, stainless steel wire mesh,etc.
    • Pulping equipments: screen baskets, screen plates, refiner plates,etc.
    • Pulp cleaner: high density cleaner, low density cleaner,Medium density cleaner, ceramic cone,etc.
    • Spray nozzle: flat fan nozzles,full cone nozzle, hollow cone nozzles, needle jet nozzles,low pressure misting nozzles, etc.
    • Blades and knives: doctor blades, paper cutting knives, slitter knives,steel rule blades, carton box slotting knife,packaging machine blades,etc.
    • Other paper machine spare parts: pulp rotors,pressure screens,suction cover box,plain bearings,etc.

    If you are interested in any our products, please contact us for more details.
