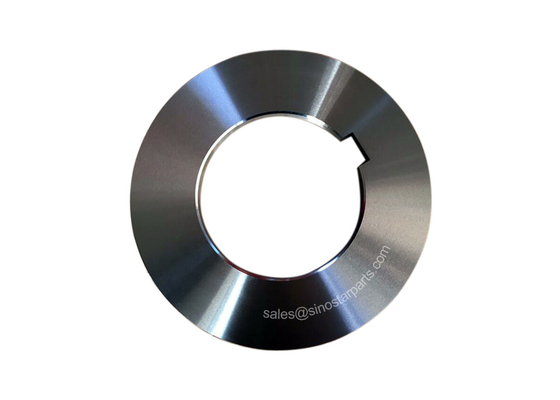

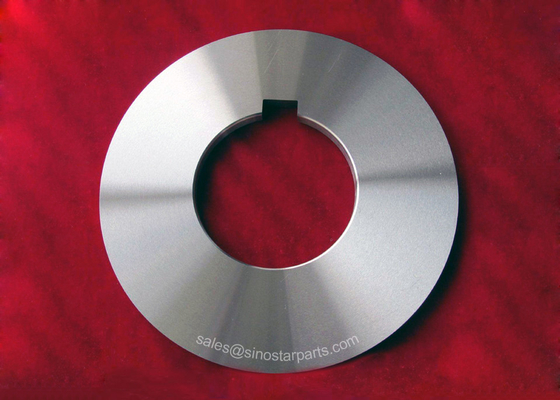

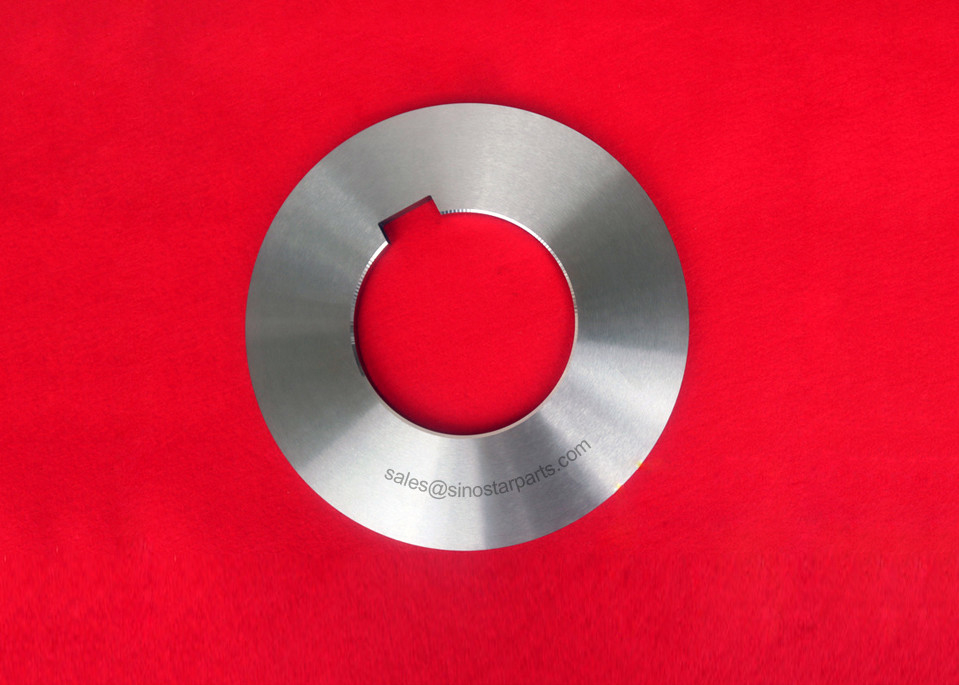

high rigidity rotary coil slitter knife for sheet metal slitting line

high rigidity rotary coil slitter knife for sheet metal slitting line

    • high rigidity rotary coil slitter knife for sheet metal slitting line
    • high rigidity rotary coil slitter knife for sheet metal slitting line
    • high rigidity rotary coil slitter knife for sheet metal slitting line
  • high rigidity rotary coil slitter knife for sheet metal slitting line

    Product Details:

    Place of Origin: Maanshan,China
    Brand Name: Sinostar
    Certification: ISO9001:2000
    Model Number: steel coil slitter knife

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: 10-35 usd / piece
    Packaging Details: Export standard packing with wooden case.
    Delivery Time: 15 days after order confirmed.
    Payment Terms: T/T or L/C
    Supply Ability: 20000 sets per month
    Contact Now
    Detailed Product Description
    Material: HSS, Tungsten Carbide, SKD-11,etc. Size: As Per Drawing.
    Application: Steel Coil Slitting Machine.

    High rigidity rotary coil slitter knife for sheet metal slitting line

    high rigidity rotary coil slitter knife for sheet metal slitting line

    high rigidity rotary coil slitter knife for sheet metal slitting line

    Material Optional

    9CrSi , 6CrW2Si , LD , D2 , Cr12MoV , H13 , G1, G2 ,G3.

    Material Composition Sheet
    Material       C     Si       Mn       Cr        W      P      S       V       Mo   NB
    6CrW2Si 0.55-0.65 0.50-0.80 ≤0.40 1.00-1.30 2.00-2.70 ≤0.030 ≤0.030
    9SiCr 0.85-0.95 1.20-1.60 0.30-0.60 0.95-1.25   ≤0.030 ≤0.030
    Cr12MoV 1.45-1.70 ≤0.40 ≤0.40 11.0-12.5   ≤0.030 ≤0.030 0.15-0.30 0.40-0.60

    4Cr5Mo

    SiV1

    0.32-0.45 0.80-1.20 0.20-0.50 4.75-5.50 1.10-1.75 ≤0.030 ≤0.030 0.80-1.20
    42CrMo 0.38-0.45 0.17-0.37 0.50-0.80 0.90-1.20   ≤0.035 ≤0.035   0.15-0.25
    5CrW2Si 0.45-0.55 0.50-0.80 ≤0.40 1.00-1.30 2.00-2.50 ≤0.030 ≤0.030
    The World Grade of Steel Contrast
    China USA               Japan       Germany           Uk           France          ISO
    GB    ASTM      AISI            JIS        DIN           BS              NF ISO
    6CrW2Si     A681           G4404       4957
    9SiCr            90CrSi5
    Cr12MoV     D2      D2          SKD11 X165CrMoV12     BD2/BD2A    2235/Z160CDv12

    4Cr5Mo

    SiV1

        H13      H13             BH13
    42CrMo     4140    4140     42CrMo4     708M40                 42CD4 R683
    5CrW2Si             SCM440   45WCrV7          BS1



    Dimension sheet

    Steel Coil Sitting Machine knife
    Size (mm) OD (mm) ID (mm) Thickness (mm)
    80x40x6 80 40 6
    120x60x5 120 60 5
    150x60x8 150 60 8
    160x80x7 160 80 7
    180x90x10 180 90 10
    190x80x10 190 80 10
    200x100x8 200 100 8
    220x100x10 220 100 10
    220x120x10 220 120 10
    240x120x10 240 120 10
    250x160x12.5 250 160 12.5
    270x148x13 270 148 13
    280x160x13 280 160 13
    310x170x10 310 170 10
    320x180x16 320 180 16
    360x230x10 360 230 10
    380x240x30 380 240 30
    400x260x20 400 260 20
    460x320x20 460 320 20
    480x320x40 480 320 40
    540x320x40 540 320 40
    560x380x50 560 380 50
    600x380x60 600 380 60

    OEM and ODM accepted, special size as per confirmed drawing.

    Features & Benefits

    • High intensity
    • High precision
    • Wear resistance
    • High toughness
    • Excellent cutting quality
    • Long performance life

    Applications of our blades and knives

    • Metal industry to cut Silicon steel, SS, GI, HR, CR.
    • Steel coil slitting processing line
    • Cold-rolling plant
    • Paper industry
    • Textile industry

    Packing and Shipping

    Inside packing: Applied with anti-rust oil and then packed in plastic bag.

    Outside packing: Packed in plywood case.
