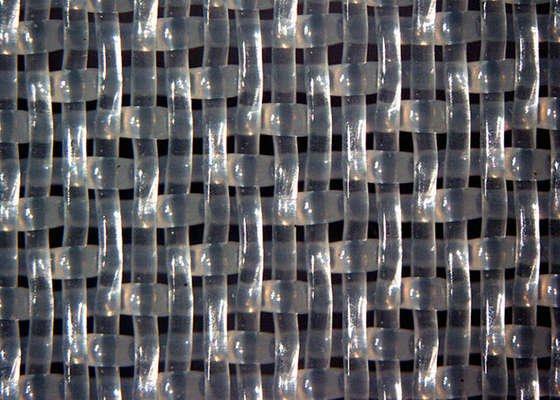

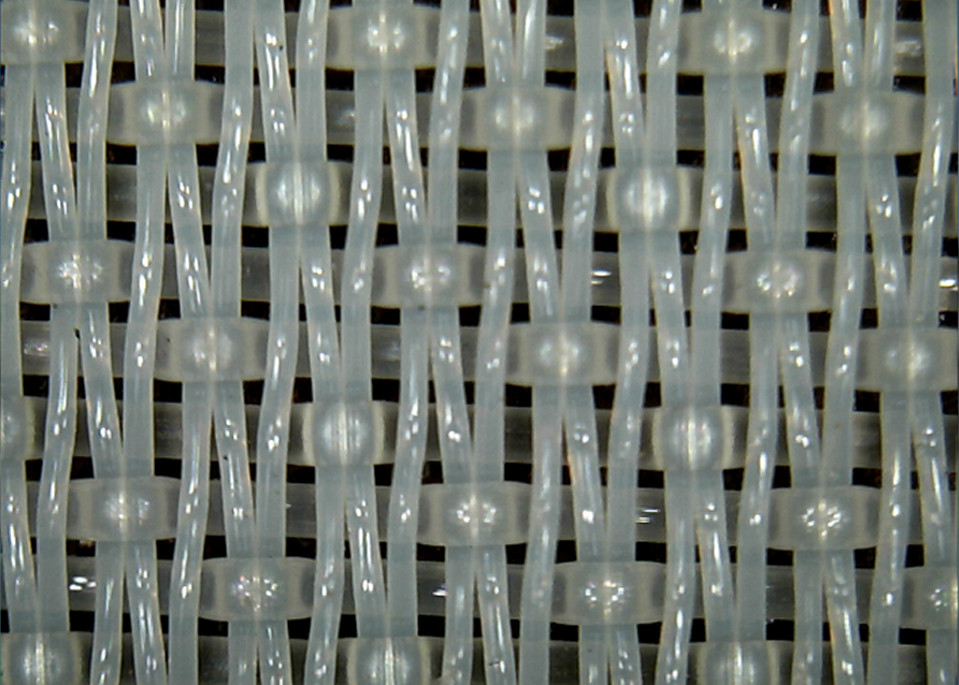

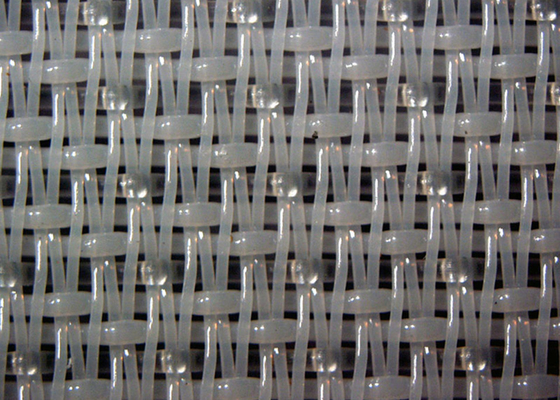

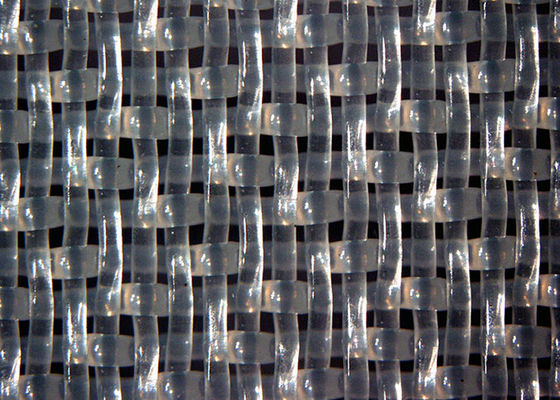

paper making endless joint polyester 4 shed single layer forming fabric

paper making endless joint polyester 4 shed single layer forming fabric

    • paper making endless joint polyester 4 shed single layer forming fabric
    • paper making endless joint polyester 4 shed single layer forming fabric
    • paper making endless joint polyester 4 shed single layer forming fabric
  • paper making endless joint polyester 4 shed single layer forming fabric

    Product Details:

    Place of Origin: Anhui,China.
    Brand Name: Sinostar
    Certification: ISO9001:2000,SGS.
    Model Number: polyester forming fabric

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 square meters
    Price: USD 10-25 square meter
    Packaging Details: Plastic bag inside and wooden crate outside
    Delivery Time: 20-25 work days
    Payment Terms: T/T or L/C, Western Union
    Supply Ability: 8000 square meters per month
    Contact Now
    Detailed Product Description
    Material: 100% Polyester Feature: Acid And Alkali Resistance
    Technic: Woven Application: Paper Making Industry
    OEM & ODM: Acceptable

    Paper making endless joint polyester 4 shed single layer forming fabric

    paper making endless joint polyester 4 shed single layer forming fabric

    Model of fabric:254010

    Structure:single layer forming fabric

    Warp diameter:0.2mm

    Weft diameter:0.4 mm

    Warp density:30 thread/cm

    Weft density:29.6 thread/cm

    Surface strength:≥700N/cm

    Jointing strength:≥450N/cm

    Air permeability (m3/m2h):475CFM

    Thickness:0.75mm

    Max. Elongation at 50N/cm:<0.6%



    Paper Machine Single Layer Polyester Forming Fabrics Series Products Parameters

    Weaving series

    and species

    Model of

    Fabric

    Thread

    Diameter

    (mm)

    Density

    (thread/cm)

    Strength

    (N/cm)

    Thickness

    (mm)

    Air

    Permeation

    m3m2/h

    Max.

    Elongation

    at 50N/cm

    Warp Weft Warp Weft surface jointing

    4-shed single

    layer fabric

    cxw25254 0.22 0.25 27-28 22-23 >600 >400 0.52 8000 <0.6%
    cxw25274-1 0.22 0.27 27-28 18-19 >600 >400 0.54 7800 <0.6%
    cxw25274-2 0.22 0.27 27-28 19.5-20.5 >600 >400 0.54 7500 <0.6%
    cxw27234-1 0.2 0.23 30-31 23.5-24.5 >600 >400 0.48 7500 <0.6%
    cxw27234-2 0.2 0.23 30-31 24.5-25.5 >600 >400 0.48 7000 <0.6%
    cxw27254 0.2 0.25 29.5-30.5 21.5-22.5 >600 >400 0.5 8000 <0.6%
    cxw27254-1 0.2 0.25 29.5-30.5 22.5-23.5 >600 >400 0.5 7500 <0.6%
    cxw27254-2 0.2 0.25 29.5-30.5 23.5-24.5 >600 >400 0.5 7000 <0.6%
    cxw27274 0.2 0.27 29.5-30.5 21-22 >600 >400 0.52 7800 <0.6%
    cxw27274-1 0.2 0.27 29.5-30.5 22-23 >600 >400 0.52 7300 <0.6%
    cxw28224-1 0.2 0.22 30.5-31.5 19-20 >600 >400 0.44 8500 <0.7%
    cxw28224-2 0.2 0.22 30.5-31.5 23-24 >600 >400 0.44 7500 <0.7%
    cxw29234 0.2 0.23 31-32 21-22 >600 >400 0.48 7500 <0.7%
    cxw29254 0.2 0.25 31-32 20.5-21.5 >600 >400 0.5 7000 <0.7%
    cxw31204-1 0.2 0.2 34.5-35.5 27.5-28.5 >550 >350 0.42 7500 <0.7%
    cxw31204-2 0.18 0.2 34.5-35.5 29-30 >550 >350 0.42 7000 <0.7%
    cxw31204-3 0.18 0.2 34.5-35.5 30-31 >550 >350 0.42 6500 <0.7%

    5-shed single

    layer fabric

    cxw28225-1 0.18 0.22 30.5-31.5 26-27 >550 >400 0.51 7500 <0.7%
    cxw28225-2 0.18 0.22 31.5-32.5 27-28 >550 >400 0.52 7300 <0.7%
    cxw31205-1 0.18 0.2 34-35 31-32 >550 >400 0.45 7200 <0.7%
    cxw31205-2 0.18 0.2 34-35 33-34 >550 >400 0.45 7000 <0.7%

    8-shed single

    layer fabric

    cxw25358-1 0.22 0.35 27.5-28.5 18.5-19.5 >650 >400 0.87 9000 <0.55%
    cxw25358-2 0.22 0.35 27.5-28.5 19.5-20.5 >650 >400 0.87 8500 <0.55%
    cxw25408 0.2 0.4 27.5-28.5 16.5-17.5 >700 >450 0.75 8500 <0.6%
    cxw27358-1 0.2 0.35 29.5-30.5 19.5-20.5 >650 >400 0.85 8500 <0.55%
    cxw27358-2 0.2 0.35 29.5-30.5 20.5-21.5 >650 >400 0.85 8000 <0.55%
      cxw254010 0.22 0.40 30.5-31.5 29-30 >700 >450 0.75 475CFM <0.6%



    Sinostar supply all kinds of paper and pulp machinery spare parts, our main products as following:



    • Paper machine clothing: forming fabrics, dryer screens, pulp washing fabrics, paper making felts,sludge dewatering belts, stainless steel wire mesh,etc.
    • Pulping equipments: screen baskets, screen plates, refiner plates,etc.
    • Pulp cleaner: high density cleaner, low density cleaner,Medium density cleaner, ceramic cone,etc.
    • Spray nozzle: flat fan nozzles,full cone nozzle, hollow cone nozzles, needle jet nozzles,low pressure misting nozzles, etc.
    • Blades and knives: doctor blades, paper cutting knives, slitter knives,steel rule blades, carton box slotting knife,packaging machine blades,etc.
    • Other paper machine spare parts: pulp rotors,pressure screens,suction cover box,plain bearings,etc.

    If you are interested in any our products, please contact us for more details.
