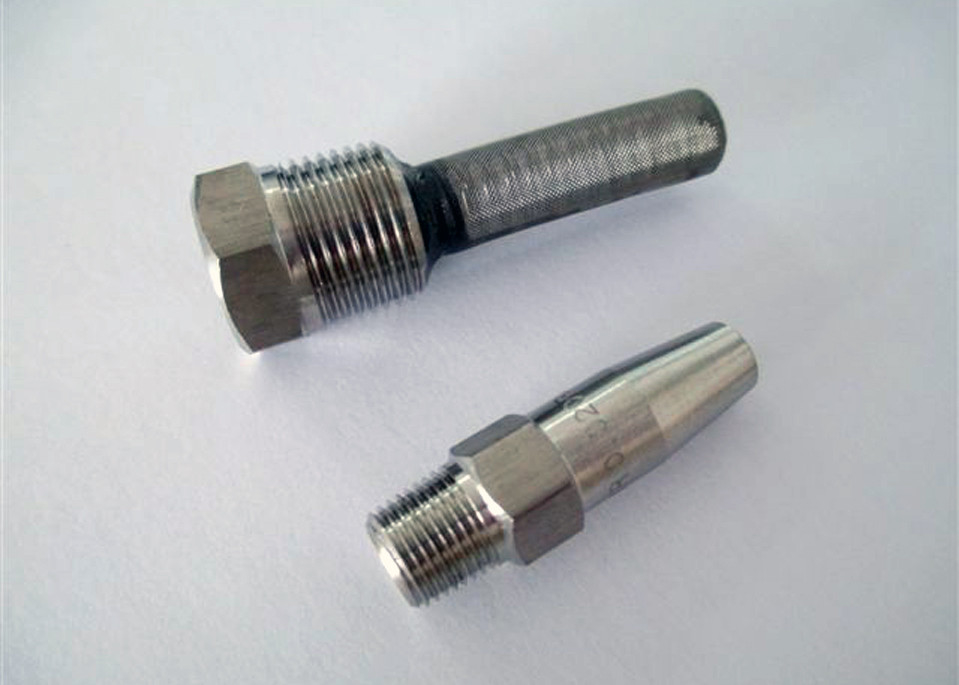

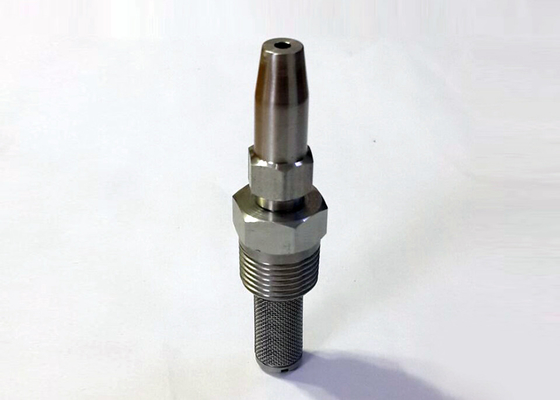

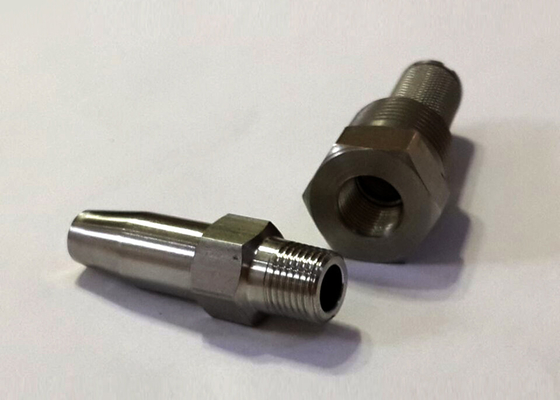

paper trimming stainless steel ceramic insert solid stream needle jet nozzle

paper trimming stainless steel ceramic insert solid stream needle jet nozzle

    • paper trimming stainless steel ceramic insert solid stream needle jet nozzle
    • paper trimming stainless steel ceramic insert solid stream needle jet nozzle
    • paper trimming stainless steel ceramic insert solid stream needle jet nozzle
  • paper trimming stainless steel ceramic insert solid stream needle jet nozzle

    Product Details:

    Place of Origin: Anhui, China.
    Brand Name: Sinostar
    Certification: ISO9001:2000
    Model Number: needle jet nozzle

    Payment & Shipping Terms:

    Minimum Order Quantity: 20 pcs
    Price: USD 2.5-8 piece
    Packaging Details: Export standard packing in plastic or carton box
    Delivery Time: 15-20 work days
    Payment Terms: T/T or L/C, Western Union
    Supply Ability: 20000 pcs per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Or Brass Thread: 1/8 Inch, NPT Or BSPT
    Orifice Diameter: 0.51mm Orifice Insert: Ceramic Or Rubby Insert
    Stainer: With Stainer Application: Pulp Jetting

    Paper trimming stainless steel ceramic insert solid stream needle jet nozzle

    paper trimming stainless steel ceramic insert solid stream needle jet nozzle

    paper trimming stainless steel ceramic insert solid stream needle jet nozzlepaper trimming stainless steel ceramic insert solid stream needle jet nozzle

    Specifications

    Material : Brass, stainless steel, SS, 303SS, 316SS, ceramic, ruby.

    Inch size : 1/8

    Thread : Male, female

    Insert : Ceramic, ruby

    Orifice : 0.38mm, 0.51mm,0.64mm,0.76mm,0.89mm,1.0mm,1.1mm,1.3mm,1.5mm.

    Stainer : with strainer

    Application : Used for pulp jetting

    orifice inserted

    brass trimming nozzle construction-1brass trimming nozzle construction-2

    Trimming nozzles Designs

    trimming nozzle design-1

    trimming nozzle design-2

    Trimming nozzles Dimensions

    Nozzle Type Material Inlet Conn.

    Length

    "L"(in)

    Dianmeter

    (in)

    Hex/Flats

    (in)

    trimming nozzle type-1

    303ss/316ss/brass Body

    Orifice insert

    316ss/ceramic



    3/8

    NPT/BSPT

    1.54 0.828 3/4
    trimming nozzle type-2

    303ss/316ss/brass Body

    Orifice insert

    316ss/ceramic

    1/8

    NPT/BSPT
    1.54 0.48 7/16
    trimming nozzle type-3

    303ss Body

    Orifice insert

    ruby

    1/8

    NPT/BSPT
    1.54 0.48 7/16
    trimming nozzle type-4

    303ss Body

    Orifice insert

    ruby

    1/8

    NPT/BSPT
    1.54 0.48 7/16
    trimming nozzle type-5

    303ss Body

    Orifice insert

    ruby

    1/8

    NPT/BSPT
    2.1 0.53 0.43
    trimming nozzle type-6

    303ss Body

    Orifice insert

    ruby

    1/8

    NPT/BSPT
    2.0 0.53 0.53
    trimming nozzle type-7

    303ss Body

    Orifice insert

    ruby

    1/8

    NPT/BSPT
    2.1 0.42 0.33

    Features

    • This kind of cutting nozzle is used for the trimming of the paper that supply a precise,clean cut.
    • It can produce a straight needle solid stream.
    • It can work at high pressure of 140bar.
    • The cutting nozzle orifice material we have the SS316 and ceramic.
    • Material description: CY38170 nozzle main body for the brass material, filter for stainless steel materials, the nozzle for ceramic inlay.

    Benefits

    • Suitable for most paper grades, wide ranges of configuration options.
    • Dual orifice version provides twin paralled solid stream sprays, reduces backsplash and simplifies spray alignments.
    • Higm-impact spray allows nozzles to be placed further away from the target for reduced buil-up on the nozzles.

    Our service

    • Reply your inquiry within 8 hours.
    • Commonly used samples can be free.
    • Delivery time within 7 days.
    • Best after sale service.
    • We accept return if the products is not right specification or damaged when arrived.
    • Payment Term:T/T , Western Union,Paypal.
    • Delivery Term: DHL/ UPS/FEDEX Express; Air/ Sea Transportation.
    • All products can be customised.

    Sinostar supply many spare parts for paper,packaging and printing industries,Our product range mainly including as following:

    • Paper machine clothing: forming fabrics, dryer screens, pulp washing fabrics, paper making felts,sludge dewatering belts, stainless steel wire mesh,etc.
    • Pulping equipments: screen baskets, screen plates, refiner plates,etc.
    • Pulp cleaner: high density cleaner, low density cleaner,Medium density cleaner, ceramic cone,etc.
    • Spray nozzle: flat fan nozzles,full cone nozzle, hollow cone nozzles, needle jet nozzles,low pressure misting nozzles, etc.
    • Blades and knives: doctor blades, paper cutting knives, slitter knives,steel rule blades, carton box slotting knife,packaging machine blades,etc.
    • Other paper machine spare parts: pulp rotors,pressure screens,suction cover box,plain bearings,etc.
