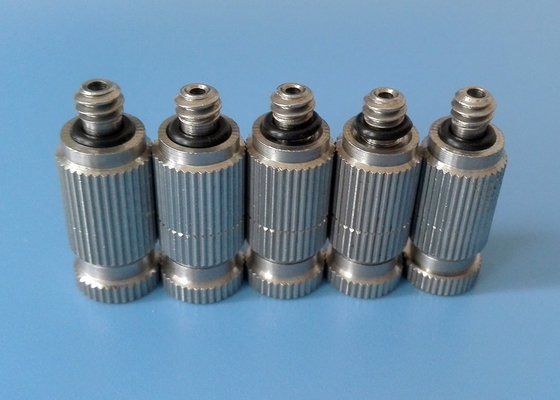

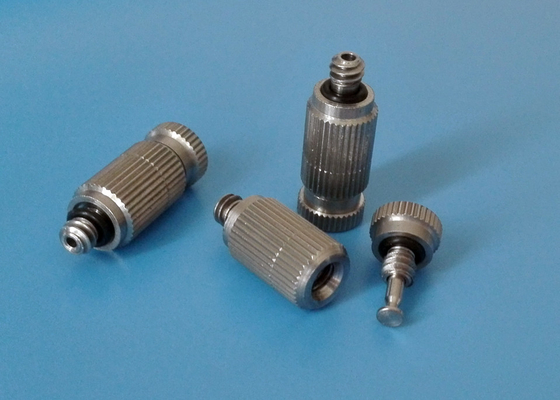

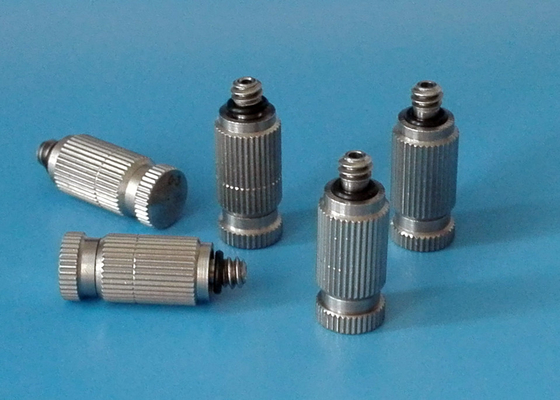

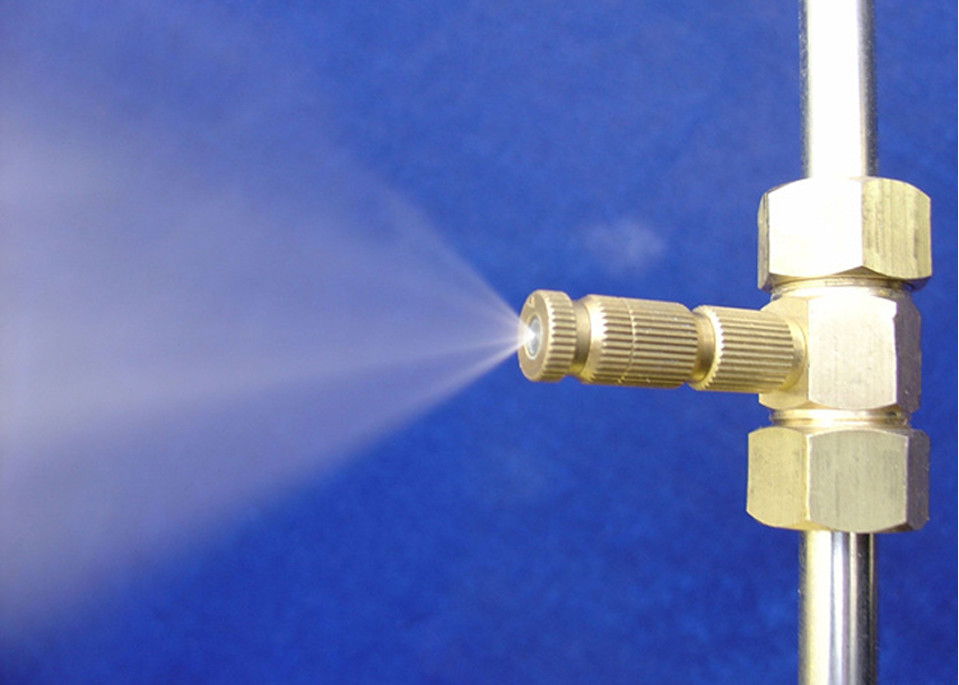

Greenhouse humidifying misting spray cooling system fog nozzle

Greenhouse humidifying misting spray cooling system fog nozzle

    • Greenhouse humidifying misting spray cooling system fog nozzle
    • Greenhouse humidifying misting spray cooling system fog nozzle
    • Greenhouse humidifying misting spray cooling system fog nozzle
    • Greenhouse humidifying misting spray cooling system fog nozzle
  • Greenhouse humidifying misting spray cooling system fog nozzle

    Product Details:

    Place of Origin: Anhui, China.
    Brand Name: Sinostar
    Certification: ISO9001:2000
    Model Number: cooling system fog nozzle

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: $2-5 per piece
    Packaging Details: Standard packing with carton box
    Delivery Time: 20-025 days after payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel, Brass Orifice Insert: Ceramic,stainless Steel, Ruby.
    Orifice Diameter: 0.10mm, 0,15mm, 0.20mm, 0.30mm,etc. Thread Size: 10/24, 12/24, 3/16, 1/8.
    Spray Angle: 60-80 Degree Working Pressure: Low Pressure
    Application: Cooling, Humidifying, Misting.

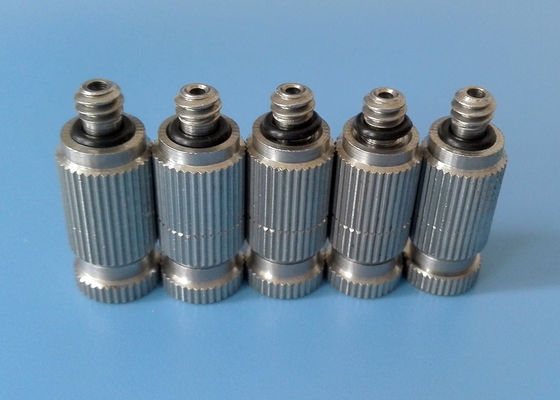

    Greenhouse humidifying misting spray cooling system fog nozzle

    Greenhouse humidifying misting spray cooling system fog nozzle

    Greenhouse humidifying misting spray cooling system fog nozzle

    Greenhouse humidifying misting spray cooling system fog nozzle

    Greenhouse humidifying misting spray cooling system fog nozzle

    Greenhouse humidifying misting spray cooling system fog nozzle

    Greenhouse humidifying misting spray cooling system fog nozzle

    Greenhouse humidifying misting spray cooling system fog nozzle

    Specifications

    Body Material: brass, 304ss or 316ss

    Spray orifice: SS, ceramic, ruby

    Thread: 10/24, 12/24

    Pressure: 20-70 bar

    Orifice: 0.1mm, 0.15mm, 0.2mm, 0.3mm, 0.4mm or 0.5mm



    Advantage

    • Detachable
    • Cleanable
    • No drip

    Applications

    • Wetting and rust removal
    • Humidify for space
    • Chemical treatment
    • Liquid coating
    • Fruit wax injection
    • Humidify for factory
    • Artificial fog

    Misting Nozzle Technical Data

    RELAB Fog Nozzle:
    Body Selection Spray Orifice Selection Flow rate (LPH/GPH)
    at different pressure values (bar/metric psi)
      Spray
    angle
    (°)
    Body Conn.
    thread size
    Body
    Material
    Order
    No.
    Orifice Material Orifice Diameter 10bar/150psi 45bar/650psi 70bar/1000psi 83bar/1200psi
    mm inch lph gph lph gph lph gph lph gph

    10/24unc-2A

    12/24unc-2A

    3/16unc-2A
    SS304

    SS316
    10 Ruby 0.1mm .004" N/A N/A 2.73 0.72 3.15 0.83 4.47 1.18 45-55
    15 0.15mm .006" N/A N/A 3.22 0.85 3.45 0.91 4.78 1.26 50-65
    20 0.2mm .008" 1.9 0.5 3.98 1.05 4.93 1.3 5.61 1.48 55-70
    30 0.3mm .012" 2.58 0.68 5.34 1.41 6.59 1.74 7.35 1.94 65-75
    40 0.4mm .016" 3.52 0.93 7.31 1.93 9.06 2.39 10.01 2.64 80-83
    50 0.5mm .020" 4.78 1.26 9.97 2.63 12.36 3.26 12.89 3.4 80-85


    Sinostar supply all kinds of paper and pulp machinery spare parts, our main products as following:



    • Paper machine clothing: forming fabrics, dryer screens, pulp washing fabrics, paper making felts,sludge dewatering belts, stainless steel wire mesh,etc.
    • Pulping equipments: screen baskets, screen plates, refiner plates,etc.
    • Pulp cleaner: high density cleaner, low density cleaner,Medium density cleaner, ceramic cone,etc.
    • Spray nozzle: flat fan nozzles,full cone nozzle, hollow cone nozzles, needle jet nozzles,low pressure misting nozzles, etc.
    • Blades and knives: doctor blades, paper cutting knives, slitter knives,steel rule blades, carton box slotting knife,packaging machine blades,etc.
    • Other paper machine spare parts: pulp rotors,pressure screens,suction cover box,plain bearings,etc.

    Our services

    • Reply your inquiry within 8 hours.
    • Commonly used samples can be free.
    • Delivery time within 7 days.
    • Best after-sale service.we accept return if the products is not right specification or damaged when arrived.
    • Payment Term:T/T , Western Union,Paypal.
    • Delivery Term: DHL/ UPS/FEDEX Express; Air/ Sea Transportation.
    • All products can be customised.

    Why choose us?

    • Sufficient support for our representatives.
    • OEM service available based on official & legal authorization.
    • Strict quality control system.
    • Faster lead time than our competitors.
    • Excellent quality with reasonable price.
    • Strong technical support.
    • Nozzle solutions to your particular requirements.
    • Sample is available with economic express fee.
    • 12 months quality guarantee after delivery.

    If you are interested in any our products, please contact us for more details.
