Flexible and durable doctor blade for flexo and gravure printing machine

Flexible and durable doctor blade for flexo and gravure printing machine

Flexible and durable doctor blade for flexo and gravure printing machine

Product Details:

Place of Origin: Anhui, China.
Brand Name: Sinostar
Certification: ISO, CE
Model Number: Dr blade-020

Payment & Shipping Terms:

Minimum Order Quantity: 1 box
Price: $75
Packaging Details: plastic box, wooden case.
Delivery Time: 15 days after payment.
Payment Terms: 100% T/T, Paypal or West Union.
Supply Ability: 500 boxes per month.
Contact Now
Detailed Product Description
Type: Doctor Blade Use: For Man Roland Printer
Printing Type: Screen Printing Machine Doctor Blade Material: Carbon Steel
Doctor Blade Width: 40mm Doctor Blade Lamella Edge Width: 1.3mm
Doctor Blade Thickness: 0.15mm Doctor Blade Lamella Thickness: 0.07mm
Doctor Blade Length: 100m Per Box Edge Type: Single Side Edge
Application: Flexo And Gravure Printing Machine Machine Speed: <200m/m
Shape Of Blade Edge: Lamella Edge

Flexible and durable doctor blade for flexo and gravure printing machine

Flexible and durable doctor blade for flexo and gravure printing machine

Material Carbon steel,stainless steel
Printing machine type Flexo and Gravure printing machine
Machine speed High speed / Medium speed / Low speed
Doctor blade width 10 / 22 / 30 / 35 / 40 / 50 / 60mm
Doctor blade width tolerance ± 0.100mm
Doctor blade lamella edge width 1.3 / 1.4mm
Doctor blade lamella edge width tolerance ±0.025mm
Doctor blade thickness 0.15 / 0.20mm
Doctor blade thickness tolerance ±0.005mm
Doctor blade lamella edge thickness 0.065 / 0.07 / 0.075 / 0.10mm
Shape of doctor blade edge Lamella edge, Bevel edge, Round edge.
Doctor blade lamella edge thickness tolerance ±0.003mm
Doctor blade hardness HV580-620
Doctor blade tensile strength 1950-2150Pa(1860N/mm2)
Doctor blade surface Bright polished
Straightness maximum deviation 0.5mm/3.0m
Contact edge roughness Rao.10 ±0.05um
Packaging 100m/box

Features and Benefits

  • Even scraping effect, high printing quality.
  • Doctor blade with small pressure.
  • High precision processing.
  • Doctor blade surface bright polished.
  • Elasticity is moderate, administrative levels feeling.
  • Docor blades are durable, long life ink scraper.

Applications

  • Gravure industry
  • Flexography industry
  • Printing industry
  • Paper making industry

 Doctor blade is widely used in gravure, flexography, coating and printing areas. It’s suitable for the speed more than 130m middle high-speed machine.

Doctor blades production process

Flexible and durable doctor blade for flexo and gravure printing machine

Flexible and durable doctor blade for flexo and gravure printing machine

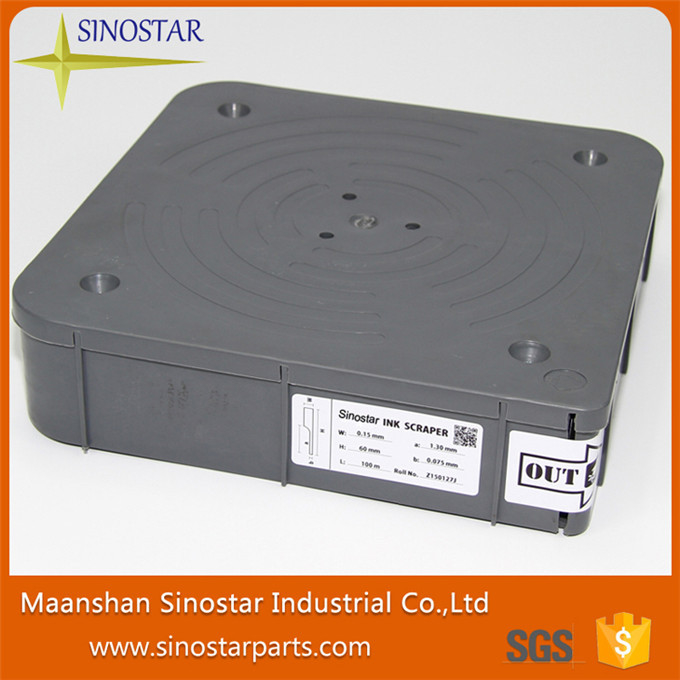

Packaging of doctor blades

Blades are available in pre-cut sizes of any length or in coils of 50m,100m and 200m.

Plastic box inside,and wooden case outside.

Flexible and durable doctor blade for flexo and gravure printing machine

Flexible and durable doctor blade for flexo and gravure printing machine

Flexible and durable doctor blade for flexo and gravure printing machine
