    Product Details:

    Place of Origin: Maanshan,China
    Brand Name: Sinostar
    Certification: ISO9001:2000
    Model Number: top and bottom slitter knife

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 10-35 usd / set
    Packaging Details: Export standard packing with wooden case.
    Delivery Time: 15 days after order confirmed.
    Payment Terms: T/T or L/C
    Supply Ability: 20000 sets per month
    Contact Now
    Detailed Product Description
    Material: HSS, Tungsten Carbide, SKD-11,etc. Size: As Per Drawing.
    Application: Paper Slitting Machine.

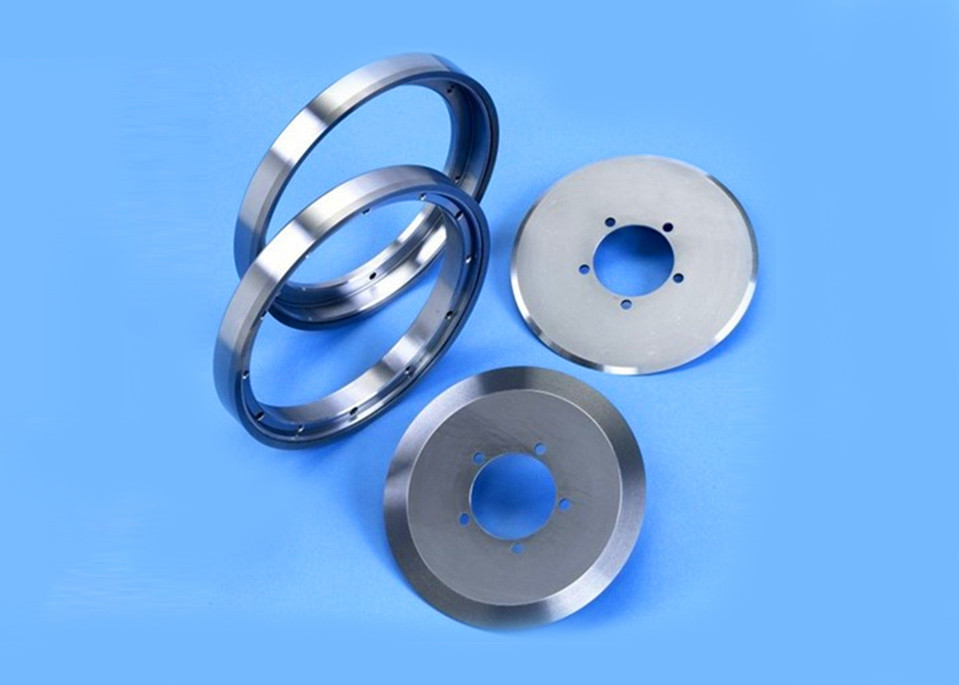

    Carbide circular dished top slitter knife round bottom slitter knife

    carbide circular dished top slitter knife round bottom slitter knifecarbide circular dished top slitter knife round bottom slitter knifecarbide circular dished top slitter knife round bottom slitter knifecarbide circular dished top slitter knife round bottom slitter knifecarbide circular dished top slitter knife round bottom slitter knife

    carbide circular dished top slitter knife round bottom slitter knife

    Slitter knives consists top slitter blade and bottom slitter blade using for machinery cutting processing.

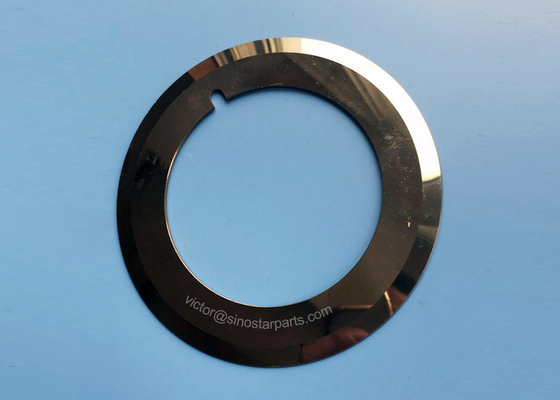

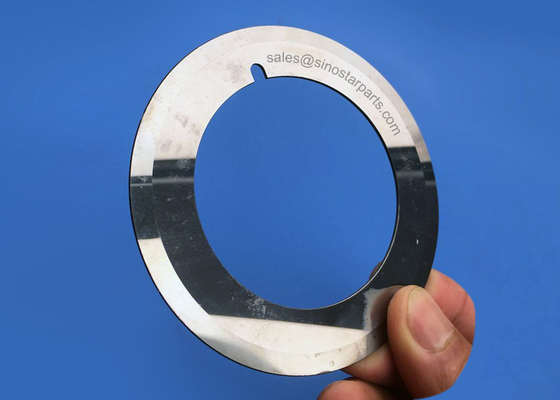

    The top slitter blade can be dish shaped or flat shaped with single, double beve(edge)or square edged.

    For the score cutting, there are only one blade works as the roll or sleeve stand as the bottom blade.

    Besides some of our customers also called top slitter blade as male or front blades.

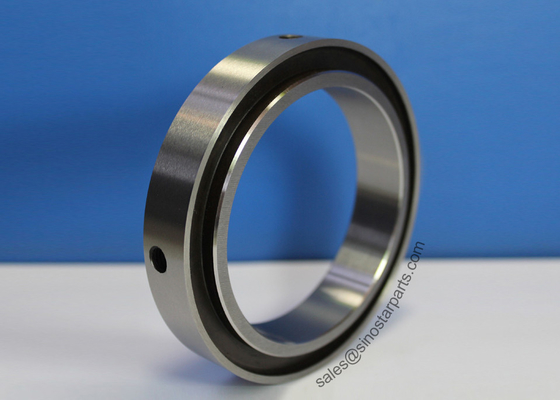

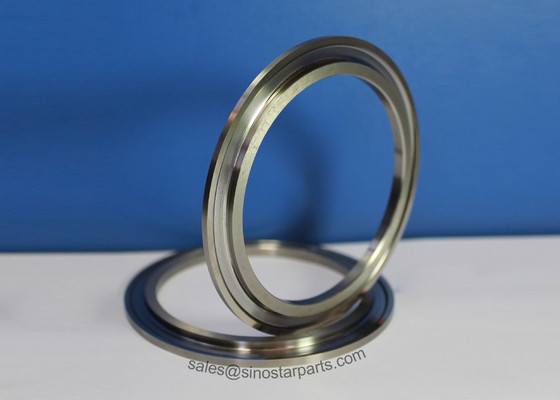

    The bottom slitter blade may also have many types including multigroove bottom slitters, single and double edge bottom sitters, square edge cutters, solid or tipped carbide bottom knives and cutters etc.



    Specifications & Characteristics

    Material : Tungsten carbide steel, HSS, SKD-11, etc.

    Condition: New                                                Type: Machining parts

    Plating: Hard coating (TiN CrN TiAIN)             Usage: Slotting,cut-off

    Hardness: HRC 40-68                                      Shape: Round

    Thickness range: 0.10 - 6.0 mm                   Precision: more or less 0.02 mm

    Sharpness: 18-30 N                               Edge trimming: NC grinding



     High intensity, high hardness, high wear resistance,high toughness,

     Professional Grinding & Heat Treating Processing.

    Features & Benifits

    • Availability
    • Durability
    • Rust resistance
    • Cutting process
    • Costs
    • Edge geometry
    • Wear resistance
    • Excellent cutting quality
    • stable and reliable cutting performance
    • Long length blade provided

    Applications of our blades and knives

    Paper Cutting

    Extrusion/Cut-off

    Slicing

    Pipe Cutting

    Plastic

    Printing

    Rubber

    Sign Making



    Slitter knife parameter sheet

    Upper knife Bottom knife
    Specifications
    (mm)
    OD
    (mm)
    ID
    (mm)
    Thickness
    (mm)
    Specifications
    (mm)
    OD
    (mm)
    ID
    (mm)
    61x40x1 61 40 1 70x45x8/10 70 45
    68x40x1 68 40 1 80x60x8/10 80 60
    68x46x0.5 68 46 0.5 92x65x8/10 92 65
    70x40x1 70 40 1 108x80x8/10 108 80
    75x45x1 75 45 1 118x65x8/10 118 65
    98x66x1 98 66 1 70x45x3/5 70 45
    100x66x1 100 66 1 76x45x8/10 76 45
    102x75x1 102 75 1 80x55x3/5 80 55
    102x70x1.2 102 70 1.2 105x76x10/10 105 76
    105x70x1 105 70 1 80x50x8/10 80 50
    118x80x1 118 80 1 90x65x8/10 90 65
    105x75x1.2 105 75 1.2 118x80x8/10 118 80
    130x90x1.2 130 90 1.2 150x120x13/15 150 120
    140x95x1.2 140 95 1.2 Order Information
    140x90x1 140 90 1
    140x95x1 140 95 1 1.All sizes according to your requirements
    100x70x1.2 100 70 1.2
    100x75x1 100 75 1
    90x60x1.2 90 60 1.2 2.Please send us your drawing.
    130x80x1.2 130 80 1.2
    142x116x1.2 142 116 1.2
    130x100x1.2 130 100 1.2 3.Sample available.


    For more details, please find us as below:

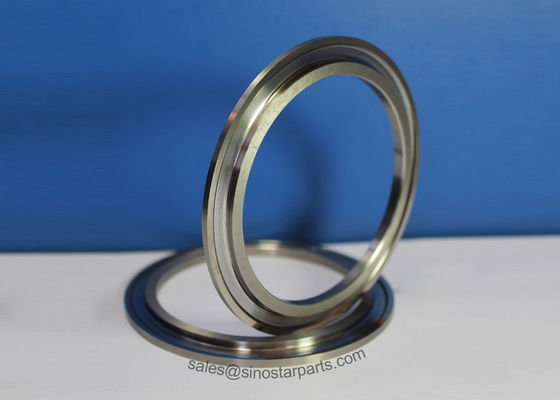

    carbide circular dished top slitter knife round bottom slitter knife
